３８
5. Maintenance (continue)
Be sure to read and understand on the page 3 to 7 “For safety operation” carefully before use
Inspecting the collecting electrode
Import
ant
●The metallic side plates are very slippery due to oil on their surfaces. So, please be very careful not to cut
your finge
rs etc. on the edges at bends in them.
●To work with the collecting unit, use appropriate protective wear.(such as rubber gloves, protec
tive
glasse
s), and devices.
●Before opening the inspection door or electrical equipment cover, turn off the power supply to the mist
collector.
●In order to operate the mist collector at the designed performance, install all collecting units correctly.
(such as eliminator and electrodes.)
●Be sure to use Amano's genuine parts of collecting unit. The collecting unit for other model cannot
be
us
ed for this mist collector.
●
1 Opening the inspection door
Unscrew the hexagon bolt fixed inspection door and open the inspection door.
●

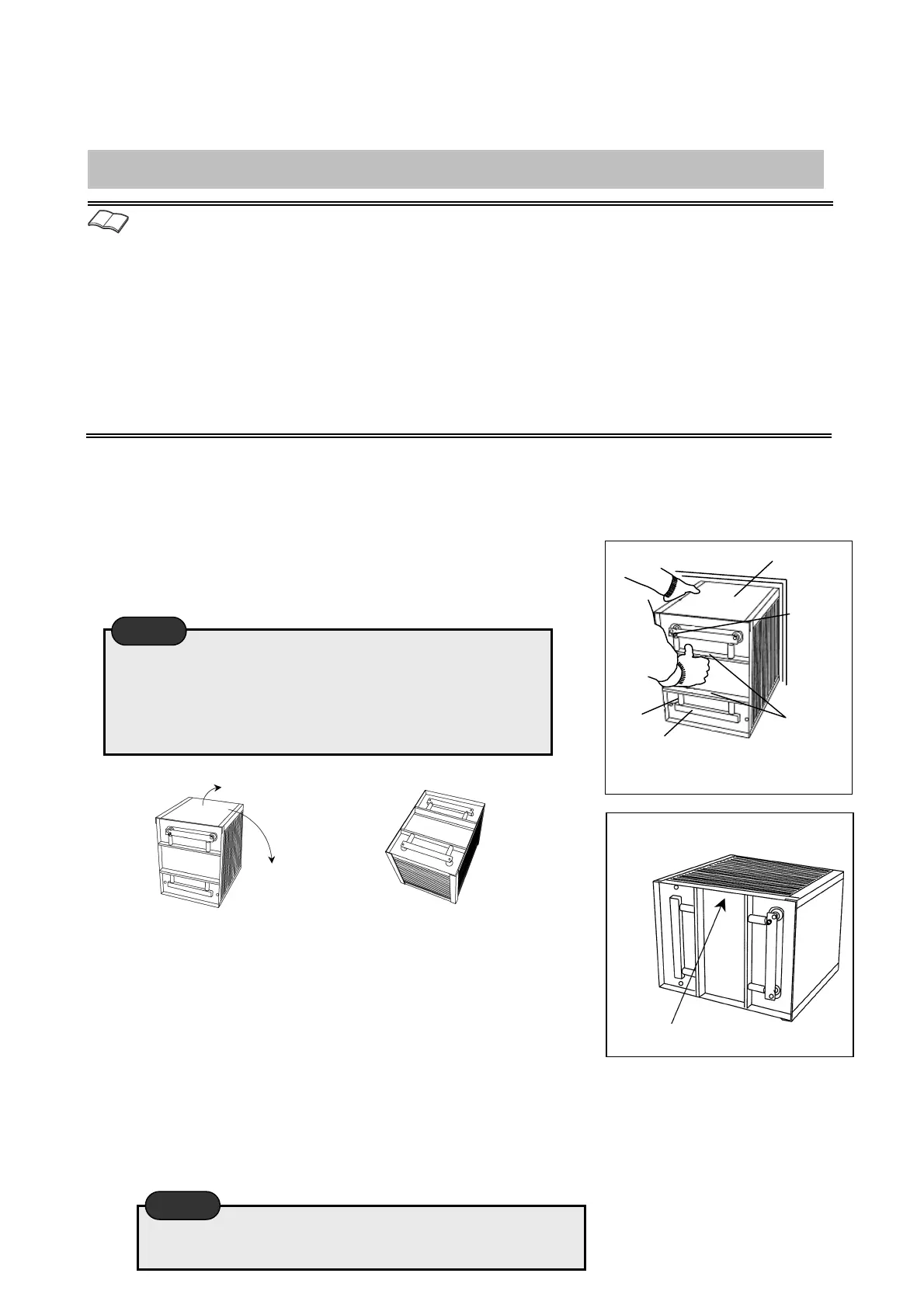

2 Pulling out the collecting electrode
Put your fingers on the folded edge of the metal plate ("insulator
support" or "frame") and pull it out gently.
●
3 Inspecting the collecting electrode
Check it for contamination, deformation and breakage. If the contamination
is at unallowable level, clean the collecting electrode following the
procedure given in the next section. If any deformed or broken part is
detected, replace the collecting electrode with a new one.
●
4
Installing the collecting electrode and
shutting the inspection door
When installing the electrode in the main body, gently put it along the guide so
that the guide with the feed spring comes forward (on the side of inspection
door), and that the feed spring faces the upper left. Then shut the inspection
door after installing the electrode.
Pull the collecting electrode gently.
Frame
Insulator
support
Insulator
Feed plate
Feed
s
rin
When you carry the pulled-out collecting electrode, lay it down so
that each side of the electrode faces up and down. If you turn i
over vertically, you cannot put your fingers on the "frame".
t this
time, if you hold "power feed plate" or "insulator", the electrode
could be deformed or the insulator may be damaged.
Caution
If the specification of opposite direction of airflow, the insertion
direction is also o
osite.
Caution
Lay position
Hold the flame when carrying.
× Do not carry it in vertical position.
○ Lay it down.
× When turned vertically
