Malfunctions
25
AMADOS
+
DB 1001 01.04

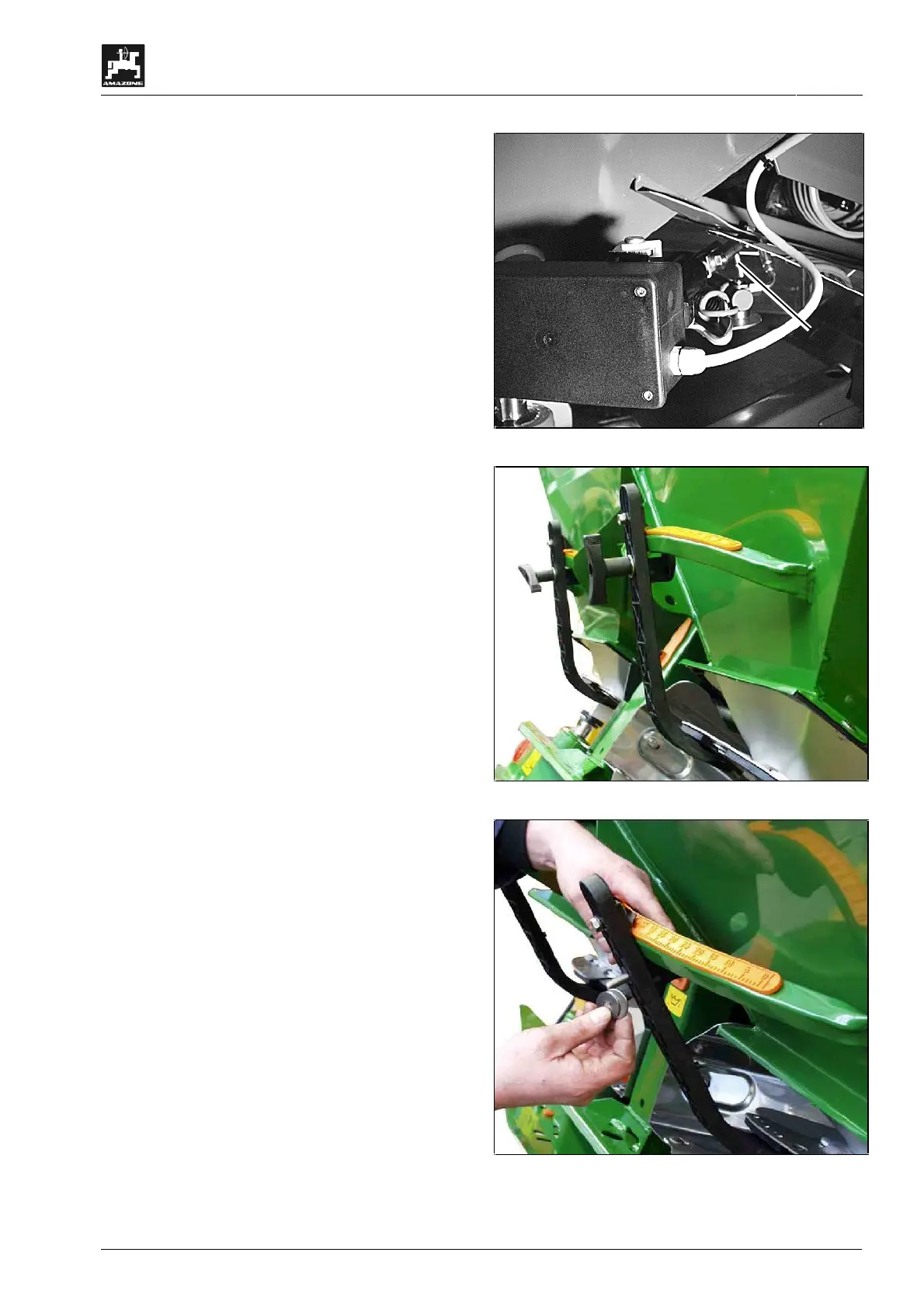

- Then properly affix the setting motor with the un-
hooked setting spindle again in the motor retainer.
I
Secure the unhooked setting spindle (Fig.
7
/1) with fixing aids from swivelling into
the operational range of the hydraulic ram.
Fig. 7
- Install the clamping device (Fig. 8/1) for the meter-
ing shutter lever (Fig. 8/2 as follows:
- Remove thumb nut (Fig. 8/3)
Remove the pins
and exchange the
position of the two washers
(Fig. 8/4) from the rear (Fig. 8
/5) to the front
(Fig. 8/6) (Fig. 9).
Fig. 8
Fig. 9
