Malfunctions
AMADOS
+
DB 1001 01.04
6. Malfunctions
6.1
Operation of the broadcaster in
the event of electrical failure
In the event of electrical faults occurring on the com-
puter AMADOS
+
or the electrical setting-
motors, the
operation can be continued even if the fault cannot
be remedied straight away.

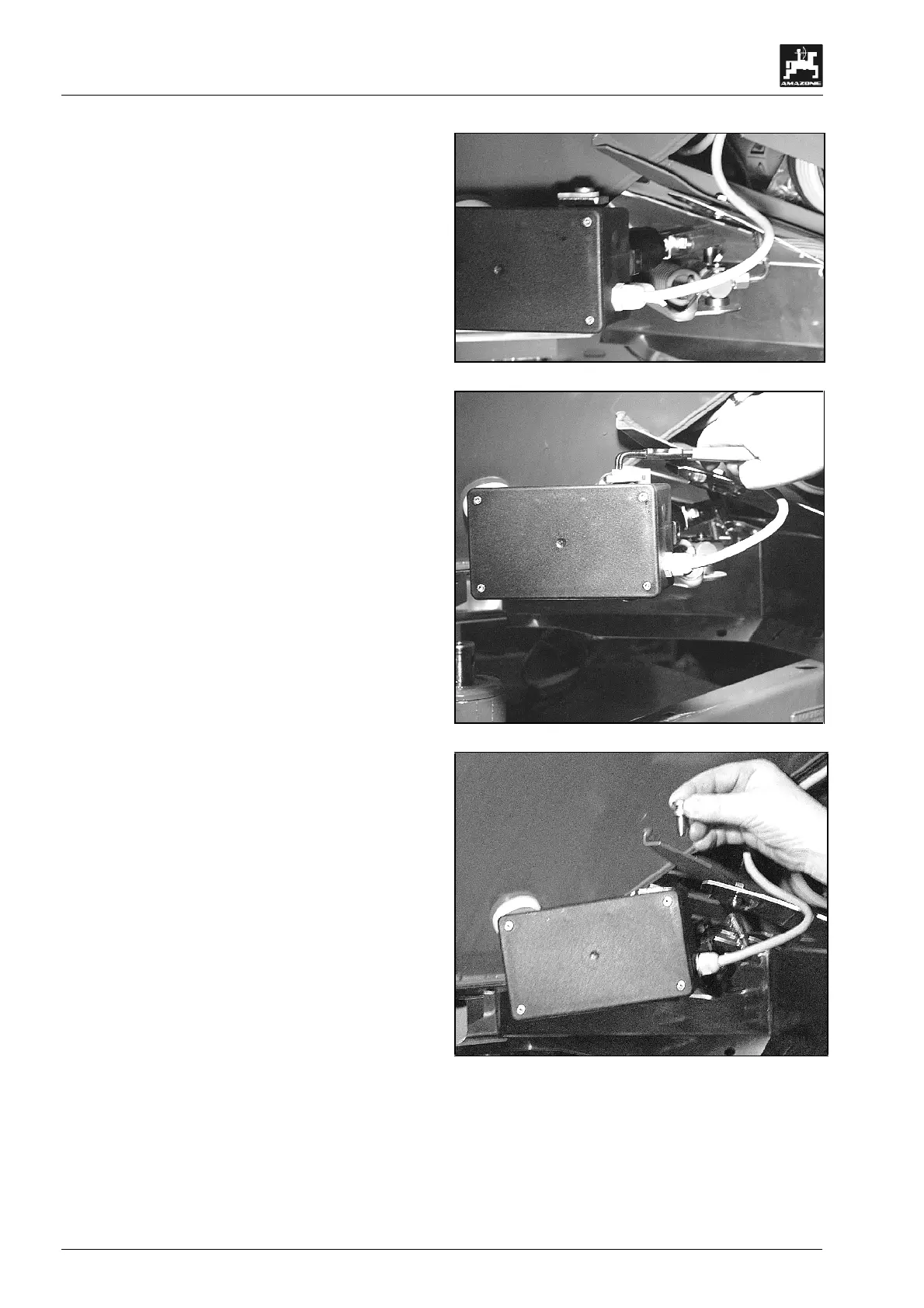

For this disconnect the plug connection (Fig. 4
/1)
between setting motor (Fig. 4/2) and metering shutter
Fig. 4
- Remove the two circlips (Fig. 5
/1) by using circlip
pliers (Fig. 5/2).
Fig. 5
- Pull off the two hinge pins (Fig. 6/1).
- Remove the setting motor from the motor retainer.
- Lift the setting motor and unhook the setting spin-
dle from the plug connection of the setting lever.
Fig. 6
