Coupling and uncoupling the implement
Citan 12001-C/15001-C BAH0094-3 12.2019 105

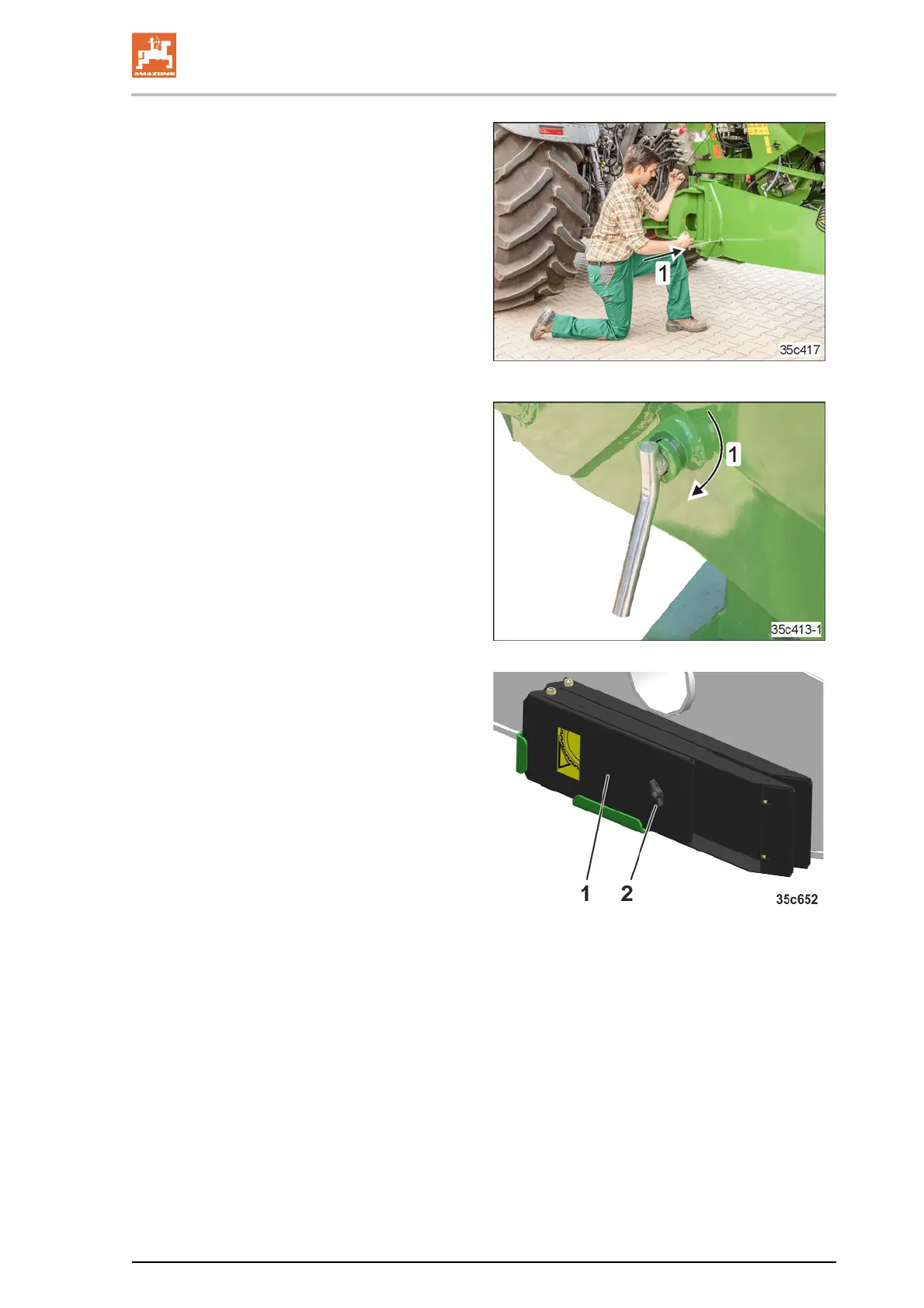

13. Unlock the pin.
13.1 Turn the locked pin (Fig. 115/1) by
180
°
until the clamping sleeve (see
Fig. 116/1) is released.
14. Hold onto the cable pull (Fig. 117/1) and
pull out the pin (Fig. 116/2).
15. Pull up the jack using the cable pull and peg
the position with the pin.
Fig. 117
16. Lock the pin by turning (see Fig. 115).
17. Check the function of the braking and
lighting system.
18. Stow the wheel chocks (Fig. 119/1) in the
brackets and secure with a wing nut (Fig.
119/2).
19. Before commencing a run, perform a
braking test.
Fig. 118
Fig. 119
