8.8.2.1 Setting the exact following harrow pressure (hydraulic adjustment)
WARNING
Direct people out of the danger area.
The exact following harrow pressure is adjusted
centrally via a hydraulic cylinder that is connect-
ed to the control unit together with the hydraulic
coulter pressure adjustment.
When increasing the coulter pressure by actuat-
ing the blue control unit, the exact following har-
row pressure increases automatically.
1. Insert one pin each under and over the
lever into the adjuster segment and secure
it with spring cotter pins.
2. The higher the pins are inserted in the
adjustment scale (Fig. 190/1+), the greater
the exact following harrow pressure.

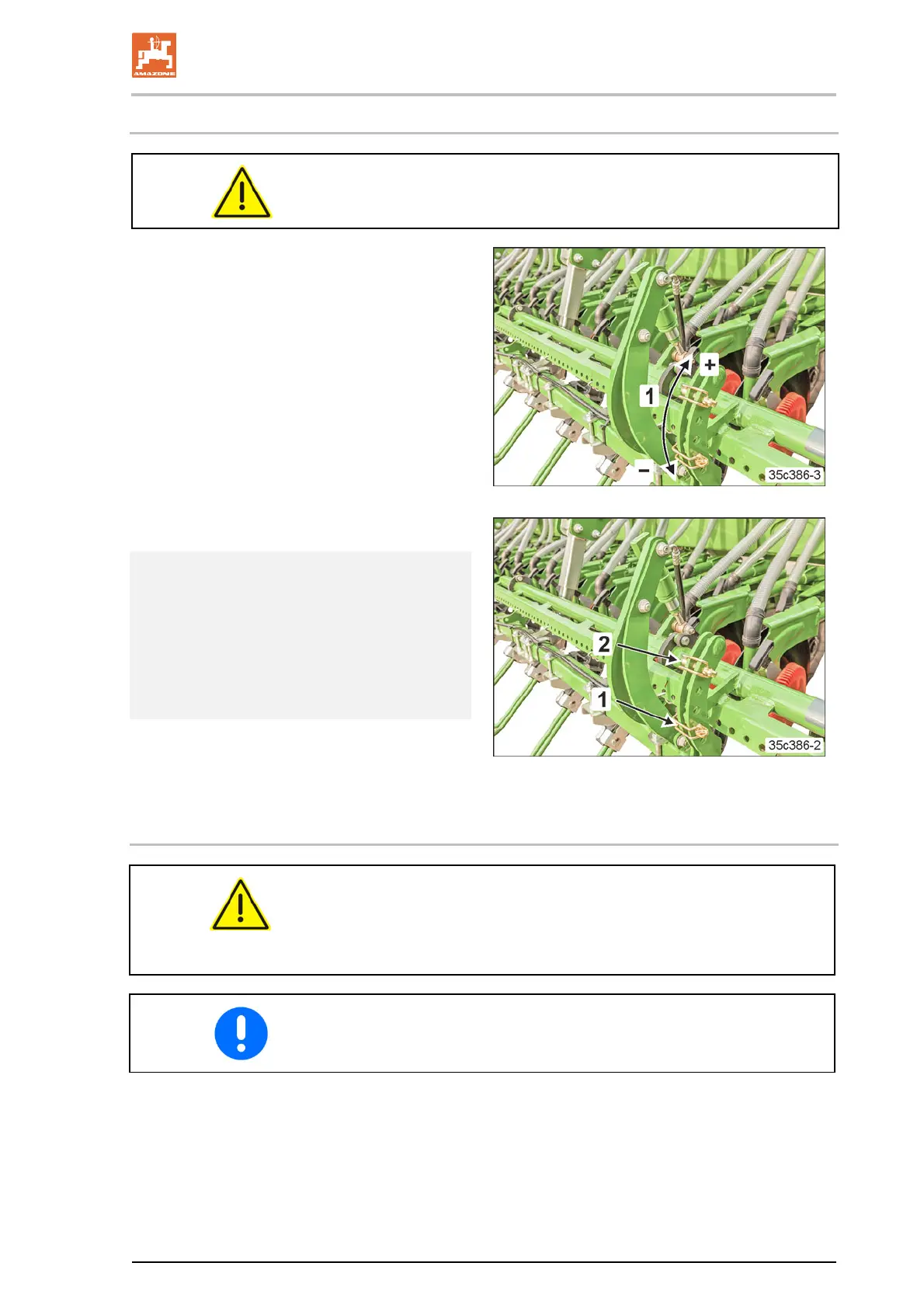

Fig. 190
Fig. 191
 Lever in position 1 (Fig. 191/1)
 Exact following harrow works with normal
pressure.
 Lever in position 2 (Fig. 191/2)
 Exact following harrow works with in-
creased pressure.
8.9 Roller harrow
DANGER
Carry out the adjustments only with the tractor PTO shaft shaft
shut off, the tractor parking brake applied, the engine shut off
and the ignition key removed!
Check the work results after each adjustment.
