Use of the implement
Citan 12001-C/15001-C BAH0094-3 12.2019 175

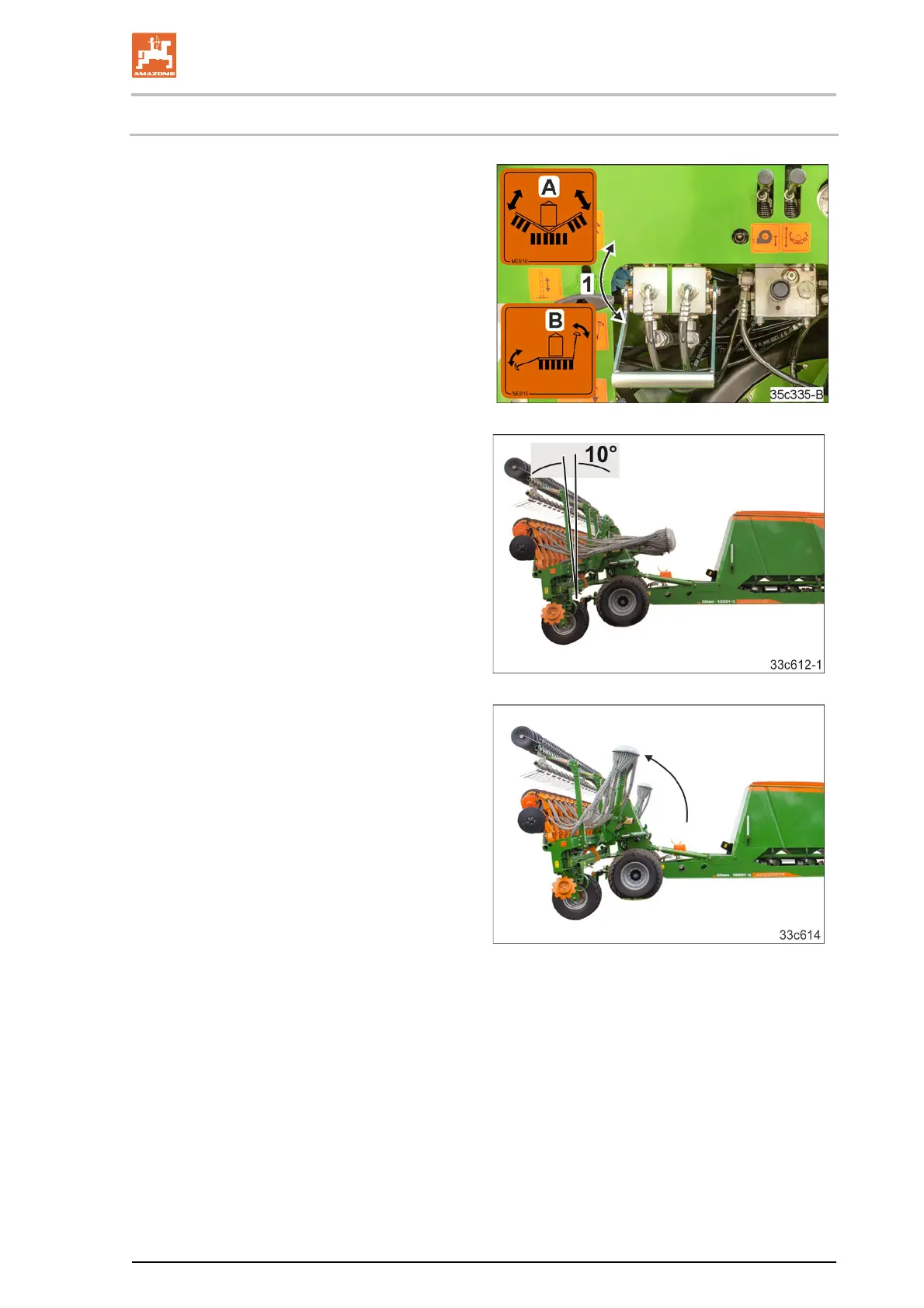

10.1.2 Folding the implement sections
1. The valve lever (Fig. 228/1) is in position
"B".
2. Keep actuating the green 2 control unit until
both track markers are folded (parking
position).
3. Set the valve lever (Fig. 228/1) to position
"A".
Fig. 228
4. Keep actuating the green 1
control unit until
the rear frame is approx. 10° before the
vertical position (see Fig. 229).
Actuation of the yellow control unit causes
the star wheel and the tractor wheel mark
eradicator to be lifted
Fig. 229
5. Fold the implement sections.
Keep actuating the green 2 control unit until
 the distributor heads are folded (see
Fig. 230)
 the implement sections (Fig. 231/1)
are resting on the skids (Fig. 231/2) of
the lock hooks.
Fig. 230
