10.4.2 Move the tramline markers to the transport position
1. Direct people out of the swivel area of the
track marker and the tramline marker.
2. The control terminal may not display the
symbol for creating tramlines.
3. Actuate the tractor control unit (yellow 1) to
lift the track disc carrier.
4. Apply the tractor parking brake, switch the
tractor engine off and remove the ignition
key.

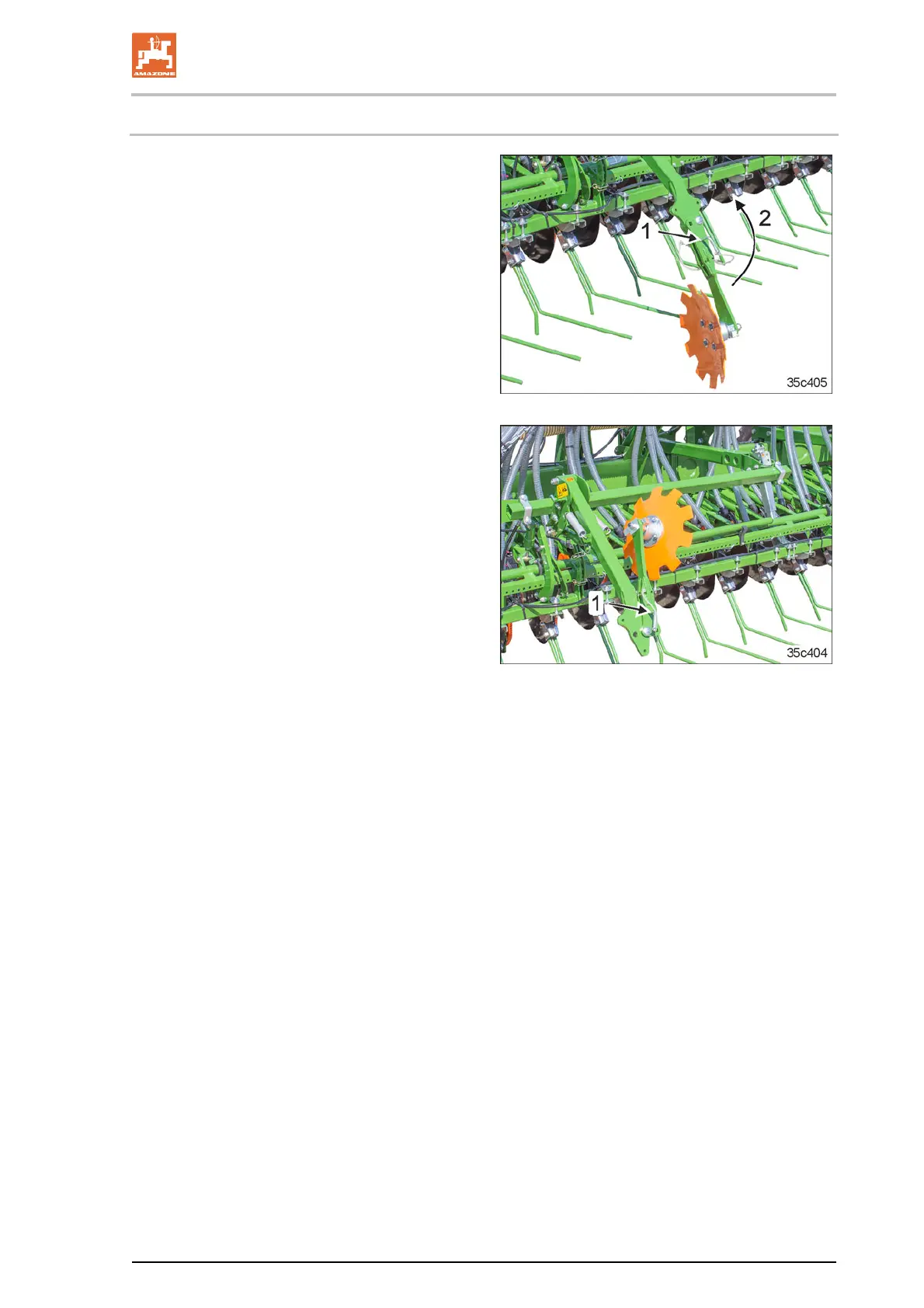

Fig. 241
5. Pull out the pin (Fig. 241/1) and fold the
section (Fig. 241/2) with the track disc into
transport position.
In transport position, both sections may on-
ly be folded towards the middle of the im-
plement and secured with the track disc
carriers.
6. Secure the connection by inserting the pin
(Fig. 242/1) and locking it.
7. Repeat the setting on the second boom.
Fig. 242
