settings
152 Citan 12001-C/15001-C BAH0094-3 12.2019
8.9.1 Setting working depth and pitch of harrow tines
1. Raise the implement only until the harrow
tines are directly above the ground, but not
touching it.
2. Apply the tractor parking brake, switch the
tractor engine off and remove the ignition
key.
3. Hold the harrow tines beam by the carrier
handle (Fig. 192/3).
4. Set the working depth of the harrow tines by
positioning the carrying arm with the pin
(Fig. 192/1)
in all segments
in the same hole.

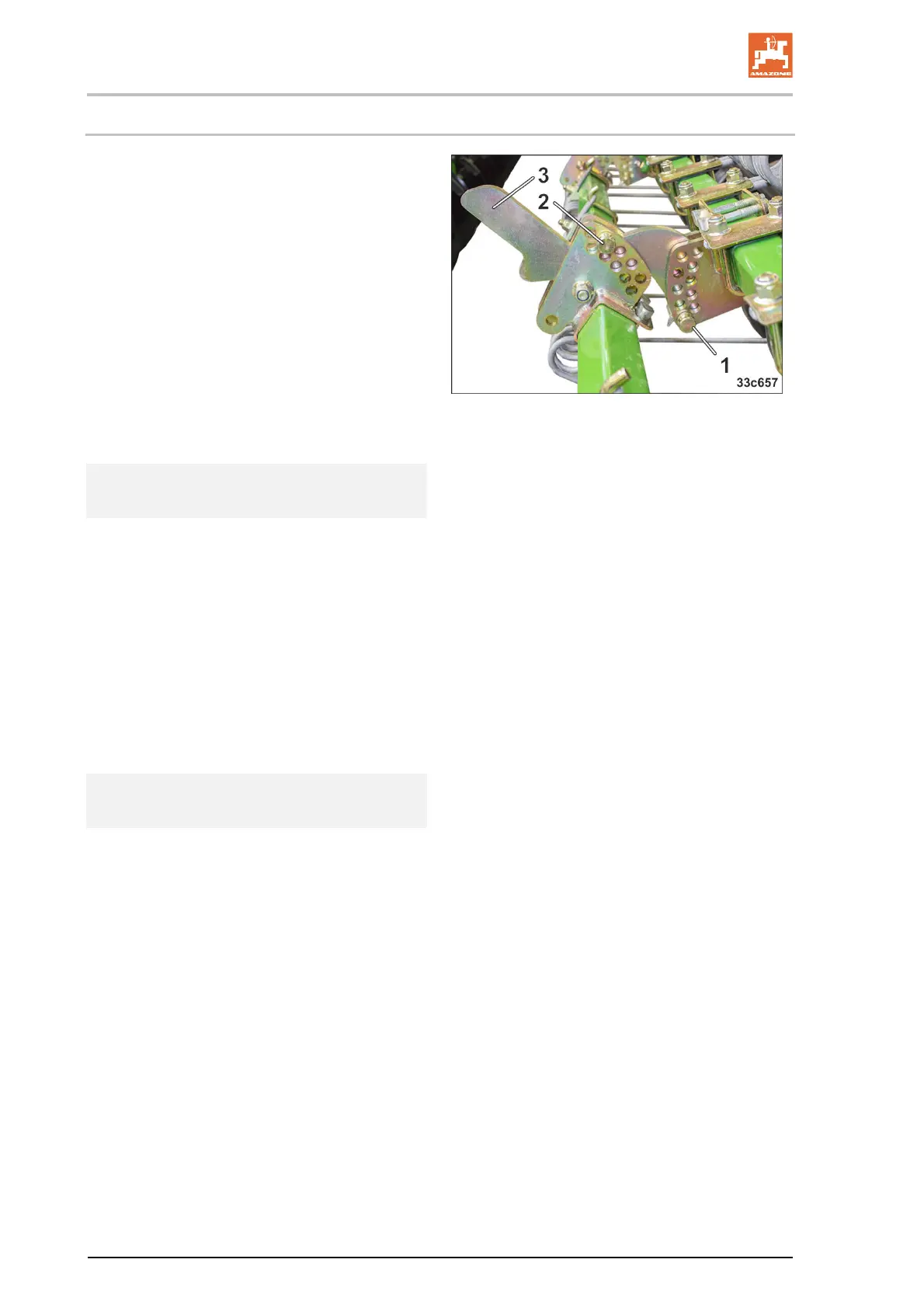

Fig. 192
The lower the pin is inserted in the adjuster
segment, the greater the working depth.
5. After each repositioning, secure the bolt
with a spring cotter pin.
6. Change the pitch of the harrow tines to the
ground by repositioning the pin (Fig. 192/2)
in all segments
in the same hole.
Ensure that the pin (Fig. 192/2) is posi-
tioned below the carrier (Fig. 192/3) in the
adjuster segment.
The lower the pin (Fig. 192/2) is inserted in
the adjuster segment, the flatter the pitch.
7. After each repositioning, secure the pin
(Fig. 192/2) with a spring cotter pin.
