1. Start the blower fan and allow to rotate with
3500 rpm.
2. Undo the lock nut of the pressure relief
valve (Fig. 176/1) and unscrew the adjust-
ment screw.

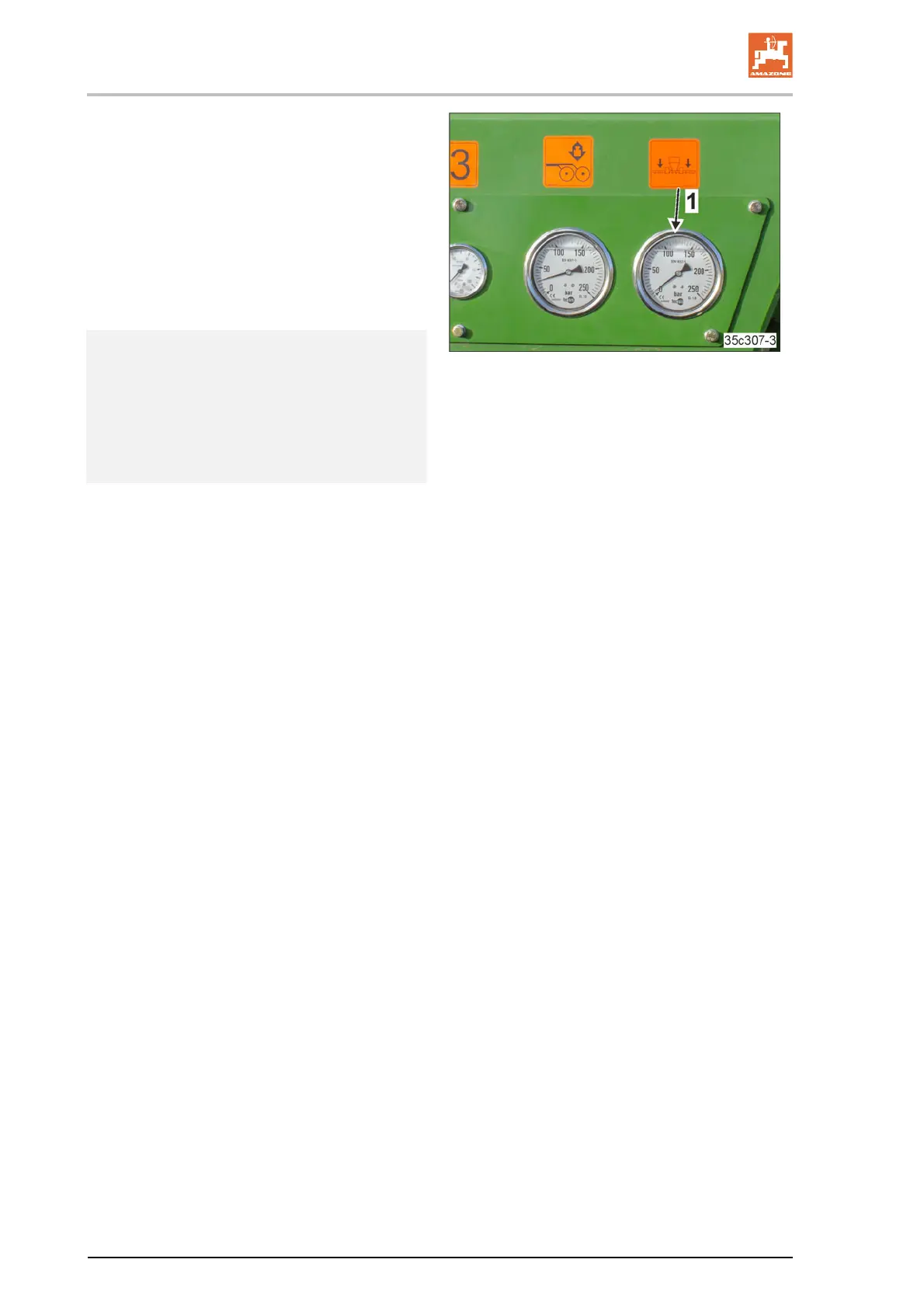

ï‚® The pressure gauge for loading the sections
(Fig. 177/1) is now at 0 bar.
3. Screw in the adjustment screw of the
pressure relief valve (Fig. 176/2) until the
pressure gauge displays 40 bar.
Fig. 177
3.1 The booms move up on the outside:
Increase the pressure on the booms
by 5 bar.
3.2 Support wheels of the booms are
exposed to high loads:
Reduce the pressure on the booms by
5 bar.
4. The pressure gauge (Fig. 177/1) shows the
set section pressure.
5. Tighten the lock nut.
