AMBROGIO BASIC - EQUIPMENT INSTALLATION PLANNING

- 12 -
C141501700.fm
User's manual
GB
Robot installation does not involve inter-
ventions that are difficult to carry out,
but requires a minimum of preliminary
planning to define the best area to install
the charging station, power supply-trans-
mitter group and to lay out the perime-
ter wire.

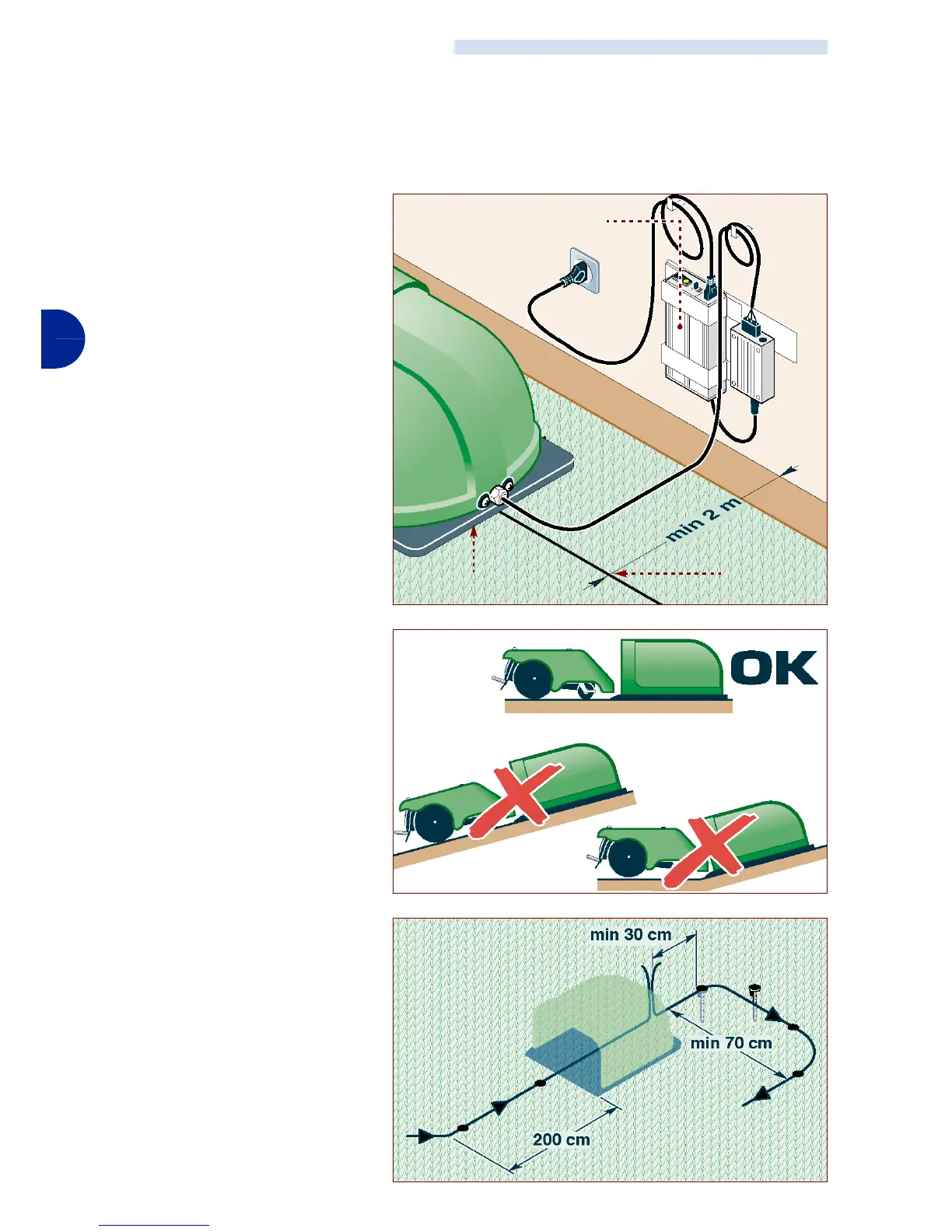

Power supplier-transmitter
group and recharging station in-
stallation area
– Power supplier-transmitter
group and recharging station
must be installed inside the
main work area and near to
each other.
– The recharging station must be
positioned on a flat and stable
surface and able to guarantee
good drainage to avoid flooding.
– The section of input wire must
be rectilinear and aligned per-
pendicularly to the recharging
station for at least 2 m and the
output section must be located
at least 30 cm from the re-
charging station; this makes it
possible for the robot to enter
correctly.
EQUIPMENT INSTALLATION PLANNING
IDM - 41501700500.tif
power supply-transmitter unit
perimeter wire
wire laying direction
IDM - 41501700500.tif
Reload station
perimeter
wire
power supply-
transmitter unit
power supply-transmitter unit
IDM - 41501700600.tif
power supply-transmitter unit
IDM - 41500902400.tif
