User's manual
GB
1-Before assembling and/or re-
placing the blade, make sure
that the robot has been
stopped in safety conditions
(see "Robot safety stop").
2-Turn the robot upside down
and put it down so not to ruin
the covering hood.
Important
Use protection gloves to avoid
the risk of cuts on hands.
3-Assemble the blade (A).
4-Tighten screws (B).
5-Adjust the cutting height (ee
"Adjusting the cutting height").
6-Capsize the robot in its functioning
position.
The robot can be energized with
two lead batteries or with one or
two lithium batteries.
Install the batteries as shown.
1-Undo the knobs (A).

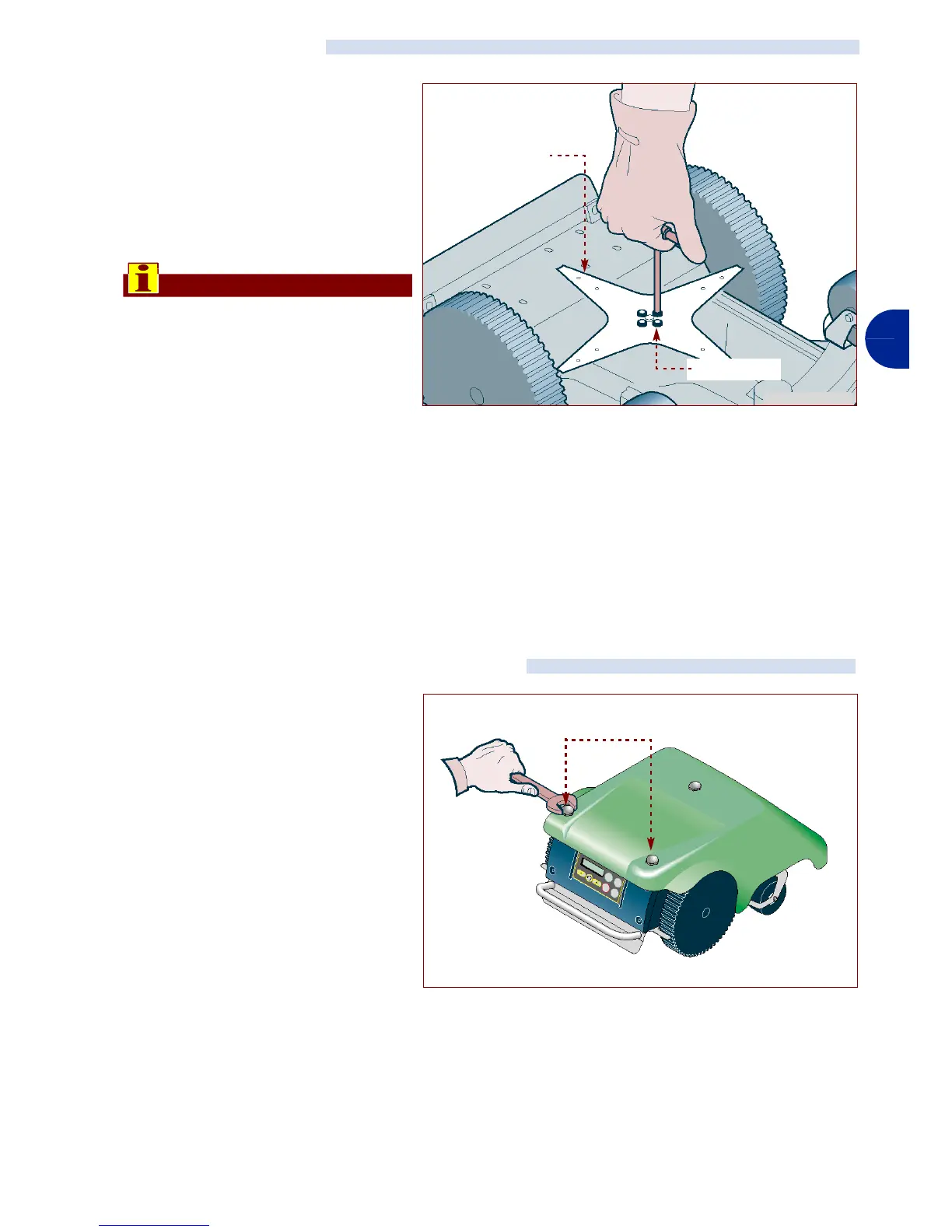

BLADE INSTALLATION
BATTERY INSTALLATION AND CONNECTION
IDM - 41501702900.tif
blade (A)
screws (B)
IDM - 41501701900.tif
Recharging knobs (A)
