AMBROGIO BASIC - BATTERIES REPLACEMENT

- 56 -
C141501700.fm
User's manual
GB

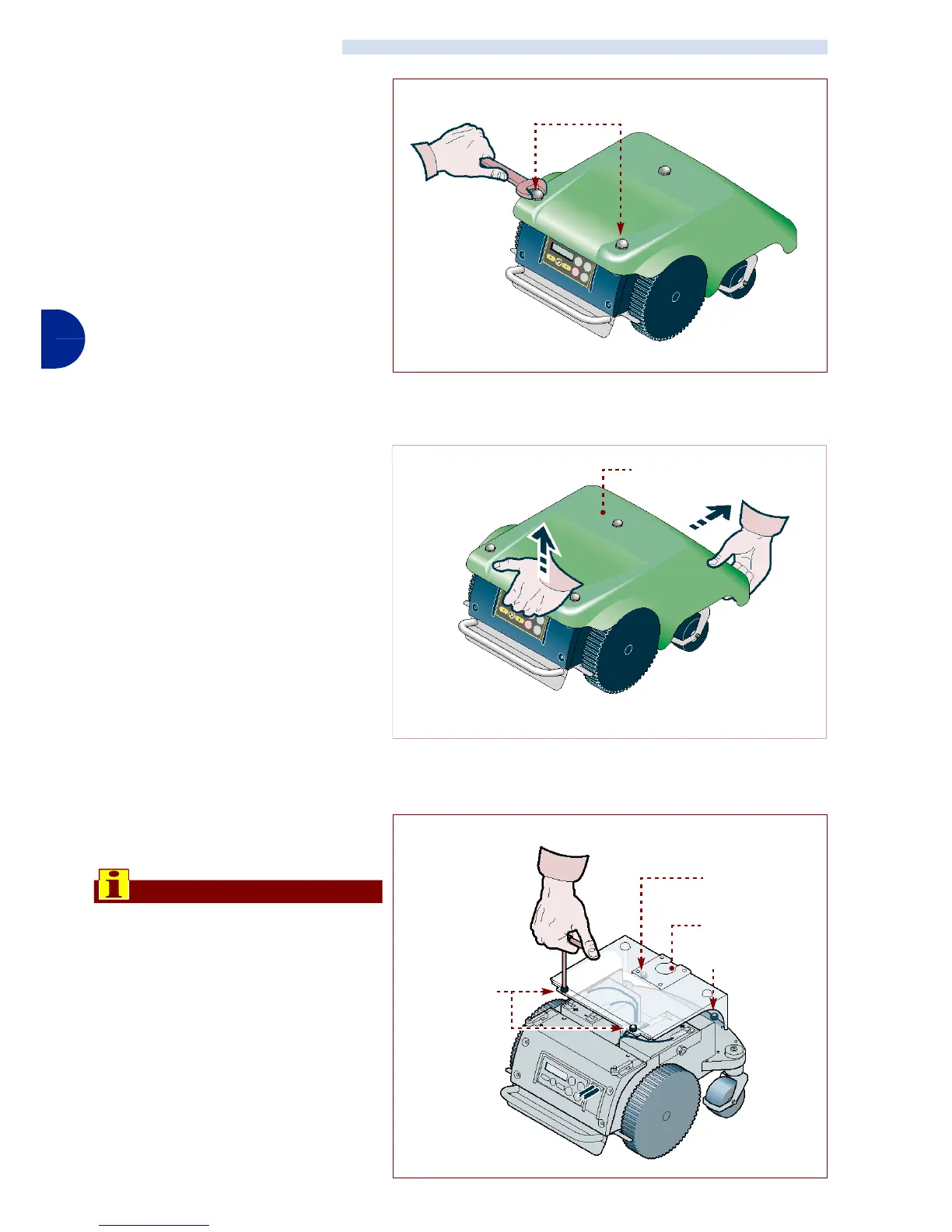

1-Stop the robot in safety condi-
tions (see "Robot safety stop").
2-Undo the knobs (A).
3-Remove the hood (B).
4-Undo the bolts (C) and remove
the guard (D).
Important
Batteries replacement should be
carried out relative to the type
installed (lithium or lead).
BATTERIES REPLACEMENT
IDM - 41501701900.tif
Recharging knobs (A)
IDM - 41501702000.tif
hood (B)
IDM - 41501703300.tif
guard (D)
screw (C)
screw (C)
screw (C)
