Before setting the cutting height of the
blade, make sure that the robot has
stopped in safety conditions (see "Robot
safety stop").
1-Disenable the antitheft alarm
to avoid activation (see "Pro-
gramming mode").
Important
Use protection gloves to avoid
the risk of cuts on hands.
2-Turn the robot upside down
and put it down so not to ruin
the covering hood.
3-Remove the screws (B) to re-
move the blade (A).
4-Unscrew the bolt (C).
5-Lift or lower the cutting group
(D) to define the height of the
mowing you want. The value
can be measured using a
graduated scale.
6-When the adjustment has
been carried out, tighten the
screw (C) and reassemble the
blade.
The greater the excursion of
the cutting group (D), the low-
er the height of the lawn after
mowing.
Important
Gradually reduce the cutting
height. it is advised to reduce the
height by less than 1 cm every 1÷2
days until reaching the ideal height.
7-Capsize the robot in its functioning
position.

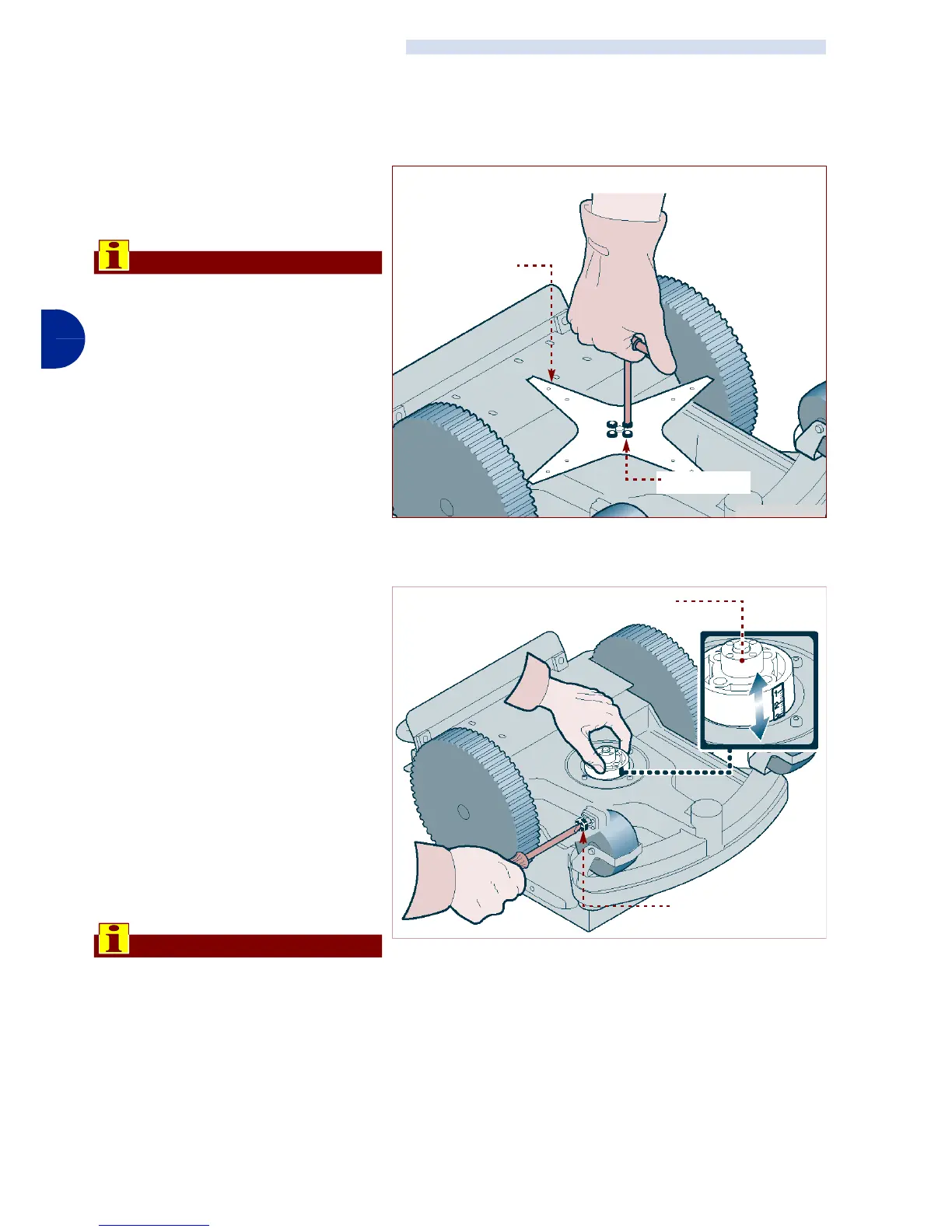

ADJUSTING THE CUTTING HEIGHT
IDM - 41501702900.tif
screws (B)
blade (A)
IDM - 41501610300.tif
screw (C)
cutting group (D)
