Installation
Page 3-16

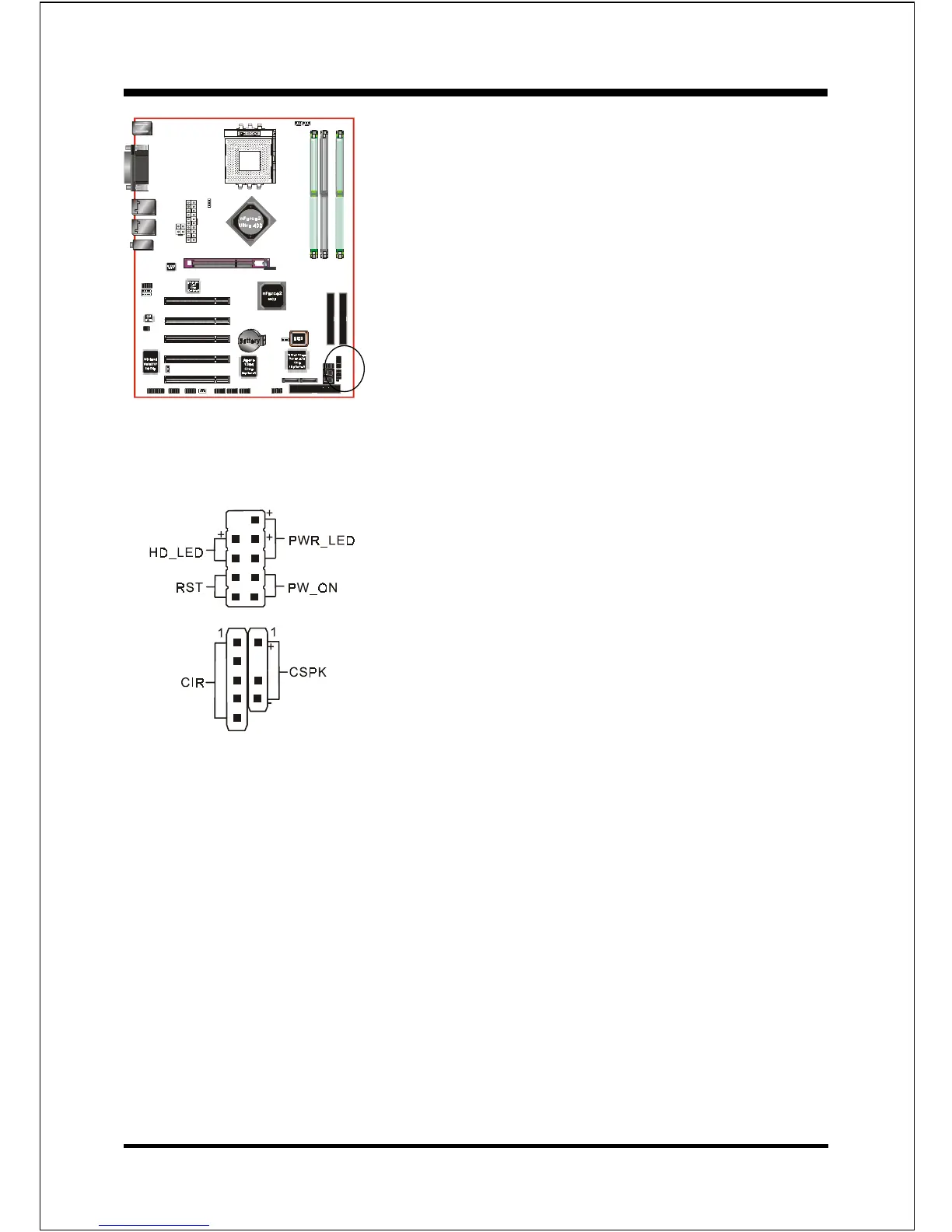

CFP / CIR / CSPK
CFP: Front Panel Connector
HD_LED
This will light when the hard drive is being
accessed.
PWR_LED
This connects to the power button of the
system chassis
RST
This switch allows you to reboot without
having to power off the system thus prolonging
the life of the power supply or system.
PW_ON
This is connected to the power button on the
case. Using the Soft-Off by Pwr-BTTN feature,
you can choose either Instant Off (turns system
off immediately), or 4 sec delay (push the
button for 4 seconds before the system turns
off). When the system is in 4 sec delay mode,
suspend mode is enabled by pushing the
button momentarily.
CIR: IR connector
Connect your IrDA cable to the IR connector.
1. VCC 4. GND
2. CIRRX 5. IRTX
3. IRRX
CSPK: Speaker
Connect to the systems speaker for beeping
1. VCC 3. GND
2. NC 4. Speaker
