Installation
Page 3-15

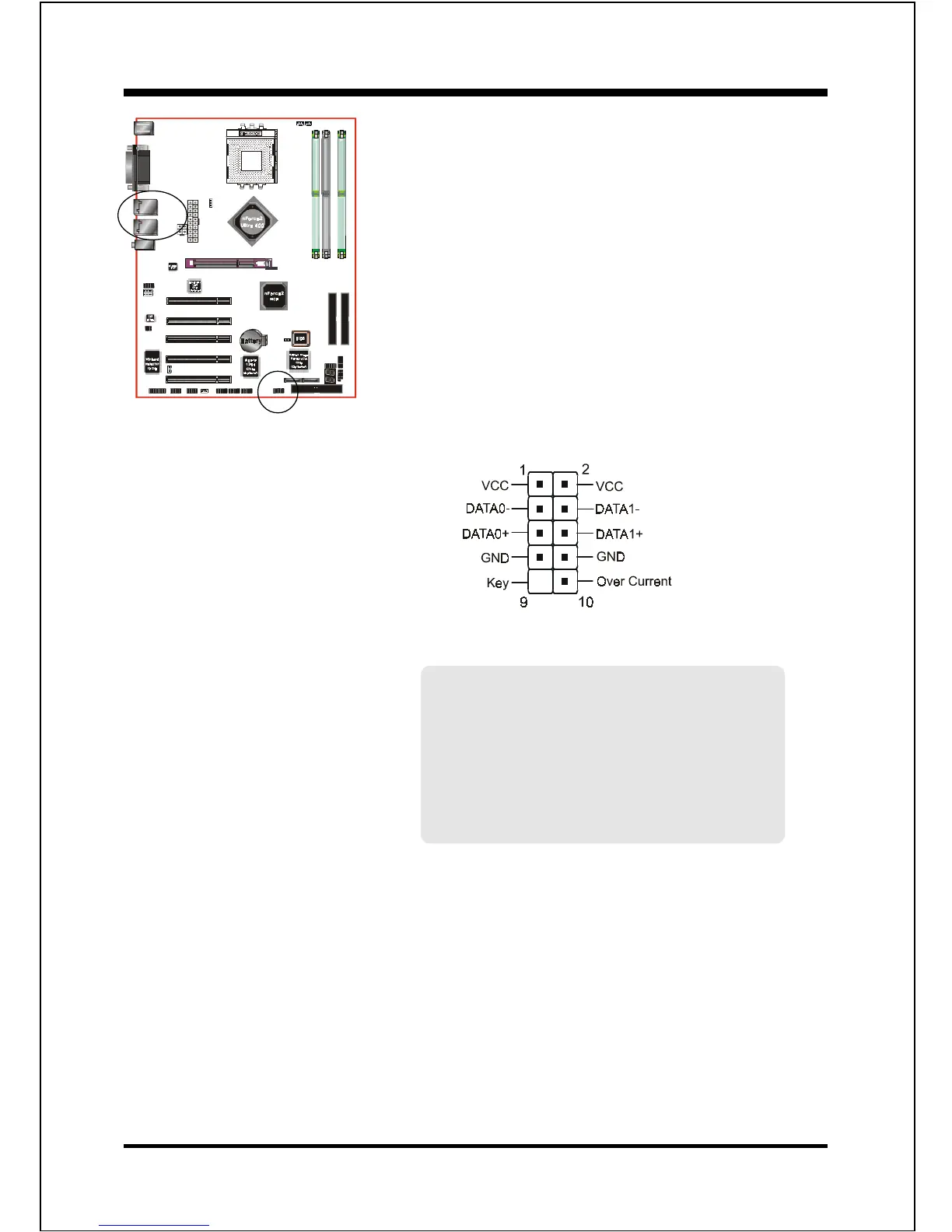

USB1/USB2/CUSB3: Six USB 2.0 ports
The mainboard is equipped with six onboard USB2.
0/1.1 ports (4 at rear panel).
It is equipped with a 10-pin connector for connect-
ing 2 additional external USB 2.0/1.1 ports. If you
wish to use the additional USB ports, install the
card-edge bracket to the system chassis then insert
the connector that is attached to the USB port
cables to this 10-pin connector.
USB2.0 allows data transfer speed up to 480Mbps.
CUSB3
USB1
USB2
CAUTION !
Please make sure the USB cable has the same
pin assignment. A different pin assignment
may cause damage to the system.
If you need the USB cable, please contact our
retailer.
