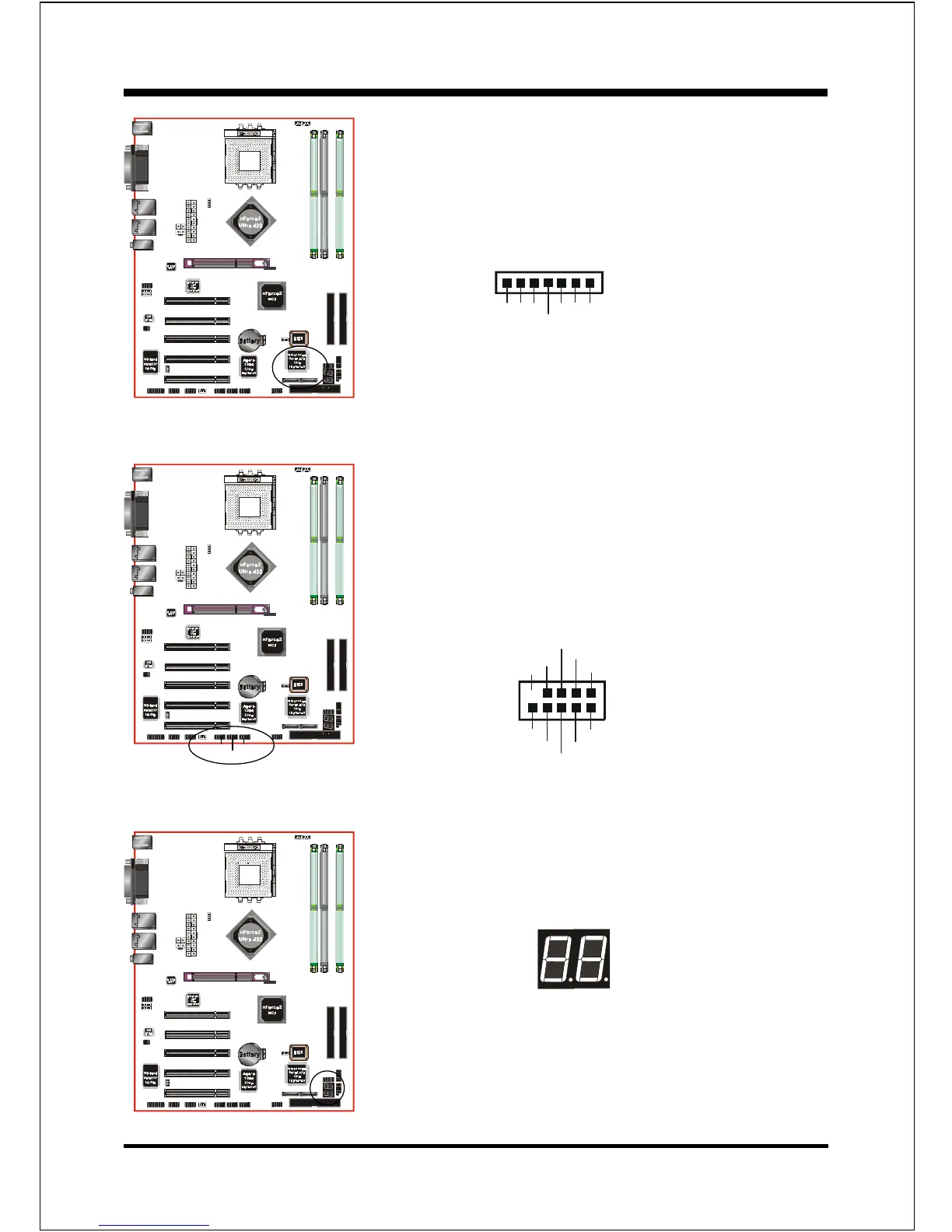

SATA1 / SATA2: Serial ATA Connectors (Optional)
These connectors enable you to connect Serial
ATA devices that conform to the Serial ATA
specification.
SATA2
1
GND
A-
B-B+
GND
A+
GND
SATA1
C1394-1 / C1394-2 / C1394-3: (Optional )
400Mbps 1394a (FireWire) Connectors
C1394-1, C1394-2 and C1394-3 enable you to connect
three IEEE 1394 ports for use with external devices
that conform to the IEEE 1394 specification.
10
2
9
1
TPA+
TPB+
TPA-
TPB-
GND
+12V (Fused)
+12V (Fused)
GND
GND
Key
C1394-3
C1394-1
C1394-2
LED1: 80 Port Debug LED
Provides two digits LED light to show why system
boots failed for quick and easy optimization.
80 Port Debug 7-segment LED display
(Refer to Appendix D for POST codes)
