Installation
Page 3-13

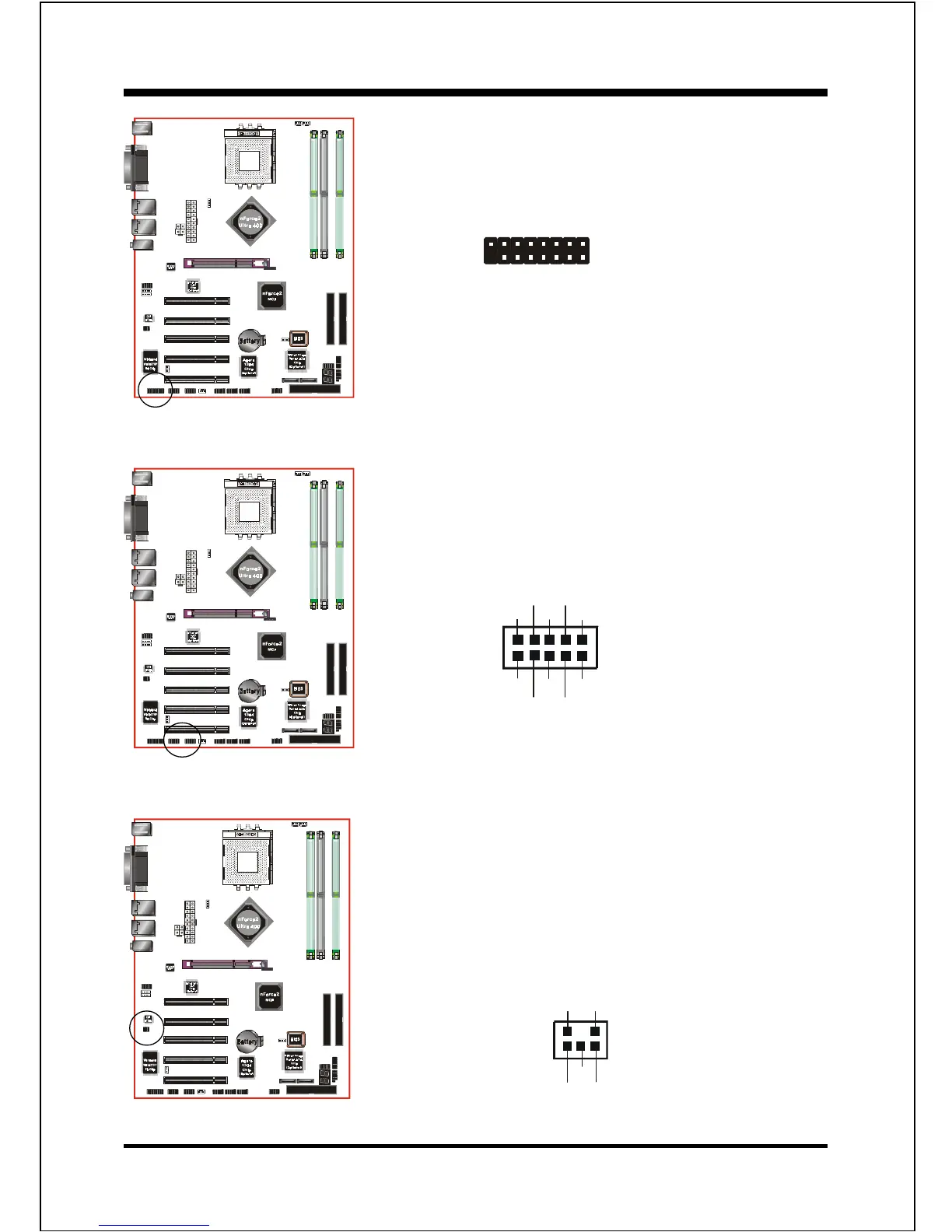

GAME1: Game/MIDI connector
This port works well with any application that is
compatible with the standard PC joystick.
SPDIF: Sony/Philips Digital InterFace connector
This connector is the digital link between the
mainboard and your audio devices, such as CD
player, sampler or DAT recorder. It allows the
digital transmission of audio data in SPDIF format.
COM1/COM2: Serial Port Connector
The serial ports can be used with modems, serial
printers, remote display terminals, and other serial
device.
1
5
2
6
VCC
NC
GND
SPD IF_IN
SPD IF_OUT
1
9
2
10
NC
CTS
Ground
TXD
RI
RTS
RXD
DTR
DCD
DSR
