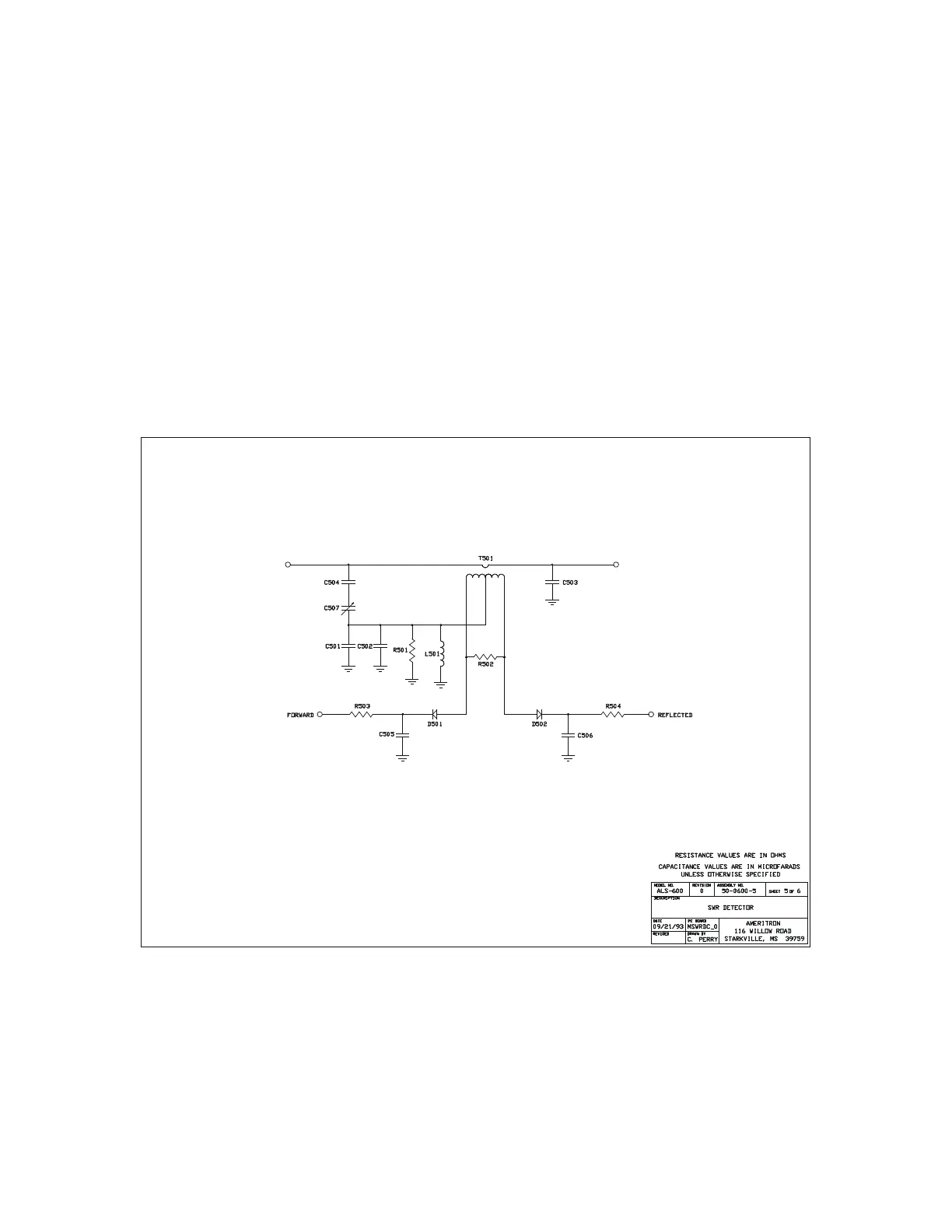

SWR Detect Board
50-0600-5
Designator Description Part Number
C501,502 150 pF 1KV disc cap 200-2150
C503 not used
C504 33 pF 1KV Disc 200-2033
C505,506 .01 uF 50 Vdc 200-0416
C507 3-12 pF 500V TrimCap 200-0416
D501,502 1N34A or equiv. 300-0346
R501 3.3K 1/4 watt 100-3330
R502 68 ohm 2 watt mox 103-6800
R503,504 not used
T501 Pickup Toroid 10-14136
