AMERITRON ALS-600 - ALS-600 PS Chassis Components

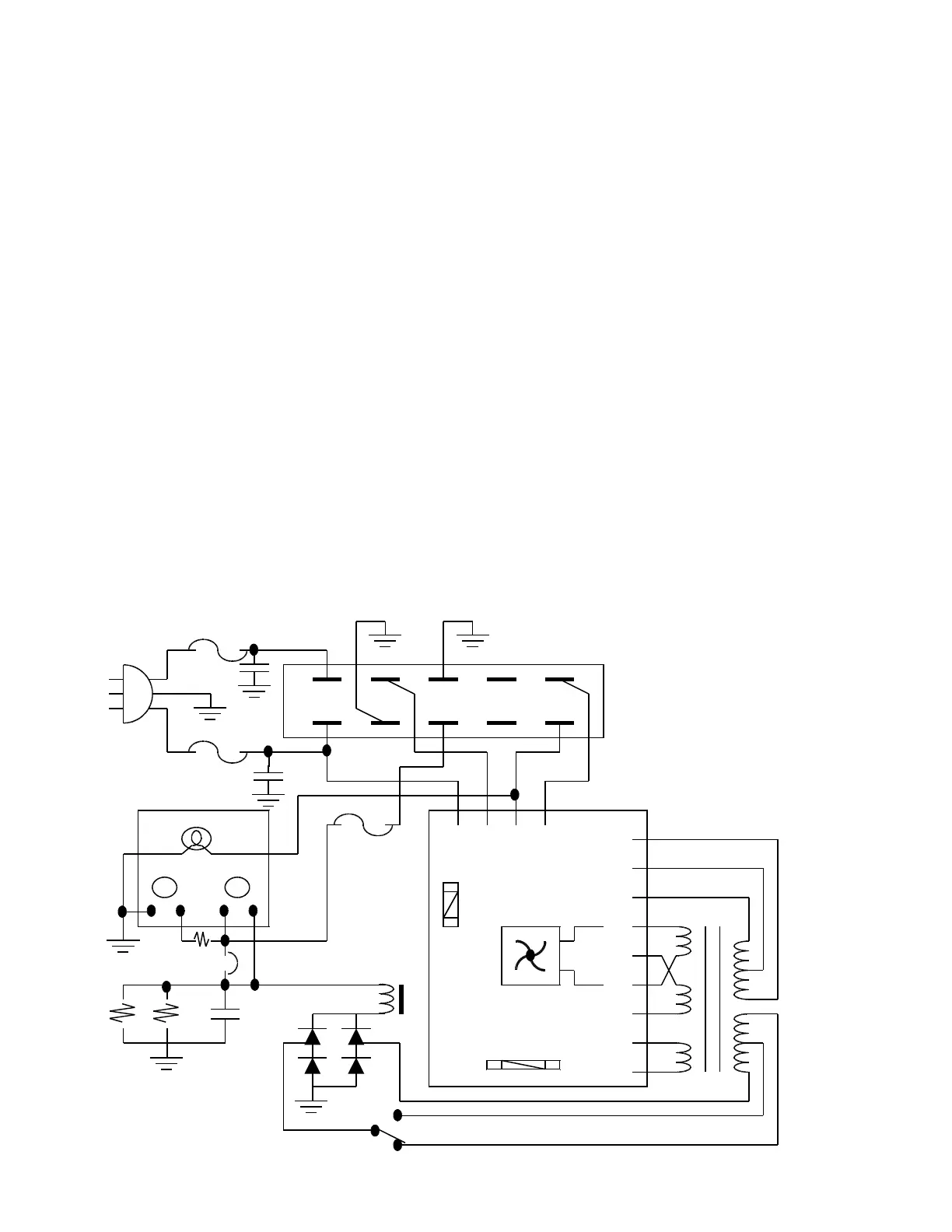

ALS-600PS Chassis Components
Designator Description Part Number
B2 3" muffin fan 410-3583
for B2 fan guard 410-4584
C5 27000 uF 75 Vdc capacitor & 270-8270-2
mounting bracket 735-0159
C3,4 .01 uF 250 Vac disc capacitor 200-2100-1B
D1 50 amp bridge rectifier 300-9200
F601 2 amp slowblow IvIDL type 755-1102
F602 2 amp AGC 755-0102
F1,2 15 amp fuses for 95-110 Vac, 755-0115-1
12 amp fuses for 105-130 Vac or 755-1112-1
8 amp fuses for 200-240 Vac operation 755-0108-1
F3 25 amp high voltage 755-0125-1
for F3-5 chassis mount fuse holders 755-2148
M2a, M2b dual needle 60 volt / 25 ampere scale 400-3600
P1 Power supply plug 610-6012
R3 200K 1/4 watt resistor 100-5300
R5,6 100 ohm 50 watt resistor 113-2100-1
T1 choke 406-1646
T2 power transformer 406-1246
S1 2P2P Switch 507-1262
39
C4
C3
F1
F2
Wht Yel Org Blu
Vio
Blk
Gry
Brn
Wht
Wht
Blu
Org
Yel
F3
Norm.
3
4
7
8
11
12
5
6
RTTY
S1
T2
T1
Red
Red/Yel
Red/Grn
Blk
Brn
Grn
RedWht
M2A M2B
-+
-+
R5
R6
C5
D1
+
Blk/Wht
F601
F602
FAN
