Ametek 5000 Instrument Manual

A-2 5000 Multi Point Moisture Analyzer
Acid Gas 5000 Moisture Analyzer (Figure A1 )
This option is offered in acid gas streams and performs as a scrubber for the intrnal housing of the
field unit: for example, natural gas containing up to 30 percent H
2
S. The basic manual describes the
standard version. This addendum covers the difference between the standard and acid gas option
versions.
Function Acid Gas Option Standard
Moisture cell Preconditioned to H
2
S No preconditioning
Oven cover Mounts a charcoal scrubber cartridge No fan or canister
and an air circulating fan to remove
any free H
2
S inside field unit.
Listed below are major replaceable parts applicable to this option. Parts are shown on figure A1 and
are located inside the field unit.
Find Number Part Number Description
B1 264378001 Fan Assy
F1 264377001 Replacement Scrubber Cartridge

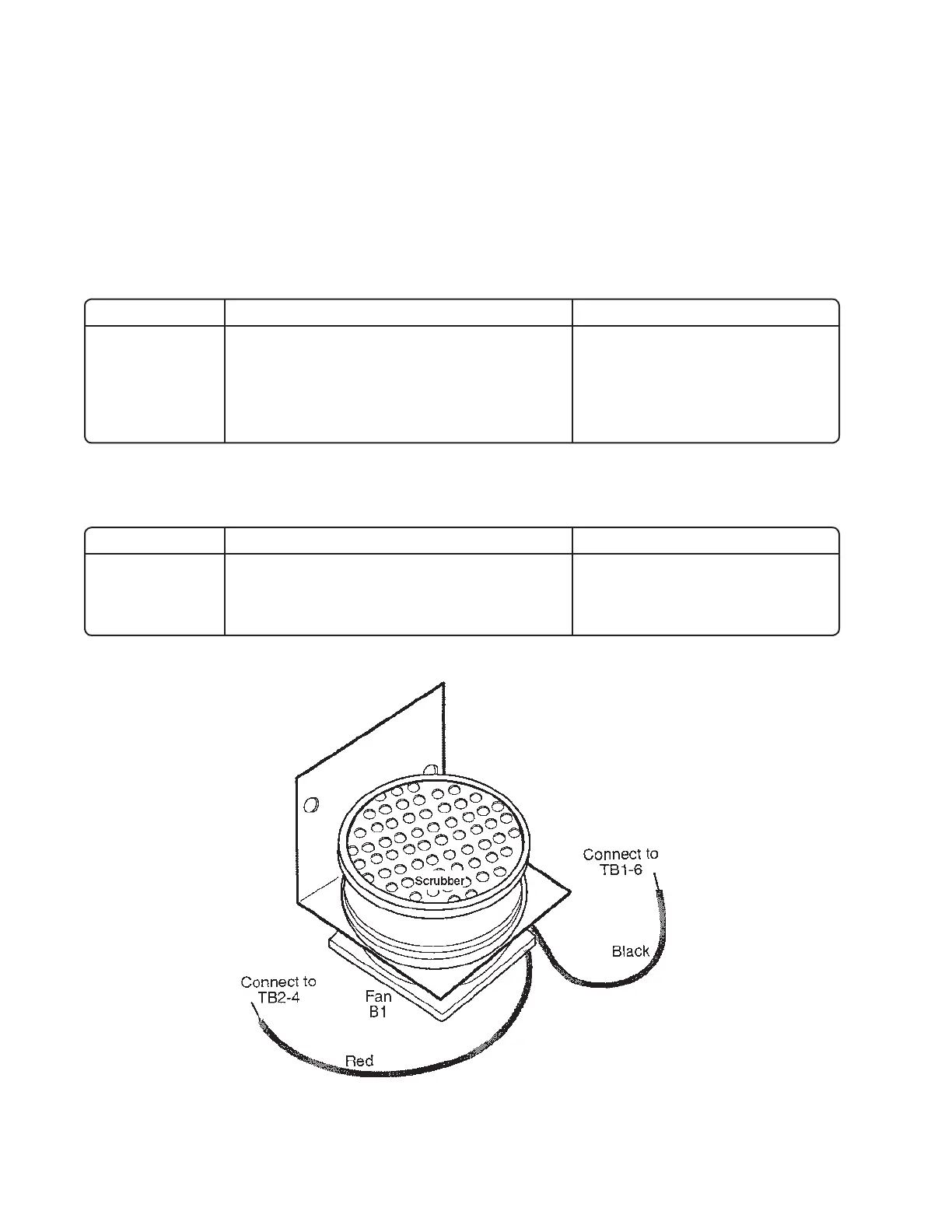

Figure A1. 5000 Acid Gas Option
