Ametek 5000 Instrument Manual
4
of 1
of 1 rating
110 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

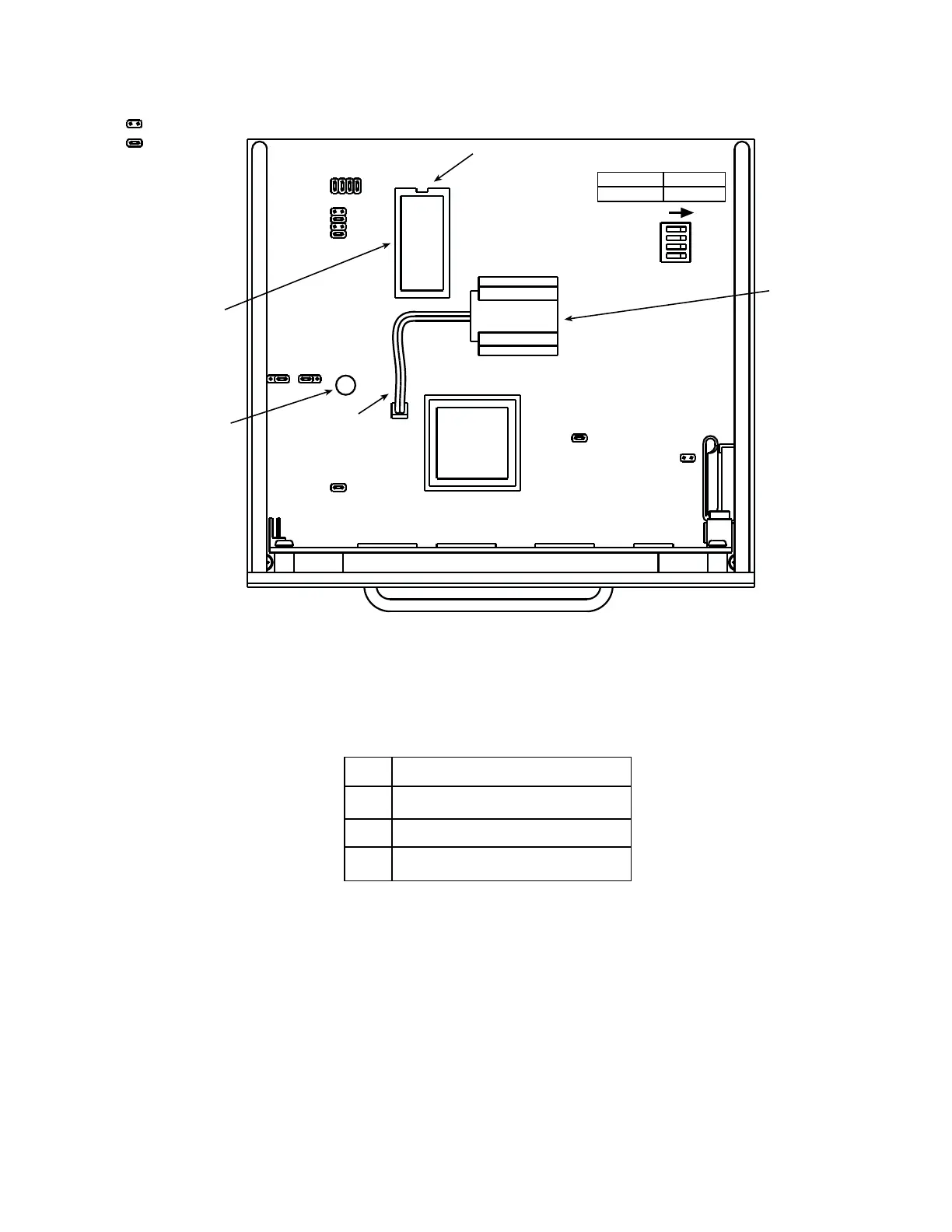

7-6 5000 Multi P
oint Moisture Analyzer
1
2
3
4
BLACK WIRE
THIS SIDE
JUMPERED
NOT JUMPERED
2
3
4
5
NOTCH
500111902
VERS X.XX
CPU U5
BA
TTERY
25352 JE
FUSE, 50mA
205 223 006
PROM IC
500111902S
1 K4
1 K3
1 K2
1 K1
K1 COP
K2 S
Y
STEM
K3 RANGE ID
K4 CONCENTRA
TION 1
REL
A
Y
S
CPU/DIS
PL
A
Y PC BO
ARD
804400901
91
93
Table of Contents
Table of Contents
3
Safety Notes
6
Overview
11
Theory of Operation
11
Verification
11
Gas Flow
14
System Components
14
Installation
19
Prior to Installation
19
Unpacking and Inspection
19
Field Unit Installation
19
Controller Installation
19
Electrical Connections
19
Sample System
31
Sample Tap
31
Sample Pressure, Temperature, Flow Rate
31
Sample Lines and Connections
32
Sample Conditioning
32
Gas Connections to Analyzer
34
Operation
35
Controller Display
35
System Security and Passwords
35
Function Key Overview
37
Field Unit Controls & Indicators
38
Analyzer Start-Up
40
Cell Verification and Span Adjustment
44
CALIB Key
44
Alarms and Alerts
45
Concentration Alarms
45
ALARM Key
45
Analog Ranges
46
ANALOG RANGE Key
46
Software Configuration
49
Level 2 Configure Menu
49
Constants
49
Display (Display Flags)
50
Analog (Analog Flags)
50
Passwords
51
Timing
51
Moist_Gen
52
Serial
52
Flags1 (Configuration Flags)
52
Noise
53
Level 3 Configure Menu
53
Polycoef (Polynomial Coefficients)
53
Labels
54
Constants
55
Flags2 (Configuration Flags)
55
Level 2 Config Menu (Go To)
56
Timers (Measurement Cycle Timers)
56
Default Memory (Reset to Factory Default)
56
Coef_D (Polynomial Coefficient D)
56
Configuring for Multi-Point Operation
57
Serial Communication
59
Hardware Requirements
59
Wiring Configuration and Baud Rate
59
Serial Communication Wiring
59
Troubleshooting & Maintenance
67
System Alarms
67
System Test Menu
68
Scheduled Maintenance
70
Troubleshooting
71
Field Unit Electronics
75
Field Unit
79
Service and Parts
87
Service
87
Field Unit Parts List
88
Controller Parts List
90
Controller
91
Cpu/Display PC Board
92
5000 Input - Output
94
Appendix A: Miscellaneous Options
95
Asymmetric Cycle
95
Acid Gas Option
96
Appendix B: Conversion Factors
99
Water Vapor Pressure & Temperature
99
Absolute Humidity
99
Relative Humidity
100
Dew Point/ Frost Point
100
Volumetric Measurement
100
Conversion Table
103
Background
105
Procedure
105
