1-6 | Model 900 ADA / Model 930 Sulfur Pit Analyzers
Figure 1-2 is an example drawing only. Refer to Final “As-Built” draw-
ings for your system in the analyzer Documentation Package.

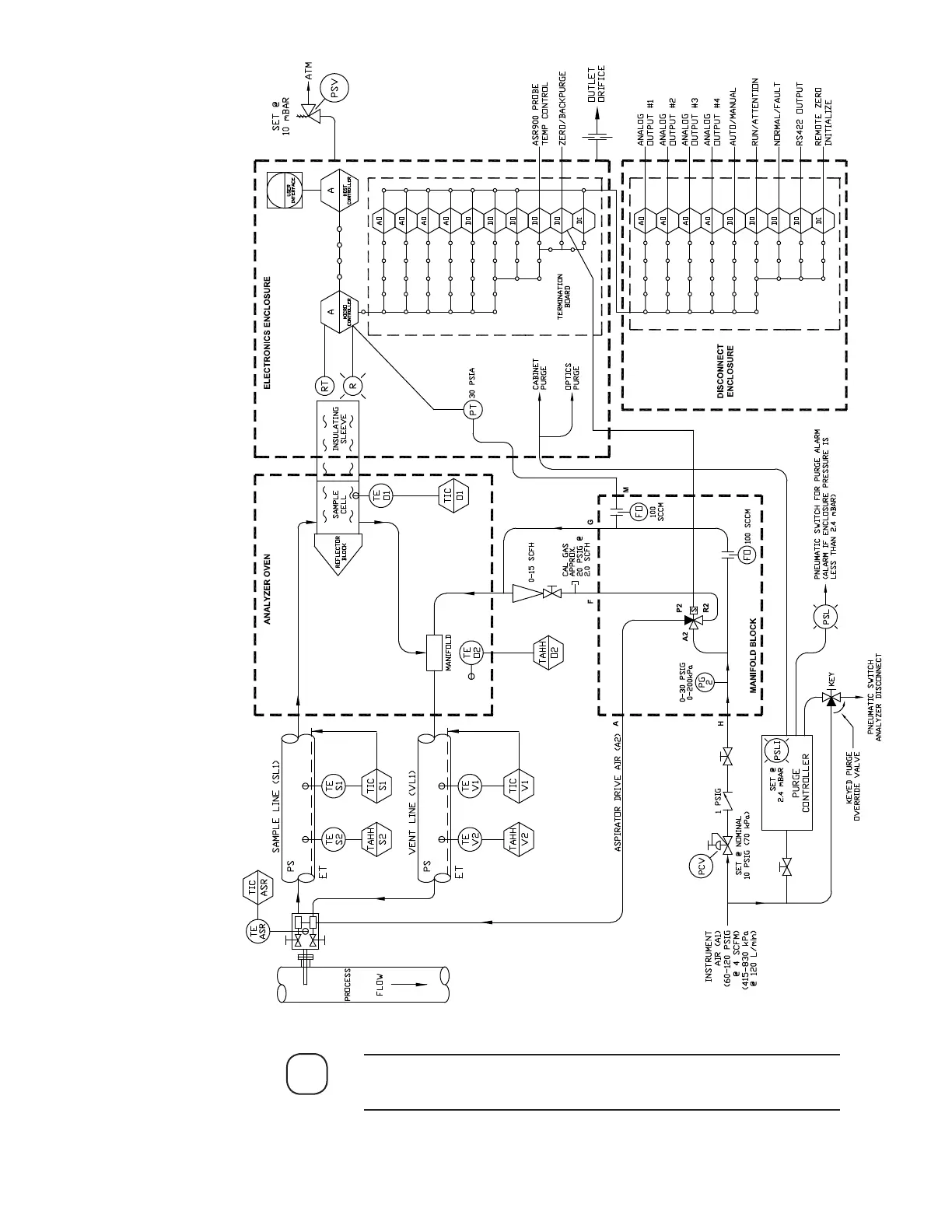

Figure 1-2.
Model 900 Piping
and Instrumentation
diagram (Zone 1).

NOTE
