Installation and Start-Up | 3-9

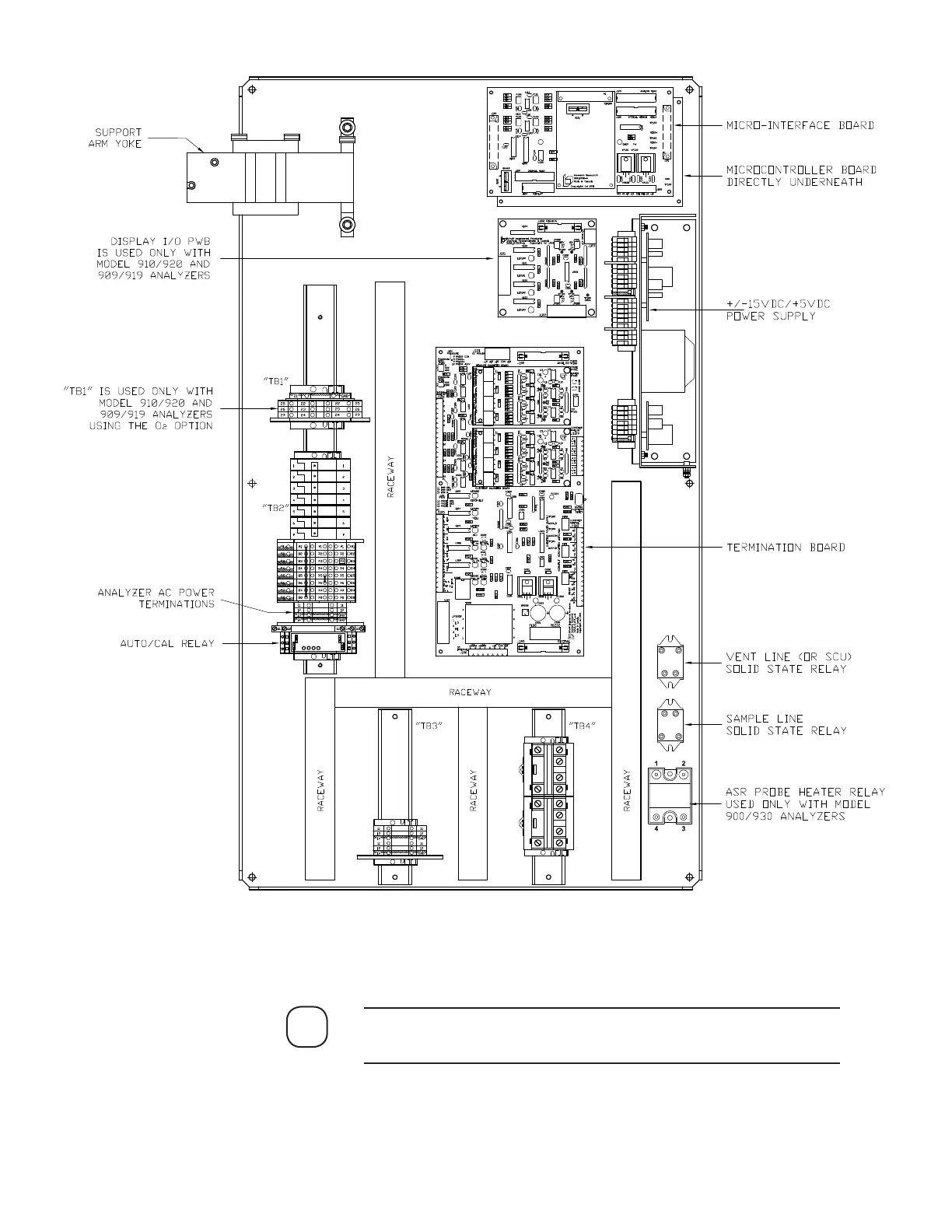

Figure 3-2 illustrates a typical analyzer layout. For your specific
analyzer, refer to Final “As-Built” drawings shipped with the analyzer.
NOTE
Figure 3-2.
Electronics Enclosure, typical
analyzer backpan layout.
