Ametek BrookField TC Series - Quick-Start; Step 1: Fill Reservoir; Step 2: Connect Cooling Coils; Step 3: Connect Power and Control Cables

110-512 BEL/EN
14
Quick-Start
Unless otherwise specified, quick-start instructions apply to all models.
See Installation and Startup for additional information.

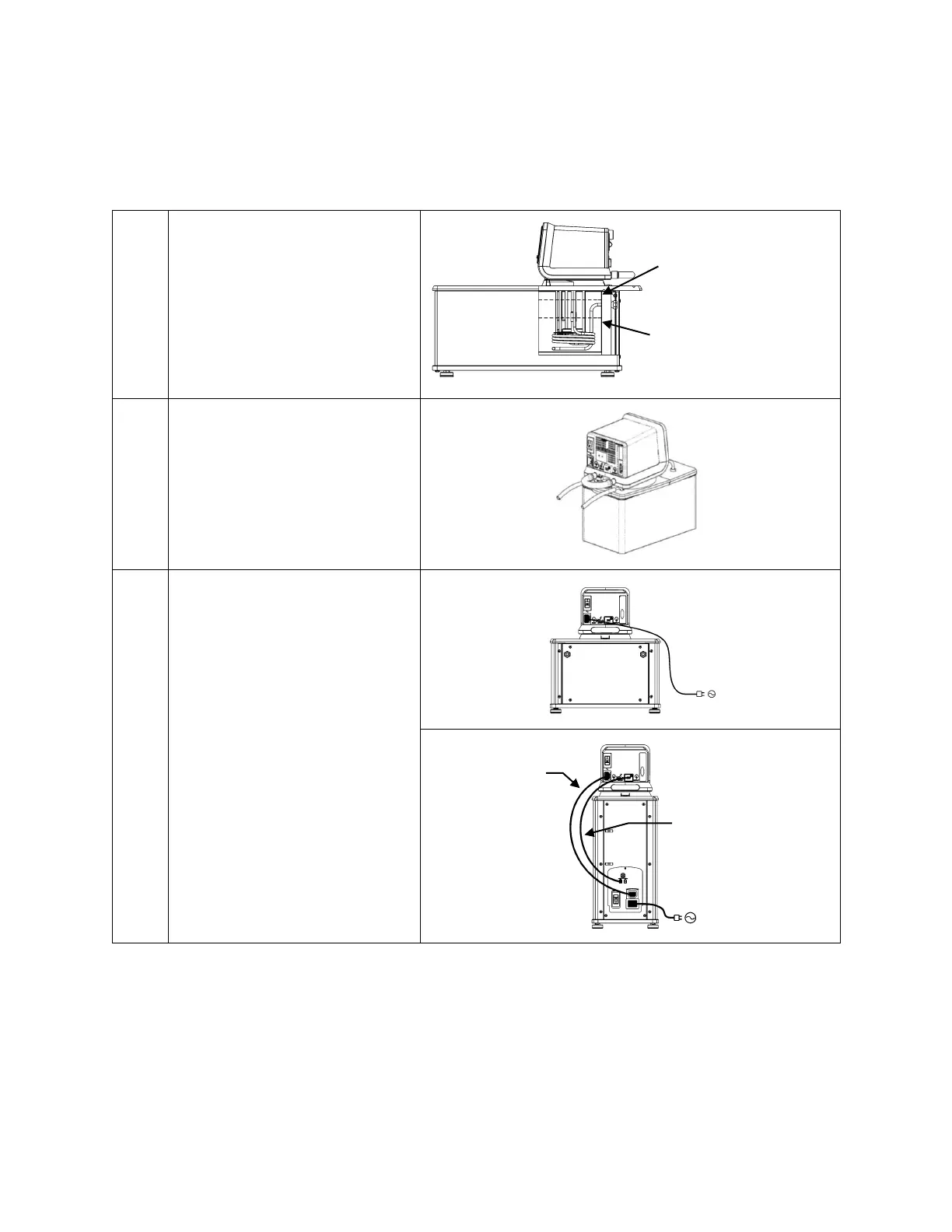

1
Fill reservoir with fluid
2
Models TC-150 and TC-250:
Connect cooling coils to external
water line
(Use of cooling coils is optional)
3
Connect all electrical power cords
and control cables
Maximum: 1 in. / 2.54 cm
below underside of top
deck
Minimum: 4.5 in. / 11.5 cm
below top deck
Heating only models
IEC power cord
from Controller to
Refrigeration
Power Module
Refrigeration
control cable
Refrigerating / heating
models
