Selecting the Serial Communication Baud Rate
This sub-menu allows you to select the speed at which your Circulator will transmit data. The setting on
both the Circulator and the device it is connected to should match. The baud rate setting may be 1200,
2400, 4800, 9600, 19200; 38400, or 57600; the factory default is 9600.
To Access: Press the key until BAUD appears on the display.
To Change: To select the 1200 baud rate setting, touch the bottom of the scroll bar; to
select the 57600 setting, touch the top of the scroll bar. Rates between these two
extremes are selected by touching the corresponding area of the scroll bar (e.g. 9600
baud is at the mid-point of the scroll bar).
To Accept: Press
,
, , or allow the LCD to return to the main operational
display (approximately 10 seconds).
NOTE: When using RS232 communication, the Circulator’s baud rate must match that of the
connected device.

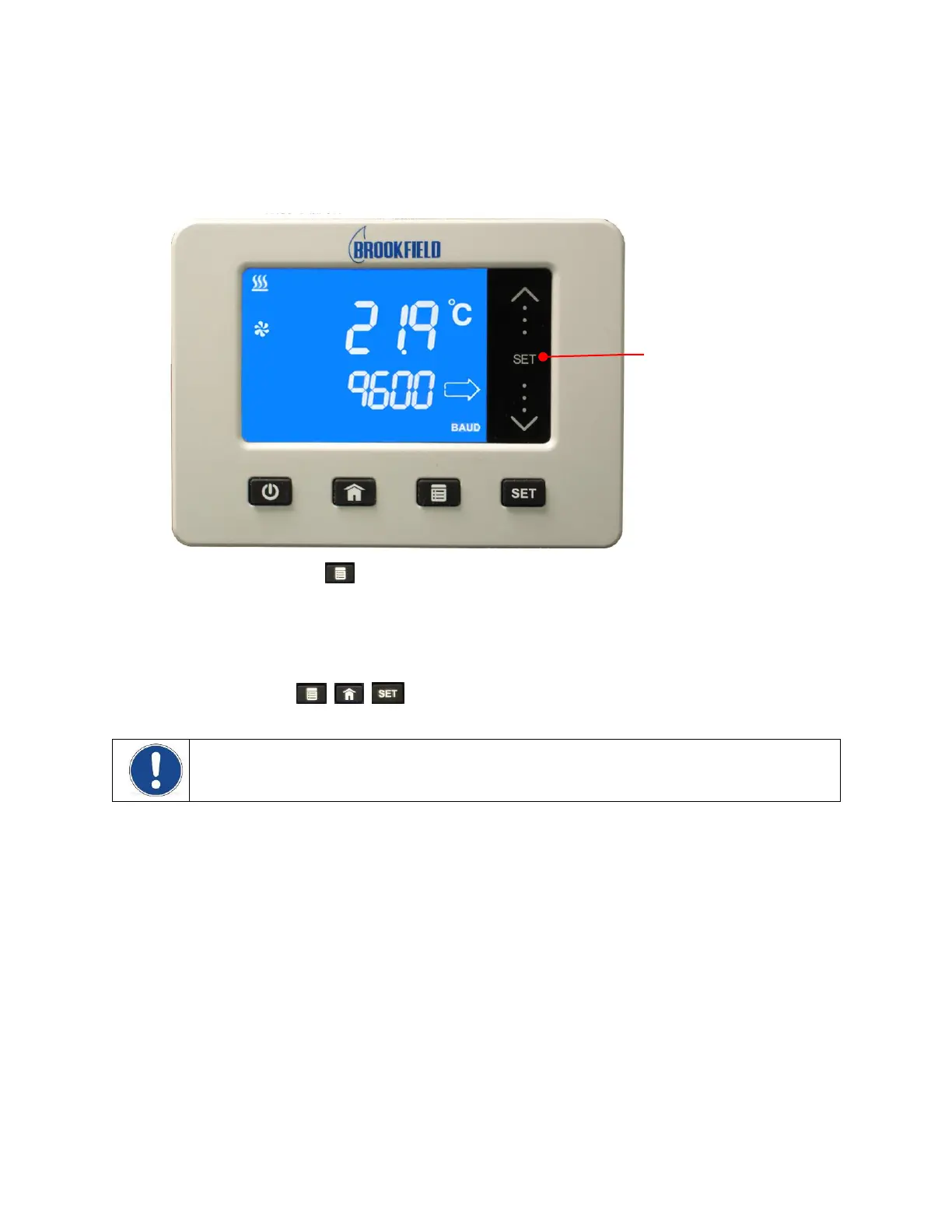

Touch top for fastest baud
