Ametek JOFRA CTC-140 A Service Manual
4
of 1
of 1 rating
54 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
123200 03
26-03-2004
41

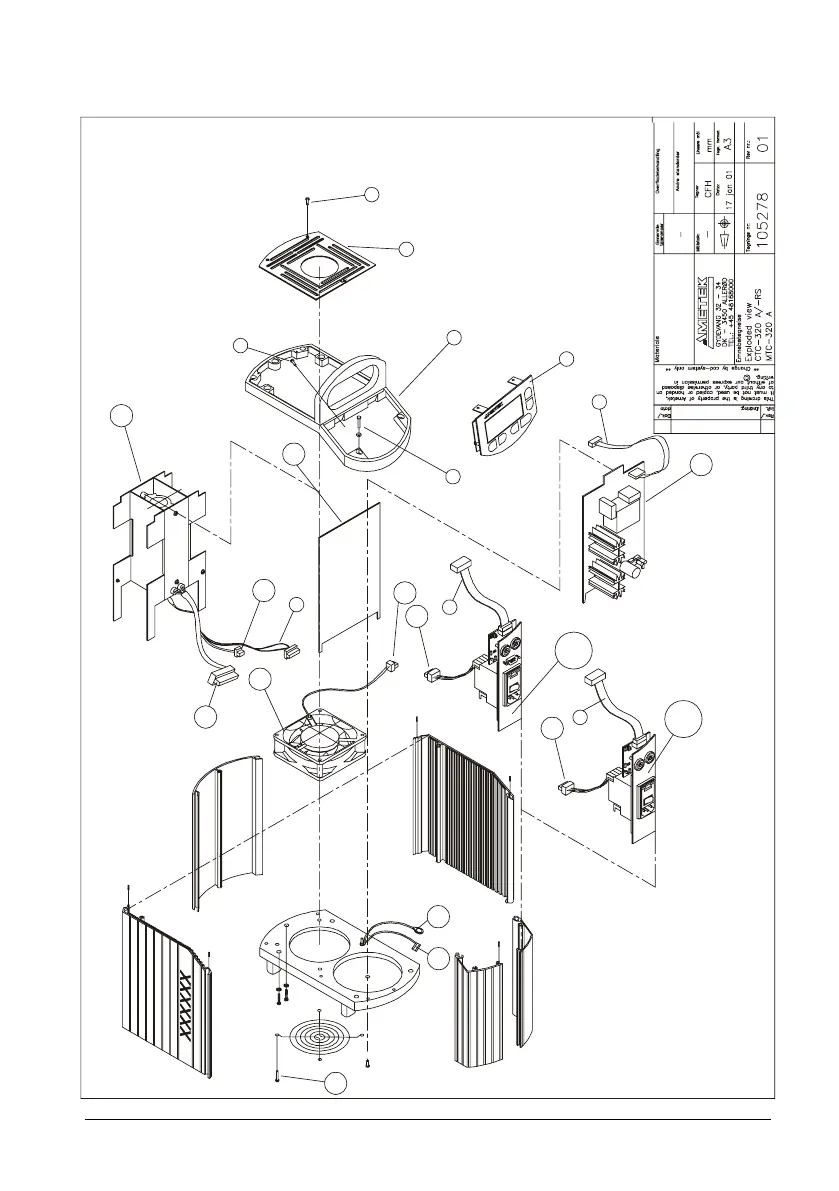

Exploded view – CTC-320 A/-RS, MTC-320 A
18
21
22
11
4
19A
19B
11
17
4
13
9
14
3
1
6
2
15
7
8
20
12
5
10
40
42
Table of Contents
Default Chapter
3
Table of Contents
3
1 General
4
Introduction
4
Safety Instructions
6
2 Maintenance
7
Adjusting and Calibrating the Instrument
7
Caring for the Instrument after Use
15
3 Repairs
17
Trouble Shooting
17
Replacement of Spare Parts
25
Adjusting and Testing Pcbs
33
Controller Pcb
33
Power Pcb Ctc-140 A, Mtc-140 a
34
Power Pcb Ctc-320/650 A/B, Ctc-1200 A, Mtc- 320/650 a
35
Testing the CONTROLLER PCB and Keyboard
36
4 Spare Parts and Drawings
37
Spare Parts - Generel
37
List of Spare Parts - CTC-140 A/-RS, MTC- 140 a
38
List of Spare Parts - CTC-320 A/-RS, MTC- 320 a
40
List of Spare Parts - CTC-650 A/-RS, MTC- 650 a
42
List of Spare Parts - CTC-320 B/-RS
44
List of Spare Parts - CTC-650 B/-RS
46
List of Spare Parts - CTC-1200 A-RS
48
Wiring Diagram - CTC-140 A/-RS, MTC-140 a
50
Wiring Diagram - CTC-320/650 A/-RS, MTC- 320/650 a
51
Wiring Diagram - CTC-320 B/-RS
52
Wiring Diagram - CTC-650 B/-RS
53
Wiring Diagram - CTC-1200 A-RS
54
