52 26-03-2004 123200 03

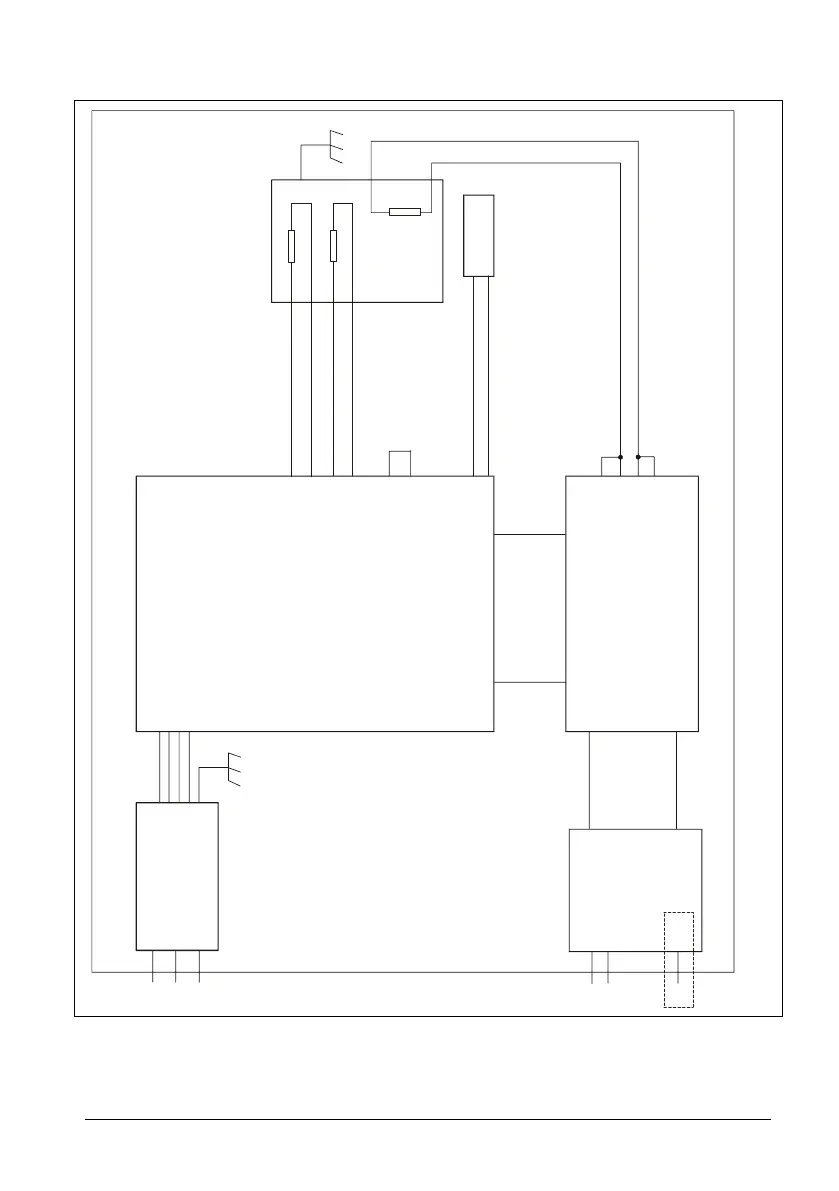

4.10 Wiring diagram – CTC-320 B/-RS
MAINS INLET
BLUE
ORANGE
GREY
BROWN
A
B
C
D
GND
LIVE
NEUTRAL
GROUND
CN2-4
CN2-3
CN2-2
CN2-1
CN1-5
CN1-4
CN1-3
CN1-2
CN1-1
HE 1
HE 2
115V/300W
115V/300W
WELL
+
-
24 VDC FAN
105356 Rev 00
Page 3
R3
PT 1000
CN6-1
CN 3
CN 1
CN 2
CN3-1
CN3-2
CN3-3
CN3-4
1
1
11
10
CN 1
I/O PCB
RS232
SWITCH TEST +
SWITCH TEST -
10
16
16
CN6-2
CN1-6
CN1-7
CN1-8
CN4-1
CN4-2
POWER PCB
CONTROLLER PCB
WITH FUSE
AND VOLTAGE
SELECTOR
Optional
