Installation Manual - Rev D California Instruments

MX Series 9

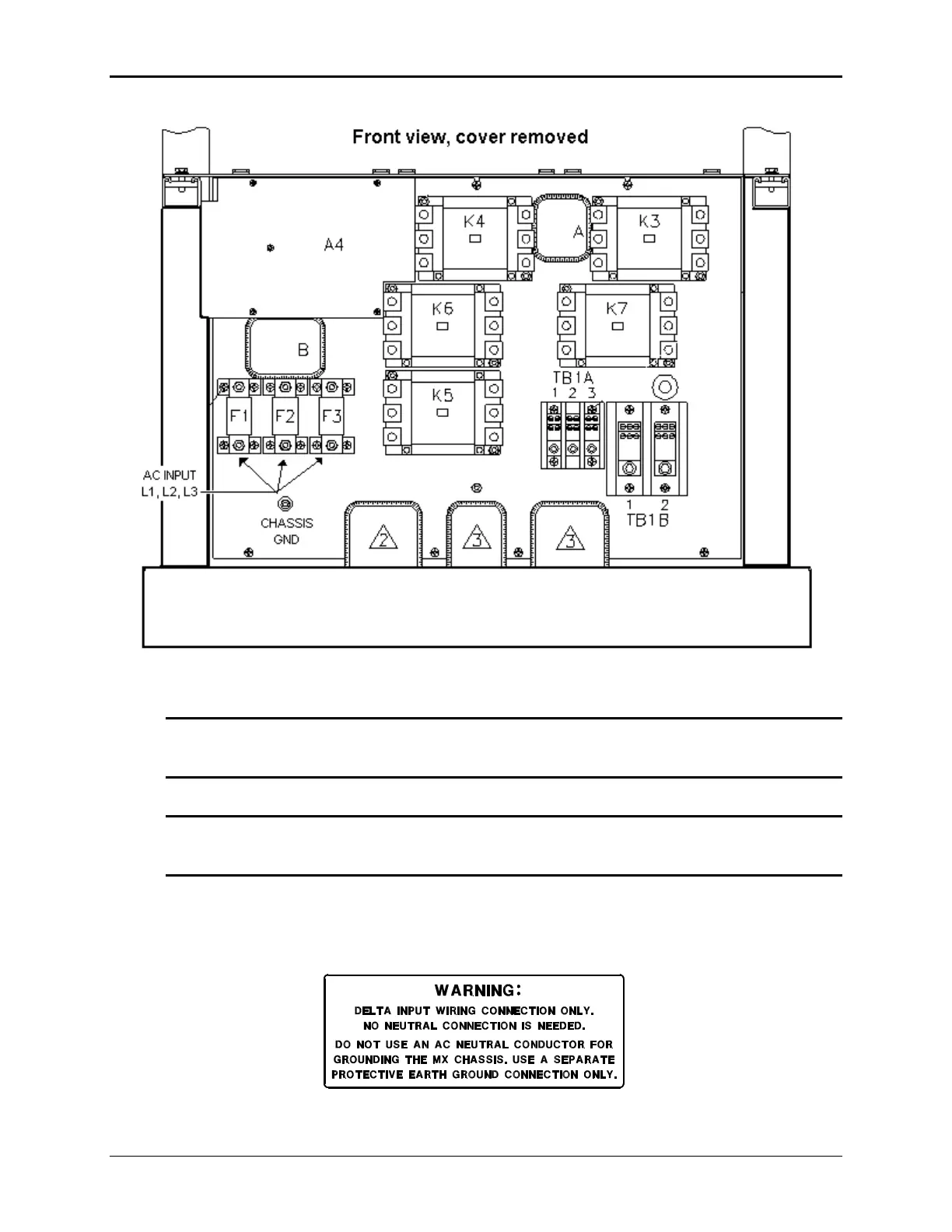

Figure 2-2: Location of AC Input Fuse Block and Chassis Ground Connection

Note: To comply with product safety requirements, EARTH GROUND must be connected

to the chassis of the AC power system using the ground stud located directly

below the AC input fuse block. Use a Green/Yellow ground wire.

Note: DO NOT USE THE NEUTRAL CONNECTION OF A 3 PHASE Y AC POWER

CONNECTION IN PLACE OF A TRUE EARTH GROUND CONNECTION. AC power

system neutrals cannot be used for protective earth ground.

The mains source must have a current rating equal to or greater than the input fuses and the

input wiring must be sized to satisfy the applicable electrical codes. The front cover must be re-

installed prior to use and the strain relief provisions located at the rear bottom of the unit must be

used to maintain protection against hazardous conditions.

Table of Contents9
Introduction10
General Description10
Manual Organization and Format10
Unpacking and Installation11
Unpacking11
Power Requirements11
Figure 2-1: the MX45 Power Source11
Mechanical Installation12
AC Input Connections and Wiring12
Figure 2-2: Location of AC Input Fuse Block and Chassis Ground Connection13
Figure 2-3: MX45 AC Input Connection Diagram14
AC On/Off Circuit Breaker on MX45 Front Panel15
Table 2-1: Suggested Input Wiring Sizes for each MX45 Cabinet15
Figure 2-4: Rear Panel16
Output Connections17
Figure 2-5: External Sense Cable Shield Connection to Chassis Ground17
Table 2-2: Suggested Output Wiring Sizes18
Figure 2-6: Location of Output Terminals19
Table 2-3: Output Terminal Connections19
Figure 2-7: MX45-1 Output Wiring20
Figure 2-8: MX45-3 Output Wiring21
Figure 2-9: MX90 or MX90-MB Output Wiring22
Figure 2-10: Two Mx45'S in Clock and Lock Mode Output Wiring23
Figure 2-11: MX135 or MX135-MB Output Wiring24
Figure 2-12: Three Mx45'S in Clock and Lock Mode - Output Wiring25
Figure 2-13: Ship Kit Terminal Block Dimensions26
Connectors - Rear Panel27
Table 2-4: System Interface Connectors27
Table 2-5: Analog Interface Connector28
Table 2-6: BNC Connectors28
Figure 2-14: Emergency Switch (es Option) Shut off Inter Connect on -MB Systems29
Table 2-7: External Sense Connector29
Multiple Cabinet System Configurations30
Figure 2-14: Multi-Cabinet DIP Switch Location and Setting30
Clock and Lock Configurations31
Table 2-8: Clock and Lock Configuration Settings31
Table 2-9: Clock and Lock Initialization Settings32
Basic Initial Functional Test33
Figure 2-15: Functional Test Setup34
