Installation Manual - Rev D California Instruments

MX Series 17

2.6.4 MX45-3 and and MX45-3Pi 3ø mode Output Wiring Diagram

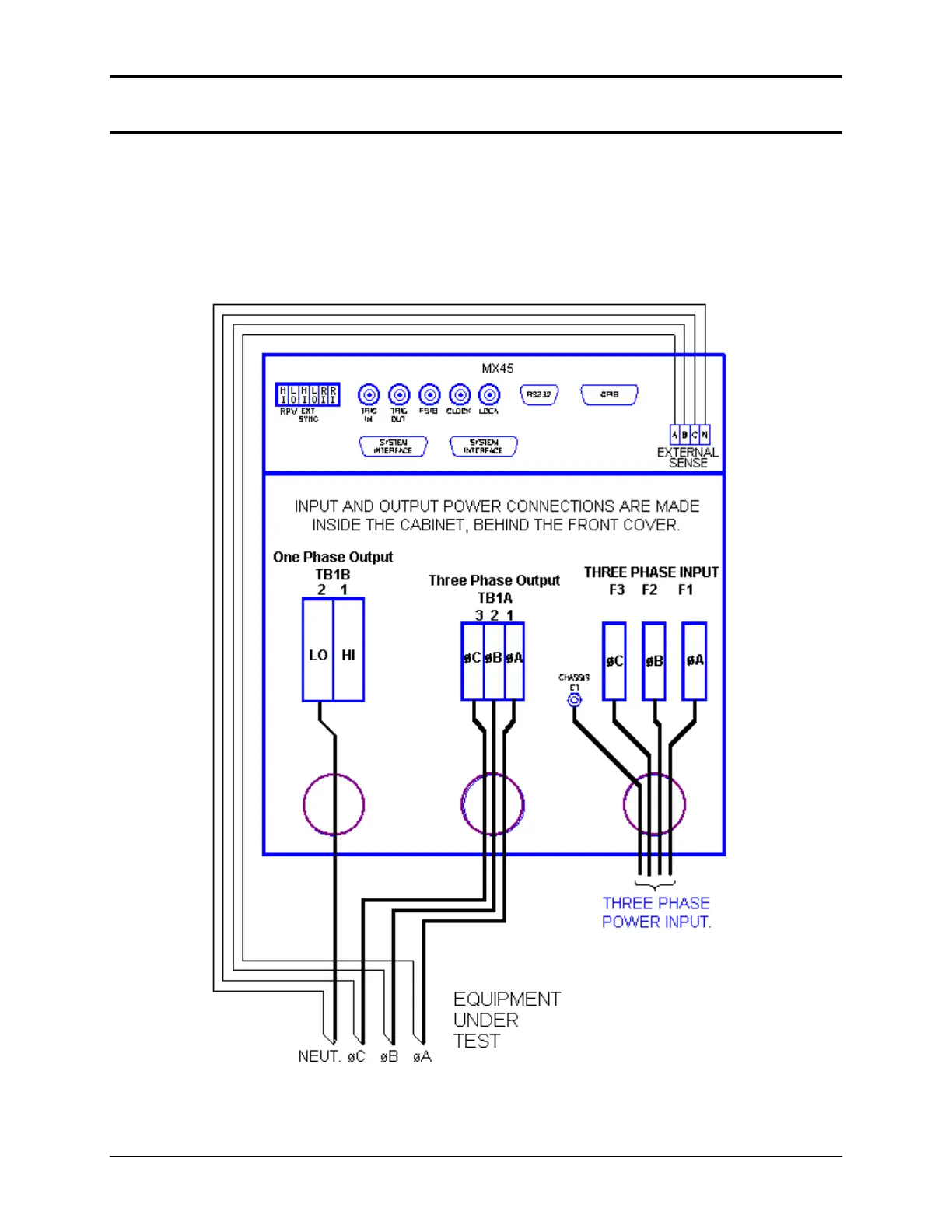

Figure 2-8 shows the required output connections for a MX45-3 three phase or a MX45-3Pi in

three phase mode output configuration (rear-view perspective). See section 2.6.2 for the MX45-

3Pi in single-phase mode.

Always disconnect all input power from the MX45 before removing the front panel cover that

provides access to the input and output terminal connections. Route the wires from the back of

the MX45 to the front in the provided cable guides.

Figure 2-8: MX45-3 Output Wiring
