Installation Manual - Rev D California Instruments

MX Series 18

2.6.5 MX90 Output Wiring Diagram

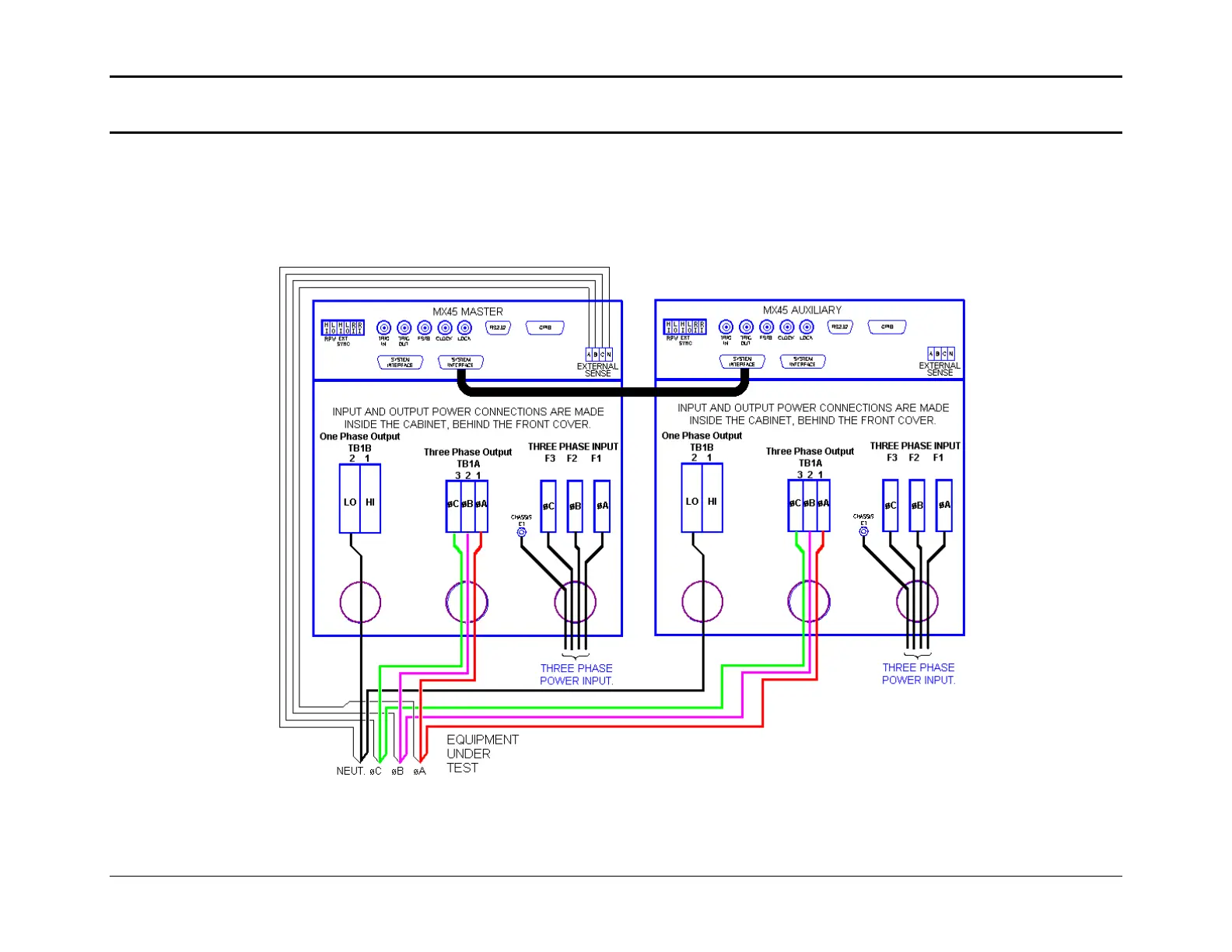

Figure 2-9 shows the required output connections for a MX90-3 three phase output configuration (rear-view perspective). Always

disconnect all input power from the MX90 before removing the front panel cover that provides access to the input and output terminal

connections. Route the wires from the back of the MX45 chassis to the front in the provided cable guides. MX90 and MX135 systems are

shipped with external output terminal blocks that enable the output wiring from two or three chassis to be combined, providing a single

point of connection to the EUT. These blocks are not enclosed however.

Figure 2-9: MX90 or MX90-MB Output Wiring
