3.6.4. Mechanical Installation
The NetWave is a completely self-contained power source. It may be used free standing on a bench top or
rack mounted with trolley. The unit is fan cooled, drawing air in from the front and exhausting at the rear.
At the rear side at least 0.5 m clearance must be maintained. More space will be needed when the operator
need recently to change connectors.

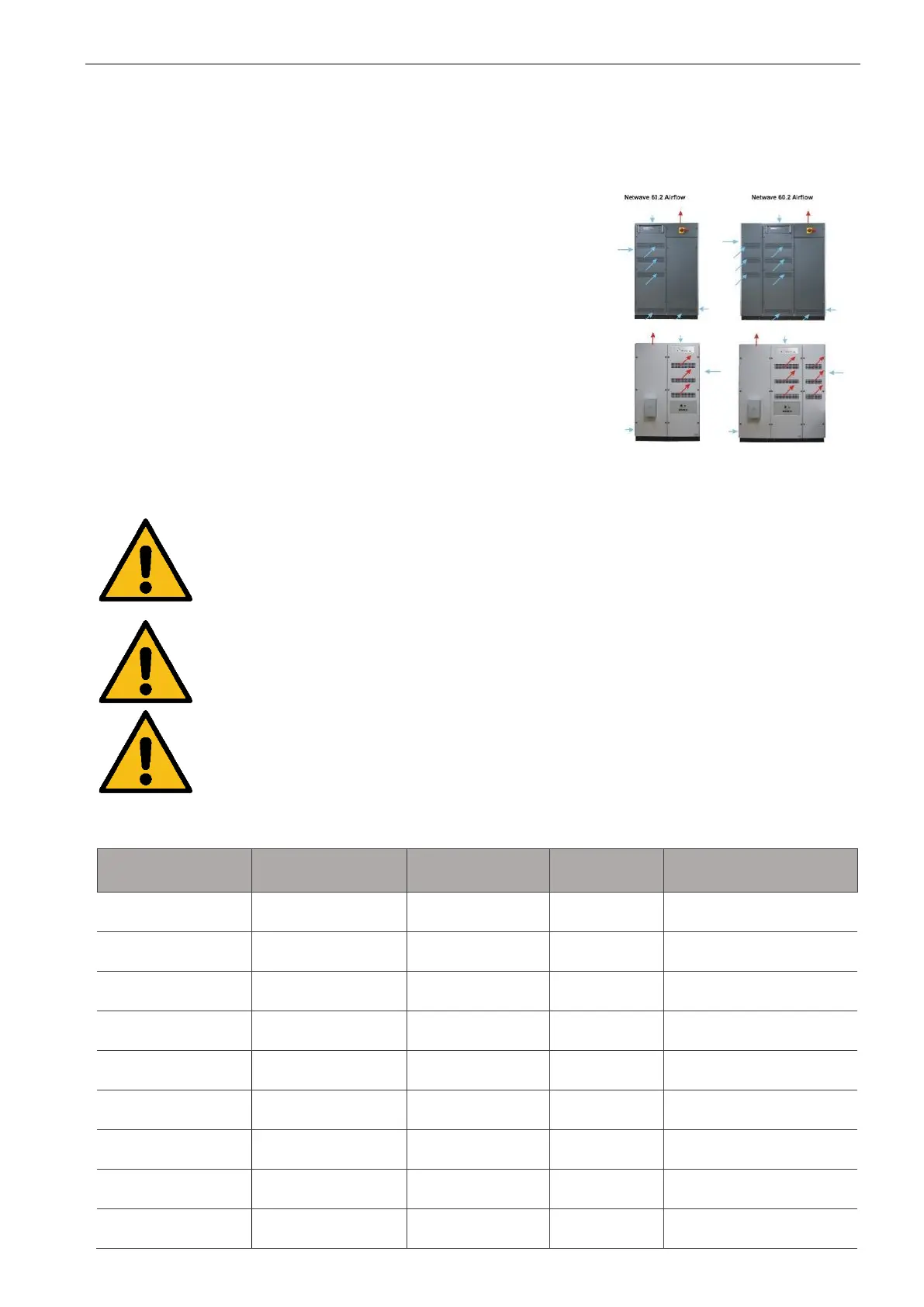

Airflow
The figure shows the general airflow on a
NetWave 60 model.
BLUE: Cold air enters the NetWave
RED: Hot air exhaust
Front
Rear
Standard with recovery
3.6.5. Power requirements
Caution
Do not connect other mains voltages than specified (400 V-480 V).
Other voltages could damage the unit.
A circuit breaker with appropriate rated current and type C characteristics must be
used.
The residual current device RCD must be type B if one is installed at the input.
Model
Power
Requirements
Nominal
current
Inrush
curent
Input connector
Netwave 3.1
1 x 230V ±10%
1PH + PE
25A
50A
Mennekes 817 or
equivalent
Netwave 7
3x400V ±10%
3PH +N +PE
18A phase 30
Neutral
32A phse
54A Neutral
Mennekes 1409 or
equivalent
Netwave 7.3 400
3x400V ±10%
3PH +N +PE
25A phase
50A phase
Mennekes 1409 or
equivalent
Netwave 7.3 208
3x208V ±10%
3PH +N +PE
50A phase
100A phase
Phoenix HDFKV 25
Netwave 20.X 400
3x400V ±10%
3PH+PE
50A phase
90A phase
Phoenix HDFKV 50
Netwave 20.X 480
3x480V ±10%
3PH+PE
42A phase
75A phase
Phoenix HDFKV 50
Netwave 20.X 208
3x208V ±10%
3PH +PE
100A phase
180A phase
Phoenix HDFKV 50
Netwave 30.X 400
3x400V ±10%
3PH+PE
70A phase
140A phase
Phoenix HDFKV 50
Netwave 30.X 480
3x480V ±10%
3PH+PE
60A phase
120A phase
Phoenix HDFKV 50
