AMETEK CTs NetWave

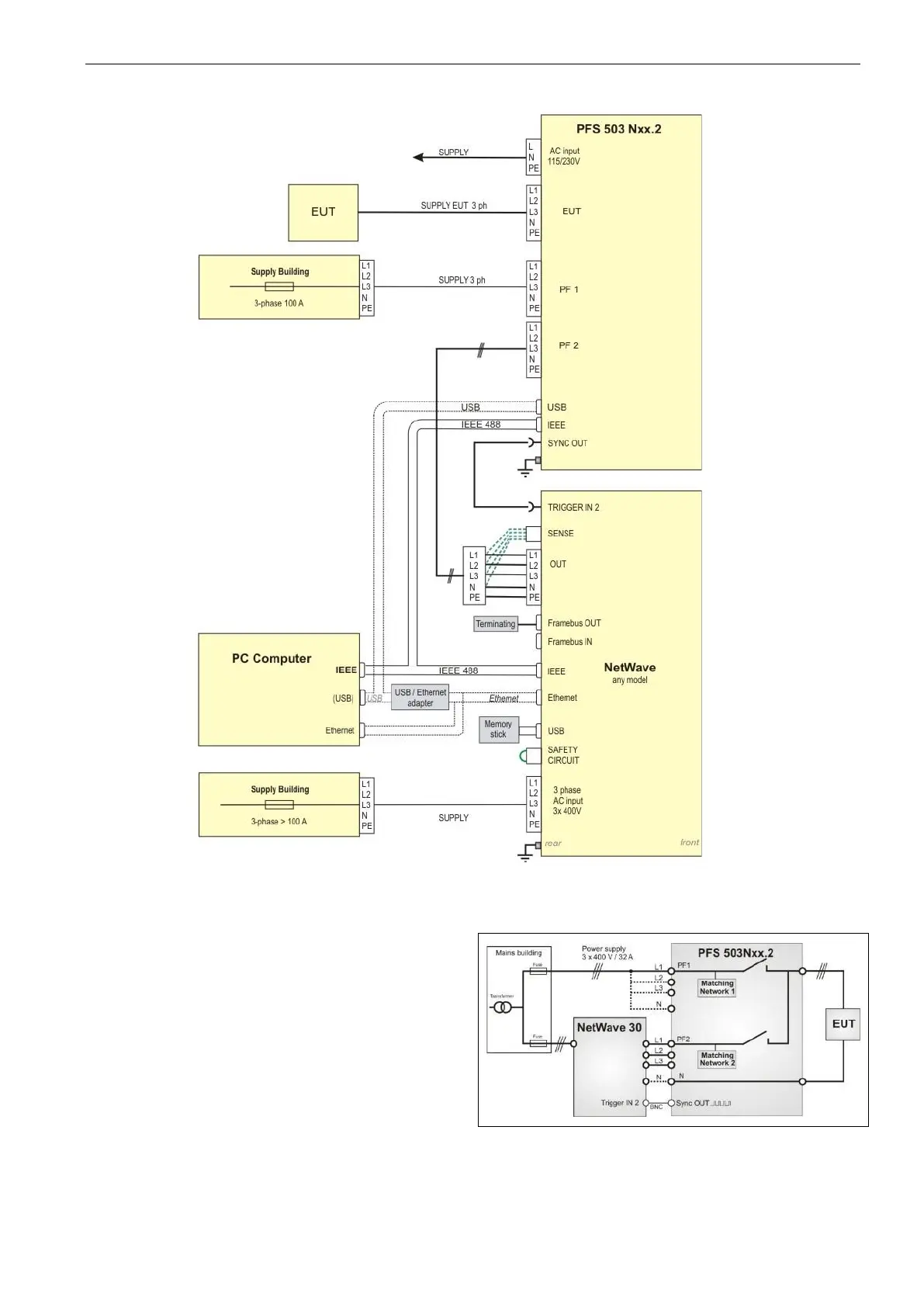

3.6.18. Cable wiring NetWave with PFS 503Nxxx.2
Cabling of NetWave and PFS 503Nxxx.2 for testing 3-phase dips and interruptions as per IEC 61000-4-11 and
IEC 61000-4-34.
Voltage dips and interruptions application with a
NetWave operates according the following principle.
100 % voltage: From the mains of the building
Reduced dip voltage: From the NetWave 3-phase
AC source
For dips the power source changes from mains
(100%) to the NetWave AC source (reduced voltage)
The test is performed by iec.control software. For more application information refer to the PFS 503 manual.
