AMETEK CTs NetWave

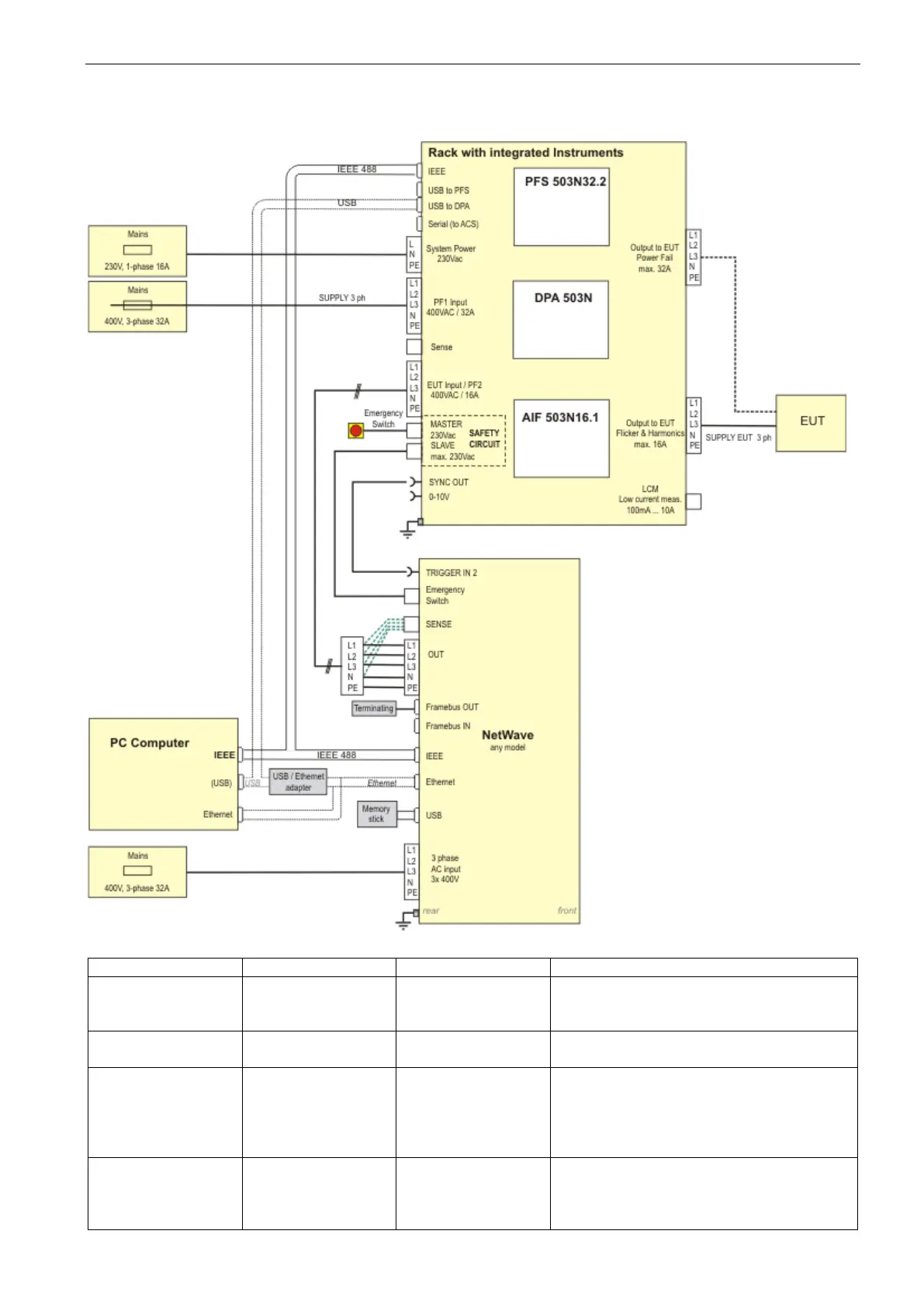

3.6.19. Cable wiring NetWave with Rack incl. integrated AIF 503N16.1, DPA 503N and PFS
503N32.2
Interconnections
NetWave
Rack
Cable
Emergency Switch
connector
Safety Circuit –
SLAVE connector
Interconnect cable
with Hirschmann
connectors
The emergency switches of the NetWave
and the Rack are linked through the Slave
connection.
TRIGGER IN 2
SYNC OUT
BNC Cable
The NetWave is synchronized to the
mains of the PFS 503N32.2
Power OUT
EUT Input / PF2
Appropriate power
cables
The power output of the NetWave
provides the input voltage to the rack. It is
used for harmonics & flicker tests as
mains voltage. As well as PF2 input to the
PFS 503N32.2 for voltage dips.
SENSE
SENSE
In addition, the sense input of the
NetWave can be connected to the rack to
compensate for the voltage drop in the
power cables
