Ametek NetWave 3.1 User Manual

AMETEK CTs NetWave
Model
Power
Requirements
Nominal
current
Inrush
curent
Input connector
Netwave 67.X 400
3x400V ±10%
3PH+PE
160A phase
212A phase
Phoenix HDFKV 95
Netwave 67.X 480
3x480V ±10%
3PH+PE
134A phase
176A phase
Phoenix HDFKV 95
Netwave 90.X 400
3x400V ±10%
3PH+PE
210A phase
318Aphase
Phoenix HDFKV 95
Netwave 90.X 480
3x480V ±10%
3PH+PE
175A phase
265A phase
Phoenix HDFKV 95
Netwave 108.X
400
3x400V ±10%
3PH+PE
252A phase
381A phase
Phoenix HDFKV 95
Netwave 108.X
480
3x480V ±10%
3PH+PE
210A phase
318Aphase
Phoenix HDFKV 95
3.6.6. Galvanic insulation
The galvanic insulation between the power input and power output is depend the NetWave model
different.
No galvanic insulation: NetWave for IEC and Harmonic Flicker application
Model:
1-phase: NetWave 3, NetWave 5, NetWave 7,
3-phase: none
With galvanic insulation: NetWave for Aircraft and Military application
NetWave with the optional IT insulating transformer
Model:
1-phase: NetWave 7.1, NetWave 7.2, NetWave 7.3
3-phase: All models

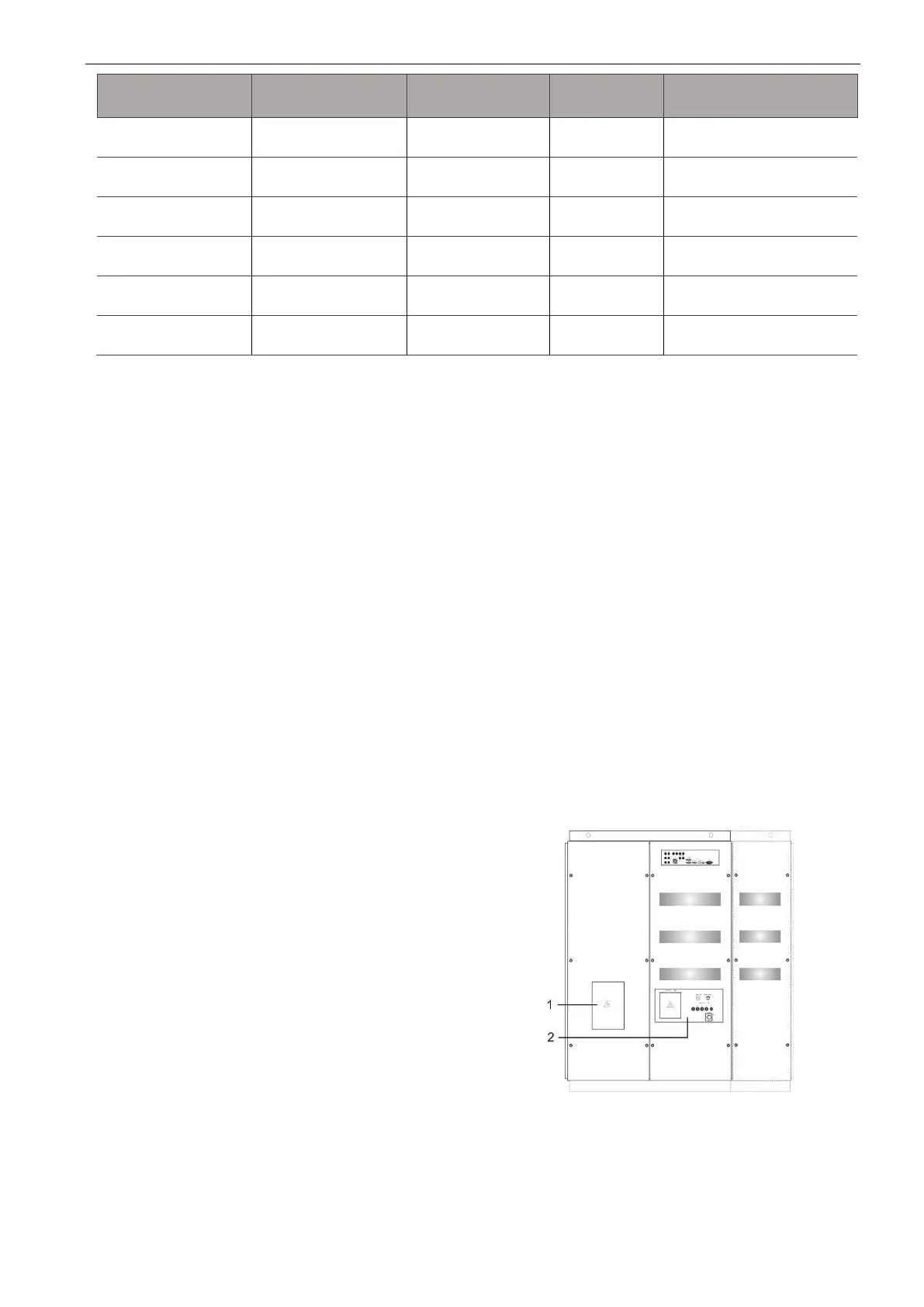

3.6.7. Input Wiring
The input CEE type plug or Screw terminal is located at the rear of the unit. The mains source must have a
current rating equal to or greater than the input circuit breaker / fuses and the input wiring must be sized to
satisfy the applicable electrical codes.
Step 1: Power supply (mains)
Remove the cover for mains input (1) and connect
the mains line to the mains input connectors.
Step 2: EUT power supply
Connect the EUT to the EUT output on:
- Safety lab connectors or
- Disconnect the cover (2) and fix the power
cable.

Ametek NetWave 3.1 Specifications

General

Brand	Ametek
Model	NetWave 3.1
Category	Industrial Equipment
Language	English
