AMETEK CTs NetWave

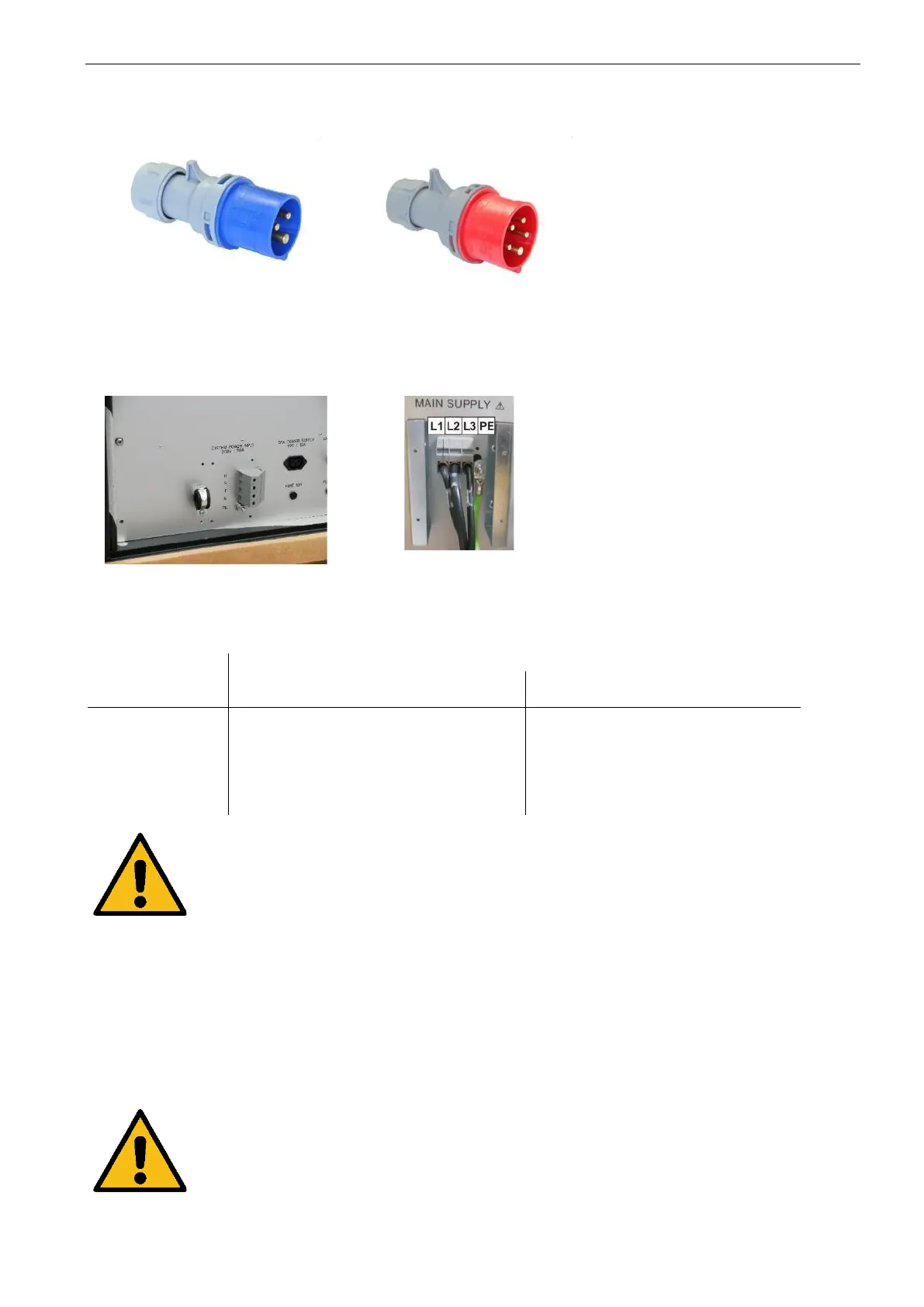

Connectors for mains supply
NetWave 3
NetWave 7.x
Type 223 1-phase
CEE Type 32 A
Screw terminals
NetWave 7.3-208
3- phase NetWave models
Screw terminal 50 A
Screw terminal
Minimum cable cross section (proposed)
For exact dimension refer to the cable manufacturer datasheet
Nominal current
Cable cross section
A
(Group 2)
Flexible mm
2
(Group 1)
Fixed ( one or multiple) mm
2
32
6
10
63
16
25
125
50
70
160
70
95
200
95
120
250
120
an
Caution
Capacitors in the power source may hold a hazardous electrical charge even if the
power source has been disconnected from the mains supply. Allow capacitors to
discharge to a safe voltage before touching exposed pins of mains supply
connectors.
3.6.8. Output Wiring
The output Plugs, are located at the front and rear of the unit. The external sense inputs allow the
power system output voltages to be monitored directly at the load and must be connected either at
the load when the sense is programmed for external.
The external sense input does not have to be connected when Internal Sense is programmed. The
external sense wires are to be connected to the SENSE input on the rear panel and should be run
as a twisted pair for short lengths. Sense leads over one meter long should be run as a twisted
shielded pair.
Note
The output of the NetWave is not isolated from the input line. (NW 3 / 5 / 7)
Floating operation from the input needs an optional insulating transformer. This option
allows if either side (HIGH or LOW) needed, may be grounded.
