AMETEK CTs NetWave

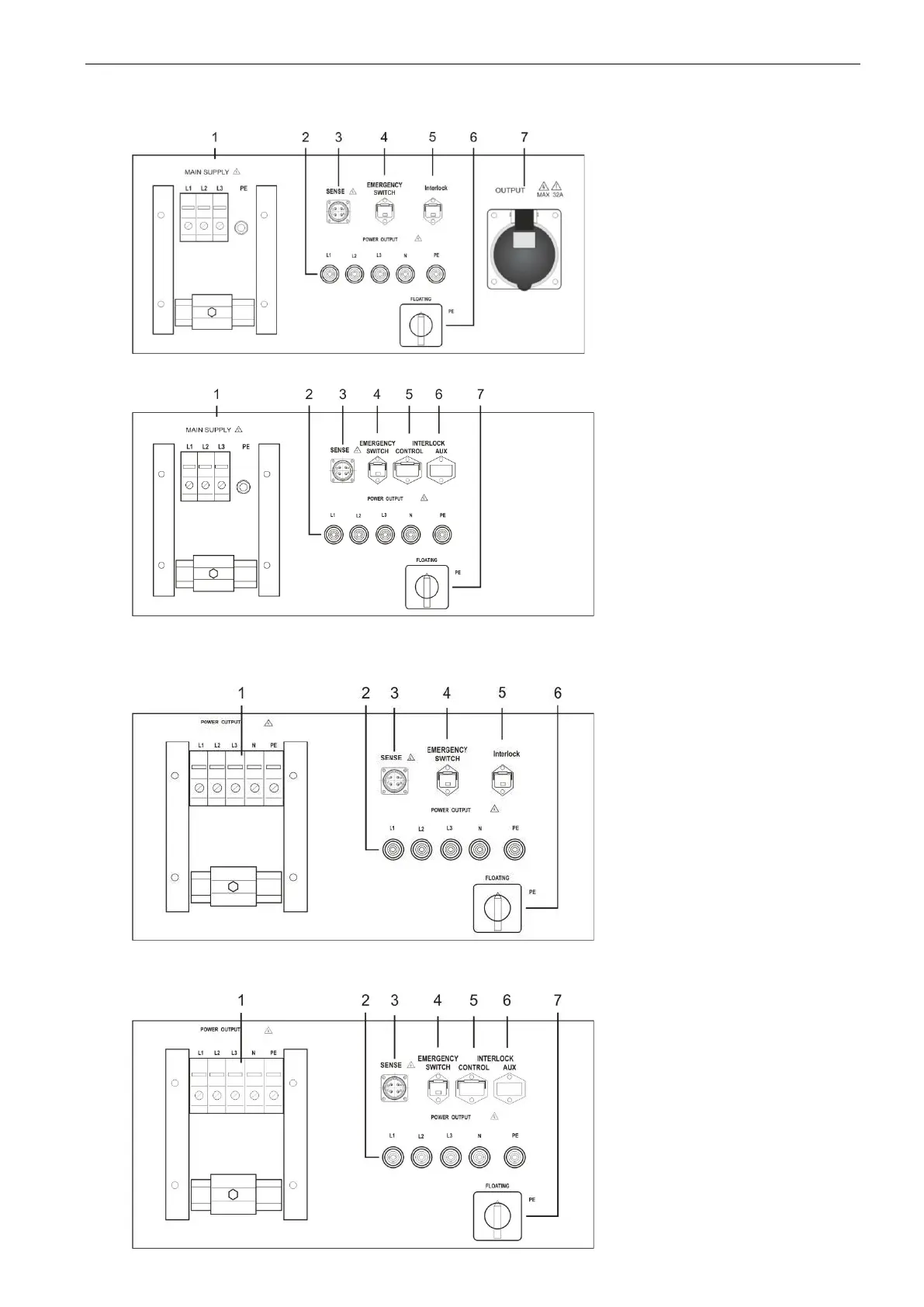

4.3.7. Power panel
NetWave 20.x / 30.x (except .5 models)
1 Mains supply input terminal
2 EUT Power output plug
3 Sense input
4 Emergency switch
5 Interlock
6 Switch Floating / Grounded
7 EUT Power output CEE plug
NetWave 20.5 / 30.5
1 Mains supply input terminal
2 EUT Power output plug
3 Sense input
4 Emergency switch
5 Interlock- control
5 Interlock- AUX
7 Switch Floating / Grounded
NetWave 60.x / 67.x / 90.x / 108.x (except .5 models)
1 EUT Power output terminal
2 EUT Power output plug
3 Sense input
4 Emergency interlock
5 Interlock
6 Switch Floating / Grounded
NetWave 67.5 / 90.5 / 108.5
1 EUT Power output terminal
2 EUT Power output plug
3 Sense input
4 Emergency interlock
5 Interlock – control
6 Interlock - AUX
7 Switch Floating / Grounded
