AMETEK CTs NetWave

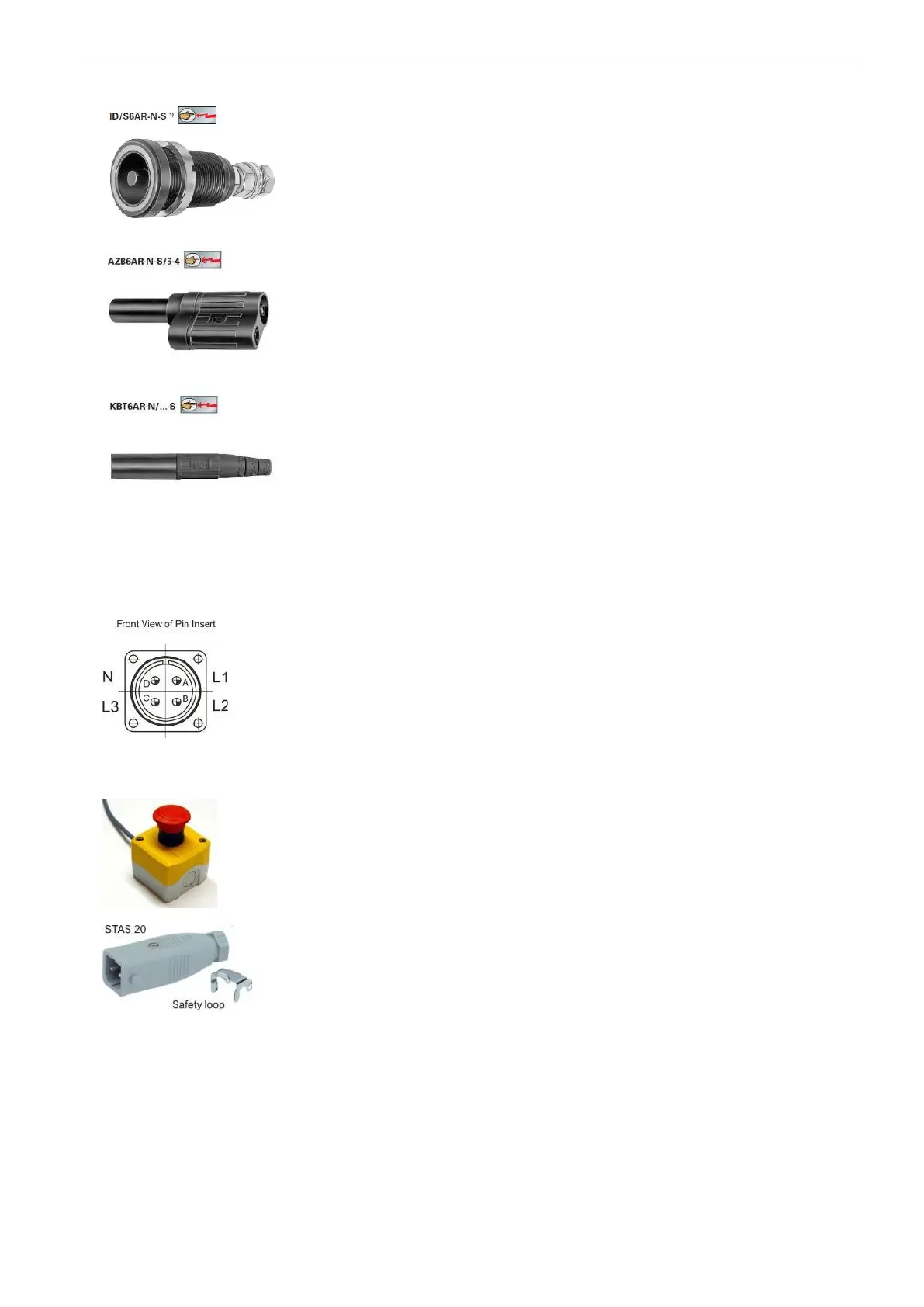

Test supply output Safety labor plugs 6 mm
Safety flush-mounting plugs ID/S6AR-N-S with
snap-in lock and threaded stud are insulated plugs designed for
flush mounting in housings and panels. The plugs are designed
to mate with sockets KBT6AR-N. The resulting plug connections
are securable by means of snap-in lock. Correspond socket:
Multi Contact part : Type KBT6AR-N/...-S
Safety branch adapter AZB6AR-N-S/6-4
Safety branch adapter with snap-in lock and
ergonomic PA/TPE insulation that grips well. Mating
plugs with suitable locking devices can be snap-
locked into the socket. With one pick-off socket Ø
6mm and two safety sockets Ø 4 mm for voltage tests
up to 600 V, CATIII.
Safety sockets KBT6AR-N/...-S with snap-in lock and
crimp connection
Model KBT6AR-N/...-S safety sockets are sockets
with locking devices and for crimping onto highly
flexible Cu conductor with cross-sections of 10 mm
2
,
16 mm
2
or 25 mm
2
.
This safety socket is suitable for mating with either
safety flush-mounting plugs or plugs model KST6AR-
N. Used together with a flush-mounting plug it acts as
an appliance connector and with plugs as a coupler.
Sense input (available on models with serial number P1817220350 and above)
The sense is switchable to internal or external
The sense plugs are located at the rear of the unit. The external sense
allows monitoring directly at the load. The sense must be set to external.
Connection: Pin Phase
A L1
B L2
C L3
D N
Connection of the emergency stop button. When
operated, the input main circuit breaker will be
opened and the system de-energized.
A voltage of 24Vac is present at the connector.
Connector: Hirschmann STAS 20 with safety loop
Max. AC : 250 V / 16 A
