AMETEK CTs NetWave

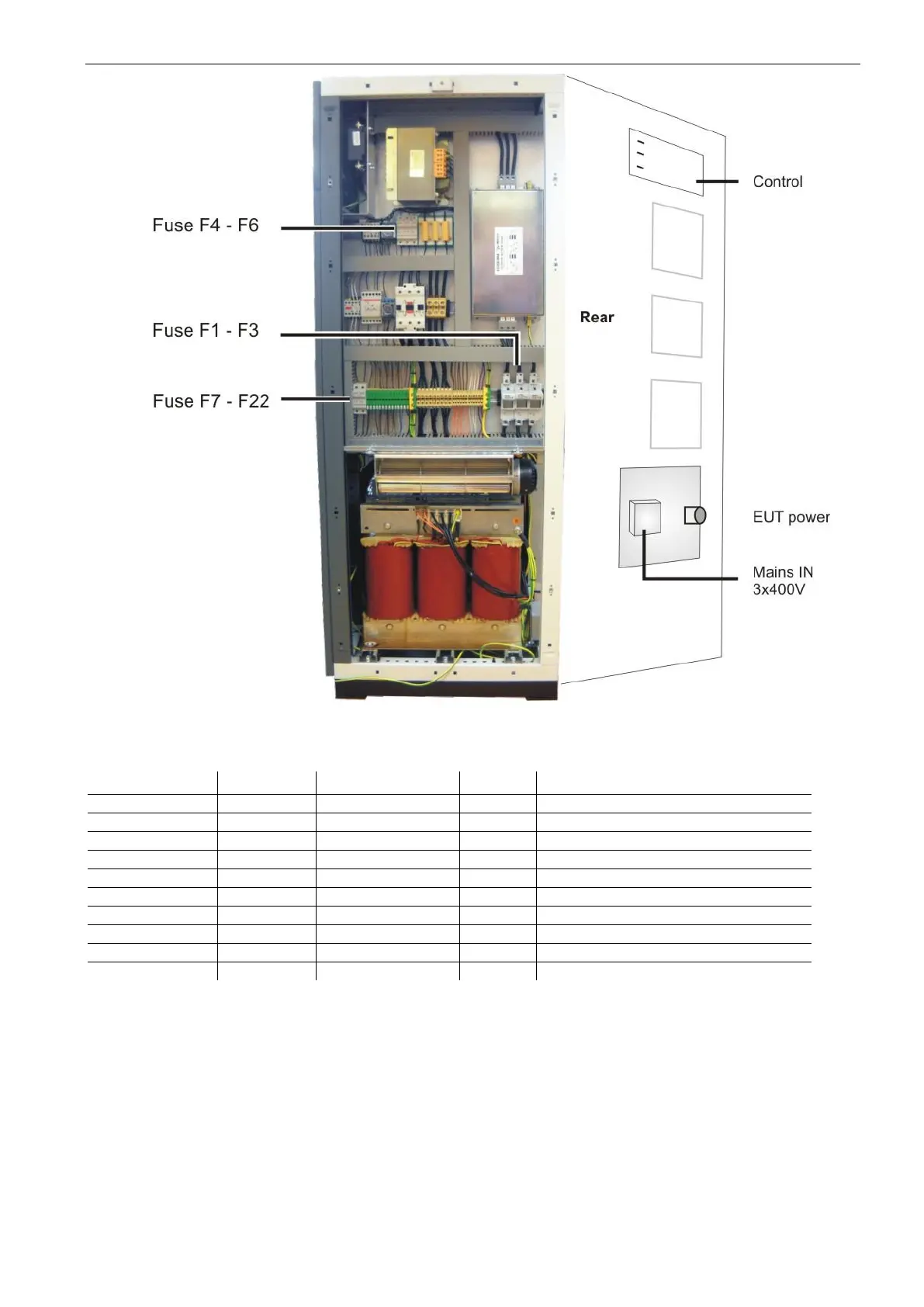

Fuse list
Number
Current [A]
Dimension [mm]
Type
Description
F1 F3
80
22x58
gG
General Input Line
F4 F6
1
10x38
aM
Charge resistor
F7 F8
5
10x38
aM
Input Auxiliary Transformer
F9 - F10
5
5x20
WGT
Output Auxiliary Transformer
F11 F12
3.15
5x20
WGT
NetWave Controller
F13 F14
2.5
5x20
WGT
Auxiliary Supply Inverter Phase R
F15 F16
2.5
5x20
WGT
Auxiliary Supply Inverter Phase S
F17 F18
2.5
5x20
WGT
Auxiliary Supply Inverter Phase T
F19 F20
2.5
5x20
WGT
Ventilation Fan
F21 F22
1
5x20
WGT
Safety Circuit
The layout may be different depends the model design
