4.4.2. NetWave 60.x / 67.x

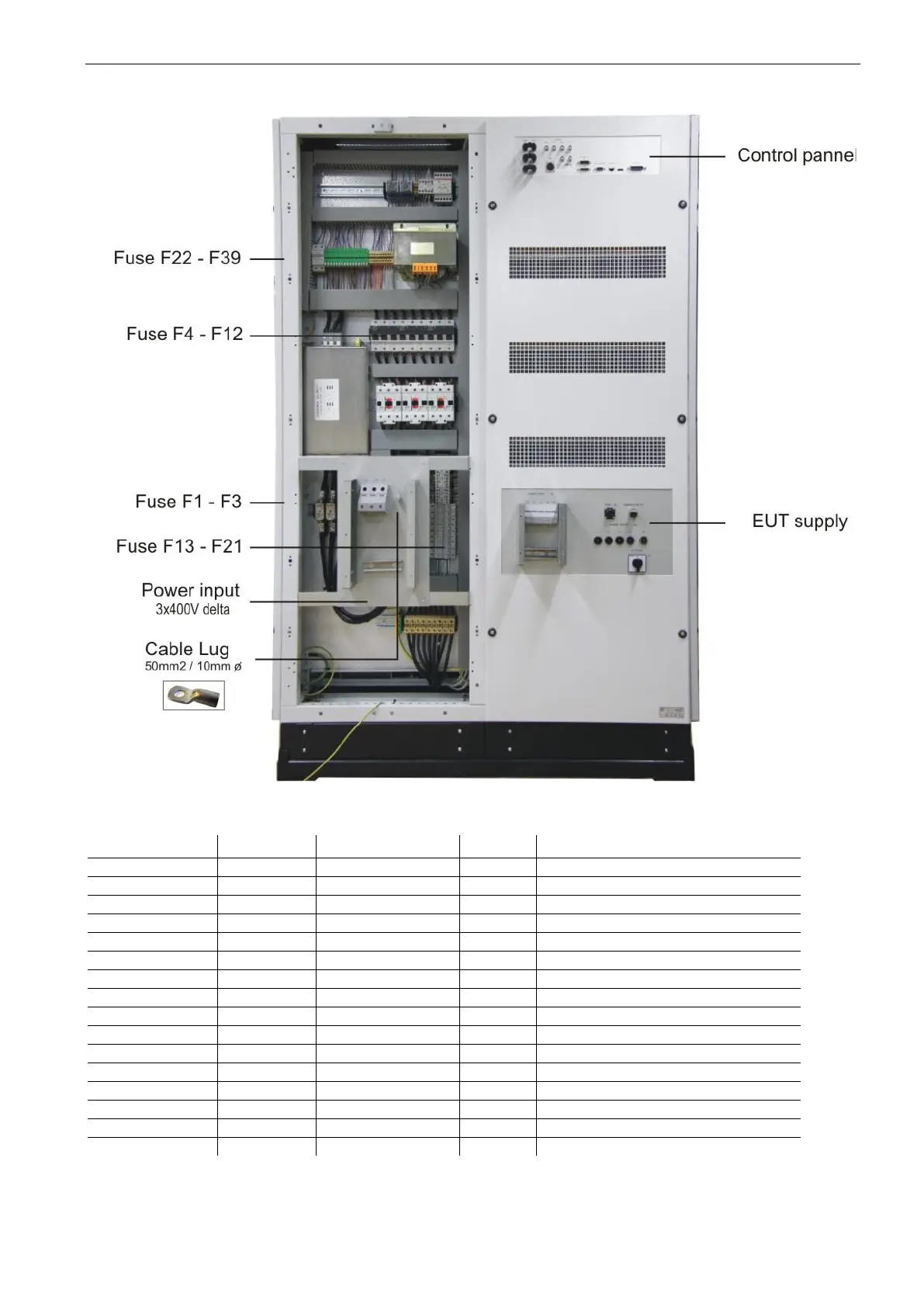

Fuse list
Number
Current [A]
Dimension [mm]
Type
Description
F1 - F3
160
Blade
NH00
General Input Line
F4 - F6
50
14x51
gG
Line Inverter Phase R
F7 - F9
50
14x51
gG
Line Inverter Phase S
F10 - F12
50
14x51
gG
Line Inverter Phase T
F13 - F15
1
10x38
aM
Charge resistor Phase R
F16 - F18
1
10x38
aM
Charge resistor Phase S
F19 - F21
1
10x38
aM
Charge resistor Phase T
F22 - F23
4
10x38
aM
Input Auxiliary Transformer
F24 - F25
6.3
5x20
WGT
Output Auxiliary Transformer
F26 - F27
3.15
5x20
WGT
NetWave Controller
F28 - F29
2.5
5x20
WGT
Auxiliary Supply Inverter Phase R
F30 - F31
2.5
5x20
WGT
Auxiliary Supply Inverter Phase S
F32 - F33
2.5
5x20
WGT
Auxiliary Supply Inverter Phase T
F34 - F35
2.5
5x20
WGT
Ventilation Fan
F36 - F37
1
5x20
WGT
Safety Circuit
F38 - F39
not used
5x20
WGT
Optional EM Test Equipment
The layout may be different depends the model design
