Ametek NetWave 3.1 - Page 51

AMETEK CTs NetWave

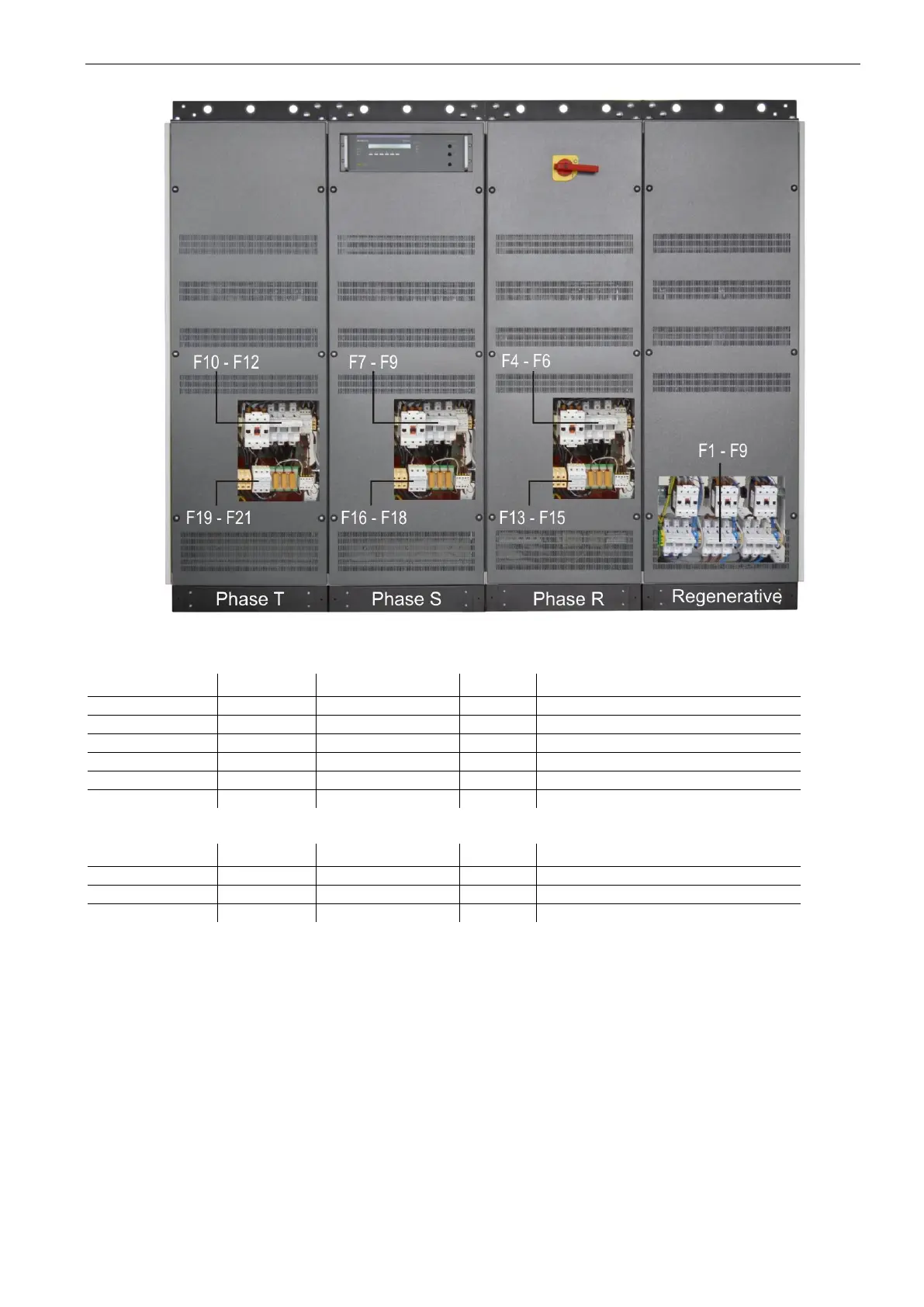

Front side Fuse list
Number
Current [A]
Dimension [mm]
Type
Description
F4 - F6
100
14x51
gG
Line Inverter Phase R
F7 - F9
100
14x51
gG
Line Inverter Phase S
F10 - F12
100
14x51
gG
Line Inverter Phase T
F13 - F15
1
10x38
aM
Charge resistor Phase R
F16 - F18
1
10x38
aM
Charge resistor Phase S
F19 - F21
1
10x38
aM
Charge resistor Phase T
Regenerative Fuse list (if with related Option)
Number
Current [A]
Dimension [mm]
Type
Description
F1 – F3
100
14x51
gG
Line Inverter Phase T
F4 – F6
100
14x51
gG
Line Inverter Phase S
F7 – F9
100
14x51
gG
Line Inverter Phase R
Note: The layout might slightly vary depending of the model.
