AMETEK CTs NetWave

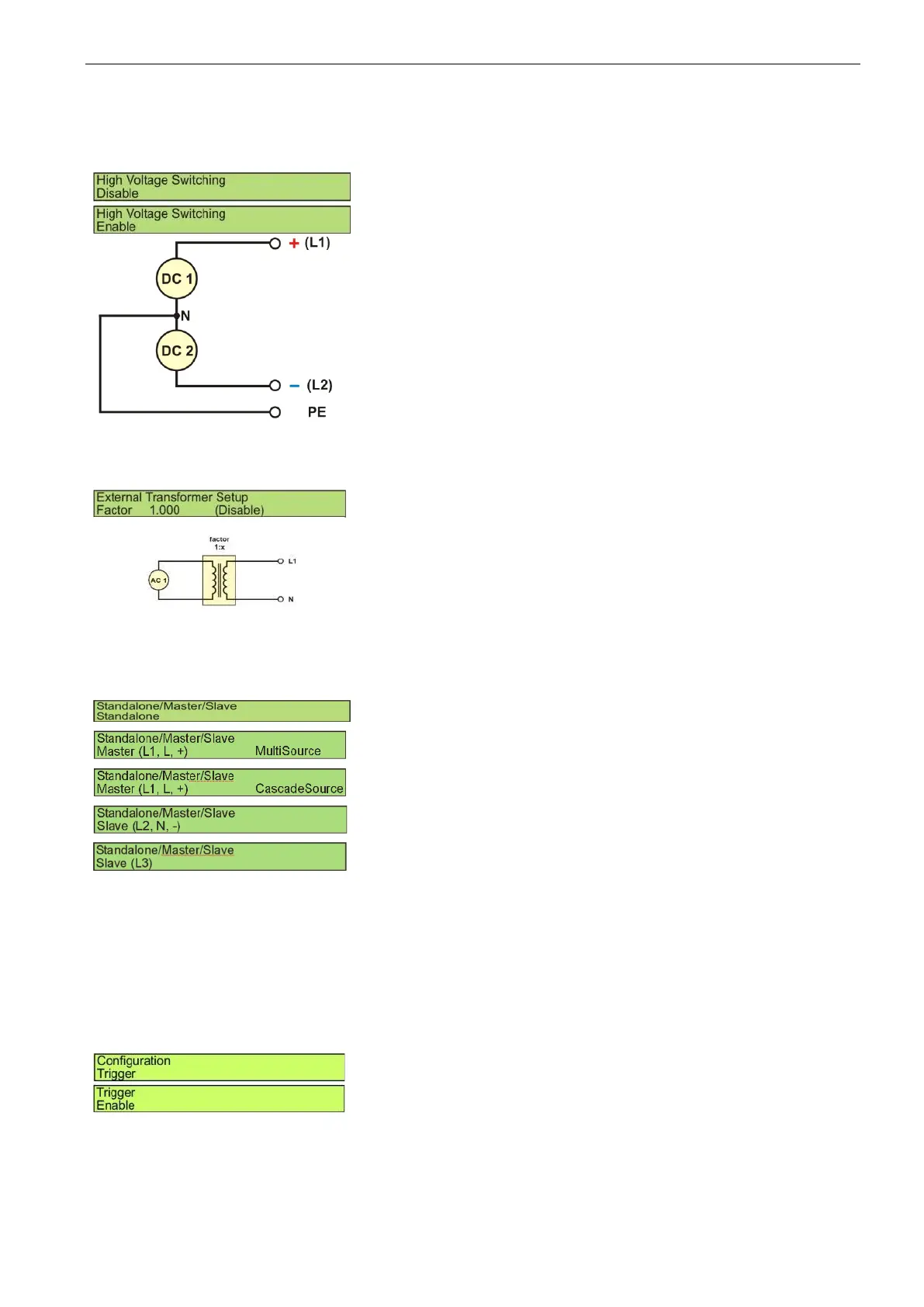

5.2.11. High Voltage Switching (Opt-3 DC-EVR)
With this option it is possible to double the DC voltage range by using two phases simultaneously. The phase 1
is used for +DC and the phase 2 is used for –DC pole. The using of this function is only supported by net.control
software.
Enable: The High Voltage Switching is disabled. Please connect
between L1 and N.
Disable: The High Voltage Switching is enabled. Please connect
between L1 and L2.
5.2.12. External Transformer
If an external output transformer is connected, this factor defines the multiplier for set the output voltage.
Function Disabled : Default setting ( Factor = 1.000)
Enabled: Set factor is used to calculate the
EUT test voltage.
Factor: 0.300 to 3.000 step resolution 0.001
Example: a step-up transformer with a transformation ratio
of 2.000 is used to double the output voltage. In this case
a factor of 2.000 must be set.
Default : 1.000 (Disabled)
5.2.13. Standalone / Master / Slave
Standalone: The NetWave works as standalone device.
Master (L1): The NetWave works as a Master in parallel mode and
is phase L1. The controller controls the connected
Slave NetWave(s).
The system could be “MultiSource” or
“CascadeSource”
Slave (Lx): The NetWave works as a Slave in parallel mode and
is phase L2 or L3 (depends on the installed firmware).
The controller of the Master NetWave controls the
slave power stages directly. The controller of the
Slave NetWaves is inactive.
See chapter 6.3 for instructions how to change from Master to Slave
operation.
5.2.14. Trigger
Setting of the trigger status for “Trigger IN” and “Trigger OUT”. The trigger can be settled in the software.
Enable: Function of Trigger IN is enabled.
- Trigger IN 1, IN 2
Default : Enabled
Disable: Function of Trigger IN is disabled.
- Trigger IN 1, IN 2
