Ametek NetWave 3.1 User Manual

AMETEK CTs NetWave

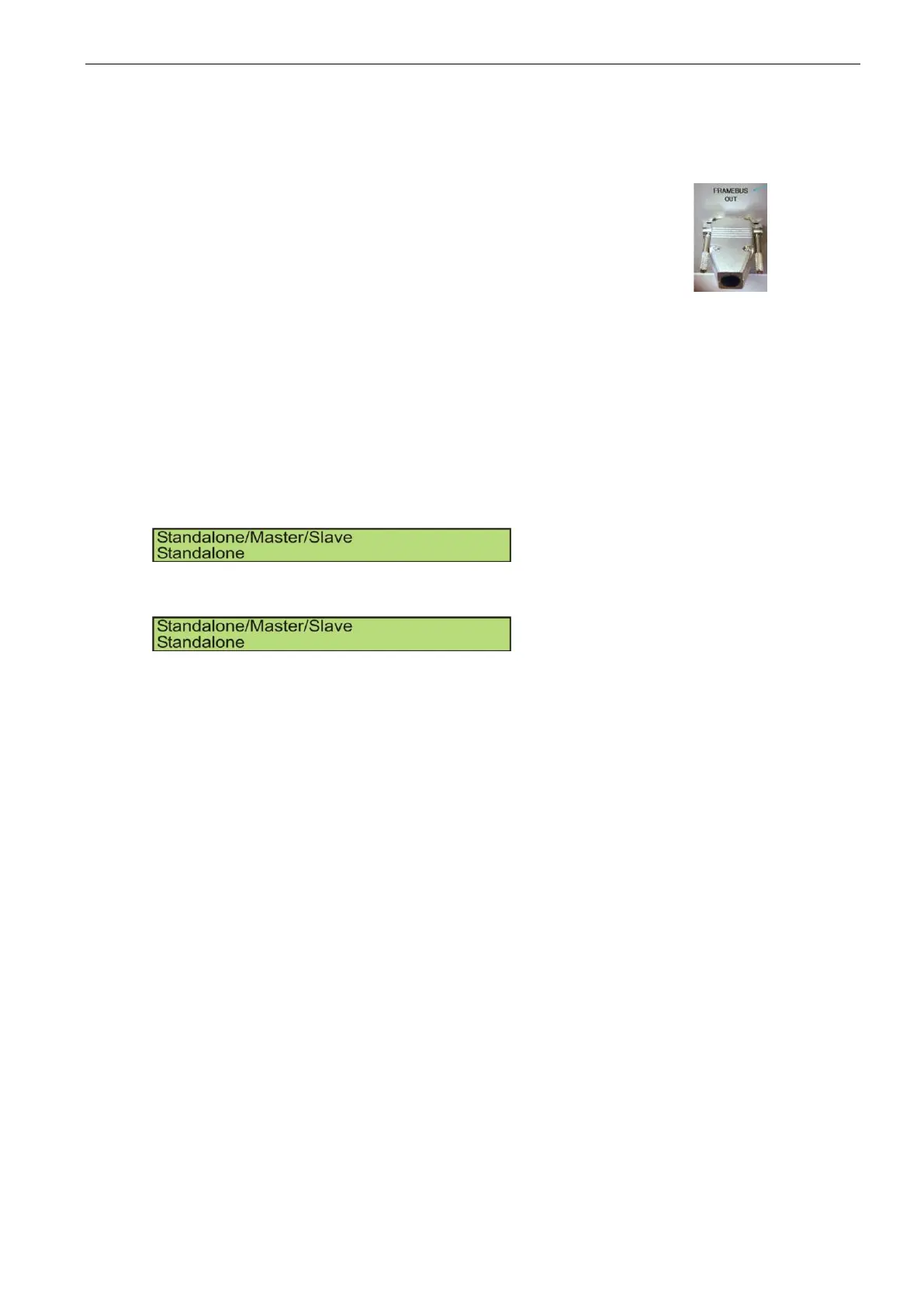

The following steps are required to split off from NetWave Cascade Source to single NetWaves :
- The Framebus OUT of the NetWave Master (L) is not connected.
- The Framebus OUT of the NetWave Slave (N) is not connected.
- The Framebus IN of the NetWave Master (L,+), NetWave Slave (N,-)
muss be terminated with a Framebus Terminator.
- The Signal OUT1 of the NetWave Slave (N,-) is connected
to the Signal IN2 of the NetWave Slave (N,-).
- Switch the PE at NetWave Slave (N, -) to ground.
- Each NetWave is supplied.
- The PC computer connected to the each NetWave.
- The NetWave Master (L1) is setup in the menu “Standalone/Master/Slave” to the mode “Standalone”.
The NetWave works as standalone device.
- The NetWave Slave (L2) is setup in the menu “Standalone/Master/Slave” to the mode “Standalone”.
The NetWave works as standalone device.
- The EUT is connected for Phase L or + to the NetWave Master (L, +)
and for Phase N or - to the NetWave Slave (N,-).
The PE from each NetWave could be connected.
