10 Amico Mobility Solutions Corporation
Technical Specifications for Power Traverse
Lift Raise
Traverse
Direction 2
Lift Lower
Rotate Turntable/
Move Gantry
Direction 1
Rotate Turntable/
Move Gantry
Direction 2
Traverse
Direction 1

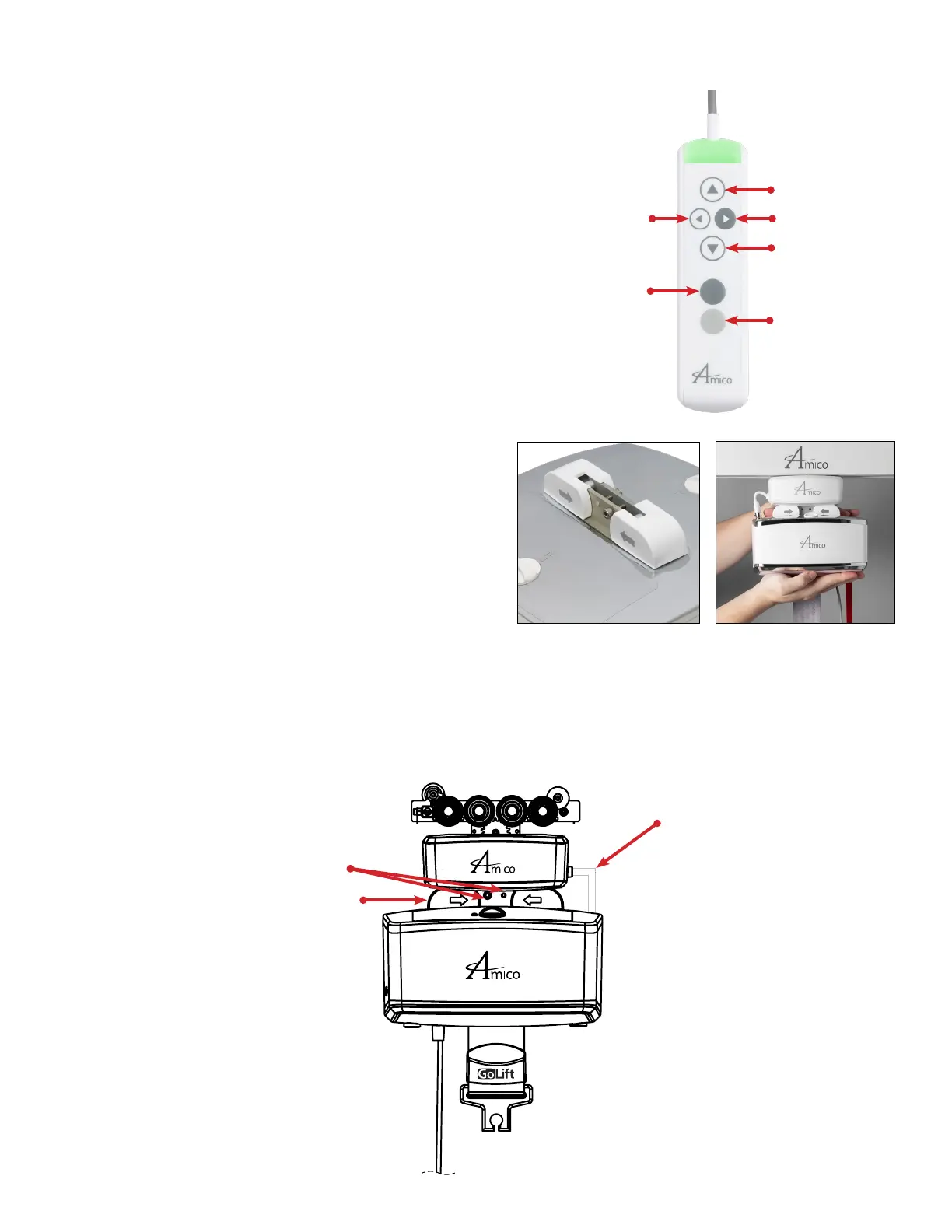

HOW TO OPERATE
All functions are operated through the lift hand control. If
power turn table or power gantry is not available, the lift
will still register the button, but nothing will happen.
HOW TO CONNECT TO THE LIFT
The two locking screws must be inserted into the top
of the lift for additional security against tampering. The
trolley cannot be detached or attached when the screws
are in place.
To attach or remove the lift, remove the weight of the lift
and squeeze the two buttons located on the top. This will
release the lift from the trolley latches if it is quick release.
Latch Locking Screws: Remove the screws before attaching the Trolley. Screws must be attached to safely lock the
latches in place.
Connecting Wire: Ensure that the wire is connected when installing the lift and removed before detaching the lift
from the Trolley. Ensure that the lift is clipped in with the wire side of the Trolley on the side of the lift with the open
connection as shown.
Connecting Wire
Latch Locking Screws
Quick Release System
To Next Page
