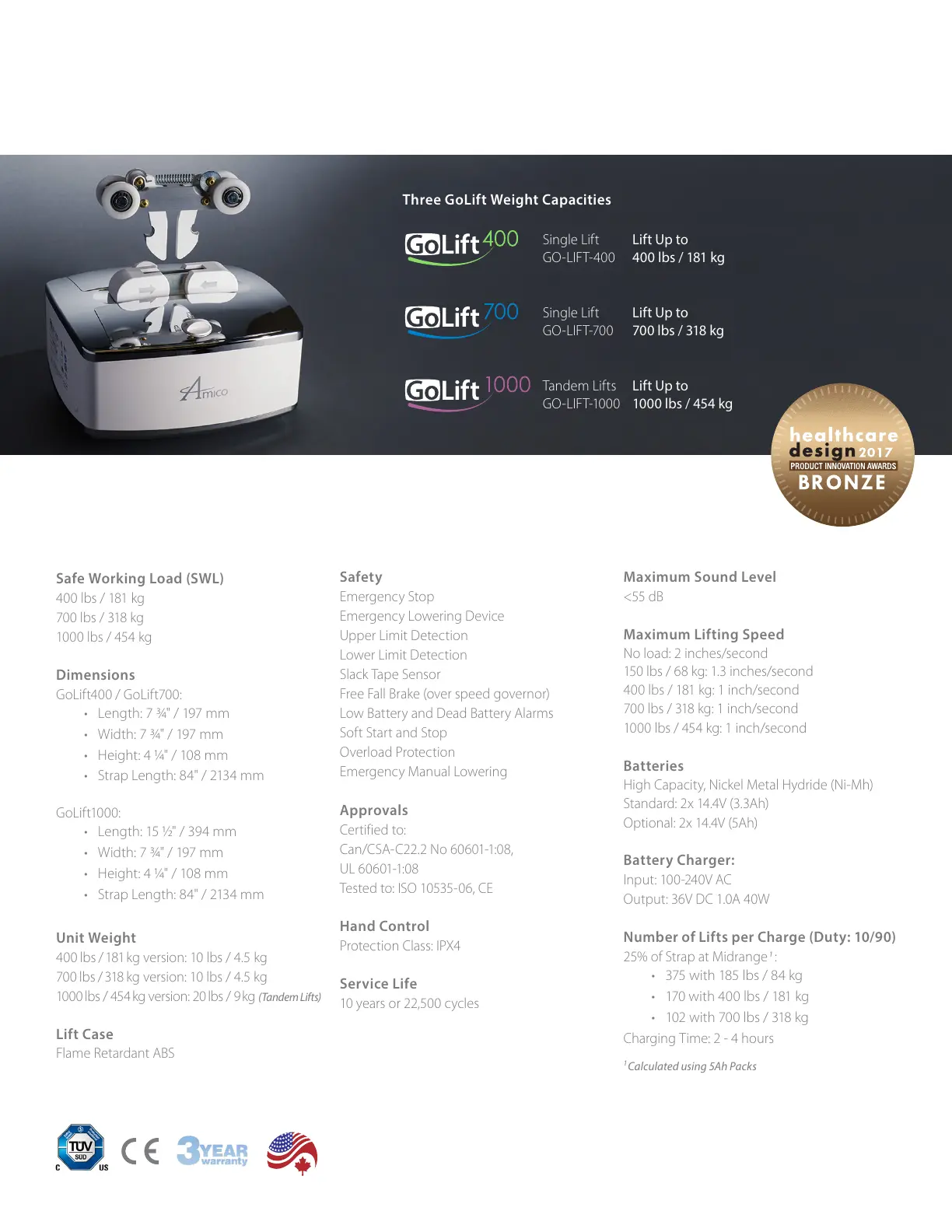

Technical Specifications for Amico GoLift
M
A
D
E
I
N
N
O
R
T
H
A
M
E
R
I
C
A
Safe Working Load (SWL)
400 lbs / 181 kg
700 lbs / 318 kg
1000 lbs / 454 kg
Dimensions
GoLift400 / GoLift700:
• Length: 7 ¾" / 197 mm
• Width: 7 ¾" / 197 mm
• Height: 4 ¼" / 108 mm
• Strap Length: 84" / 2134 mm
GoLift1000:
• Length: 15 ½" / 394 mm
• Width: 7 ¾" / 197 mm
• Height: 4 ¼" / 108 mm
• Strap Length: 84" / 2134 mm
Unit Weight
400 lbs / 181 kg version: 10 lbs / 4.5 kg
700 lbs / 318 kg version: 10 lbs / 4.5 kg
1000 lbs / 454 kg version: 20 lbs / 9 kg
(Tandem Lifts)
Lift Case
Flame Retardant ABS
Safety
Emergency Stop
Emergency Lowering Device
Upper Limit Detection
Lower Limit Detection
Slack Tape Sensor
Free Fall Brake (over speed governor)
Low Battery and Dead Battery Alarms
Soft Start and Stop
Overload Protection
Emergency Manual Lowering
Approvals
Certified to:
Can/CSA-C22.2 No 60601-1:08,
UL 60601-1:08
Tested to: ISO 10535-06, CE
Hand Control
Protection Class: IPX4
Service Life
10 years or 22,500 cycles
Maximum Sound Level
<55 dB
Maximum Lifting Speed
No load: 2 inches/second
150 lbs / 68 kg: 1.3 inches/second
400 lbs / 181 kg: 1 inch/second
700 lbs / 318 kg: 1 inch/second
1000 lbs / 454 kg: 1 inch/second
Batteries
High Capacity, Nickel Metal Hydride (Ni-Mh)
Standard: 2x 14.4V (3.3Ah)
Optional: 2x 14.4V (5Ah)
Battery Charger:
Input: 100-240V AC
Output: 36V DC 1.0A 40W
Number of Lifts per Charge (Duty: 10/90)
25% of Strap at Midrange
1
:
• 375 with 185 lbs / 84 kg
• 170 with 400 lbs / 181 kg
• 102 with 700 lbs / 318 kg
Charging Time: 2 - 4 hours
1
Calculated using 5Ah Packs
Specifications & Listings
Single Lift
GO-LIFT-400
Lift Up to
400 lbs / 181 kg
Single Lift
GO-LIFT-700
Lift Up to
700 lbs / 318 kg
Tandem Lifts
GO-LIFT-1000
Lift Up to
1000 lbs / 454 kg
Three GoLift Weight Capacities
