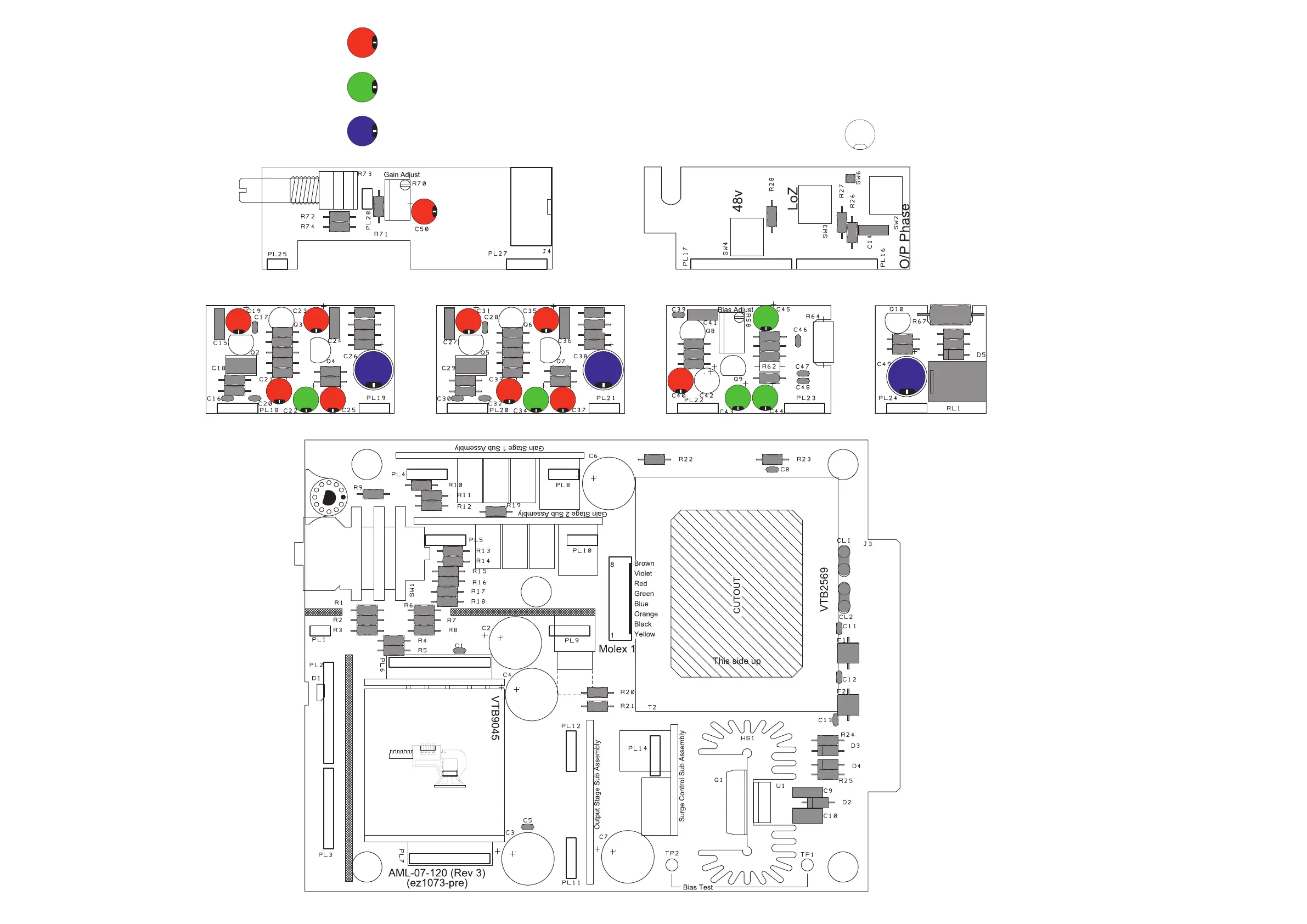

Electrolytic
Capacitors
Not orientations of positive terminals
differ
C22, C34, C43, C44 & C45 = 100uF / 25v (5)
C19, C21, C23, C25, C31, C33, C35, C37, C40 & C50 = 22uF / 63v (10)
C26, C38 & C49 = 470uF / 16v (3)
C42 = Omit (nothing fitted) (1)
