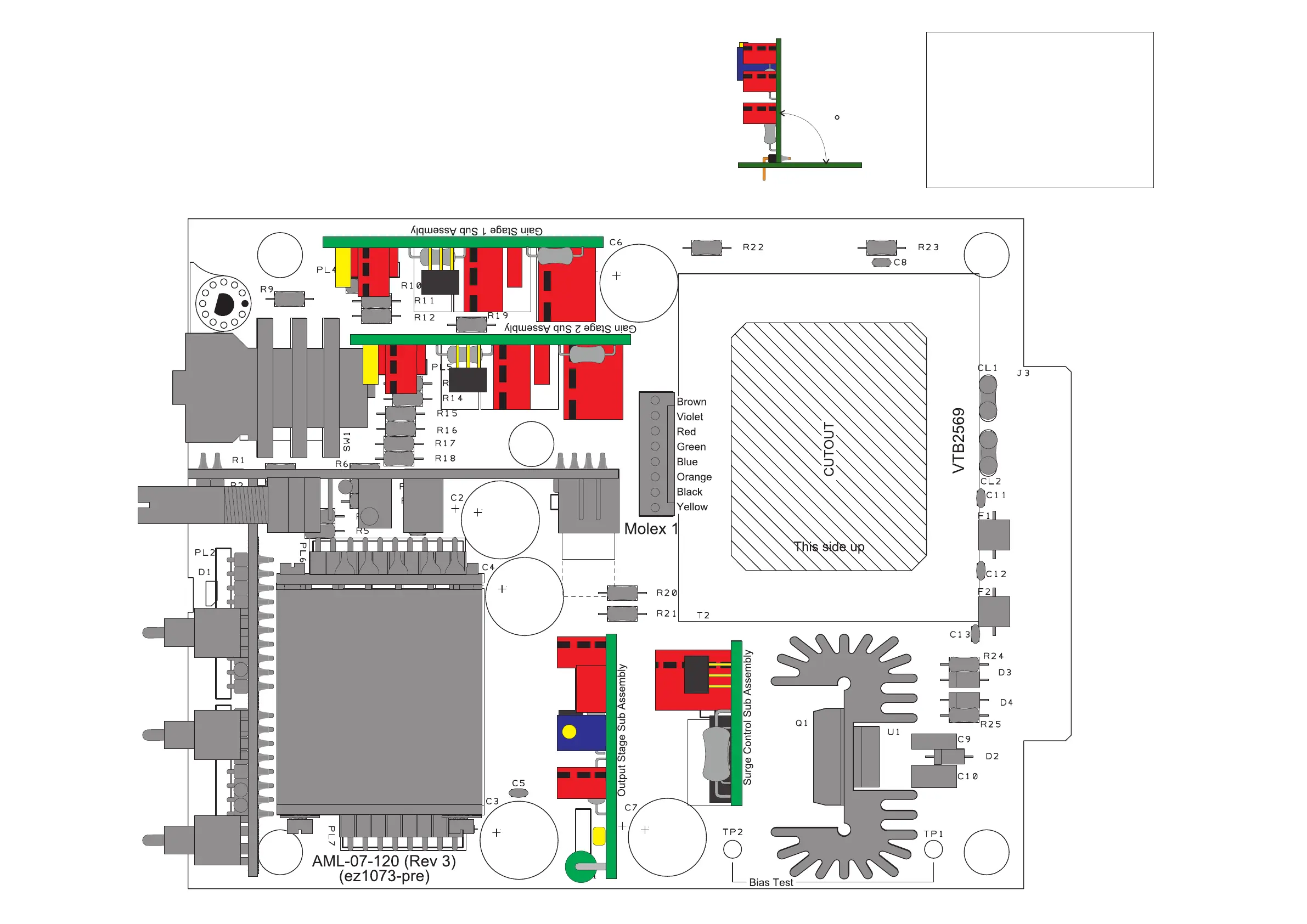

Amplifiers and surge

control PCB Fitting

Insert the amplifiers

and surge control PCBs

into main PCB

ensuring that it is

perpendicular and

solder in place.

90

Assembly Tip:

Gain stage 1 & 2 are identical

however they have different

component idents.

PL18 & PL19 are on Gain Stage 1

PL20 & PL21 are on Gain Stage 2
