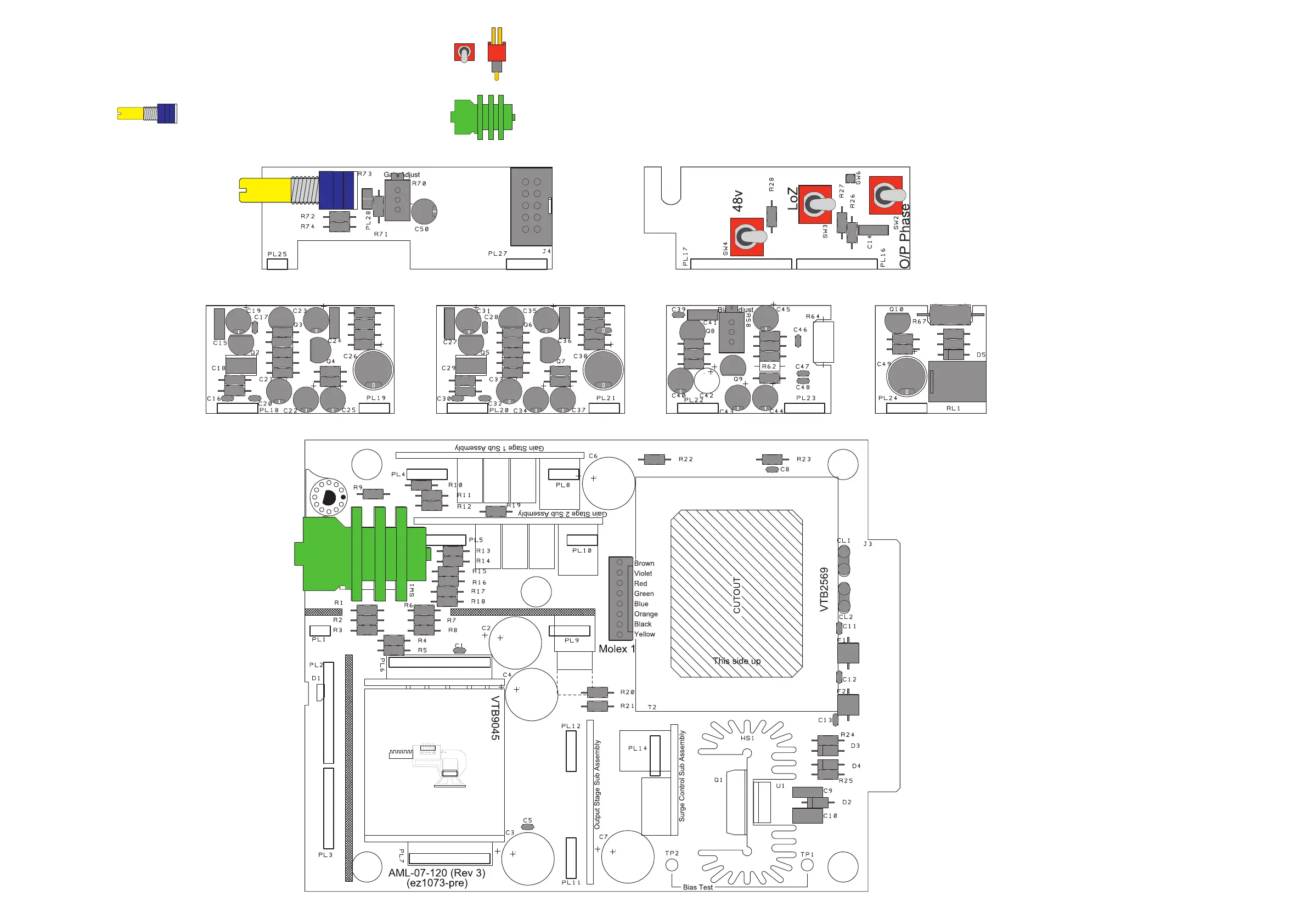

Pot and switches
SW1 = GR-03-001 (1) - 12 position, 1 pole, 3 gang
SW2, SW3, SW4 = 2 Position DPDT (on-on) (3)
Important: The toggle switches are
surprisingly sensitive to heat... solder
one pin on each switch and then
allow to cool before continuing.
Make sure that the toggle switches are
seated perfectly so that they are
perpendicular to the PCB before soldering
the rest of the pins.
R73 = 2 gang 10kA (1)
