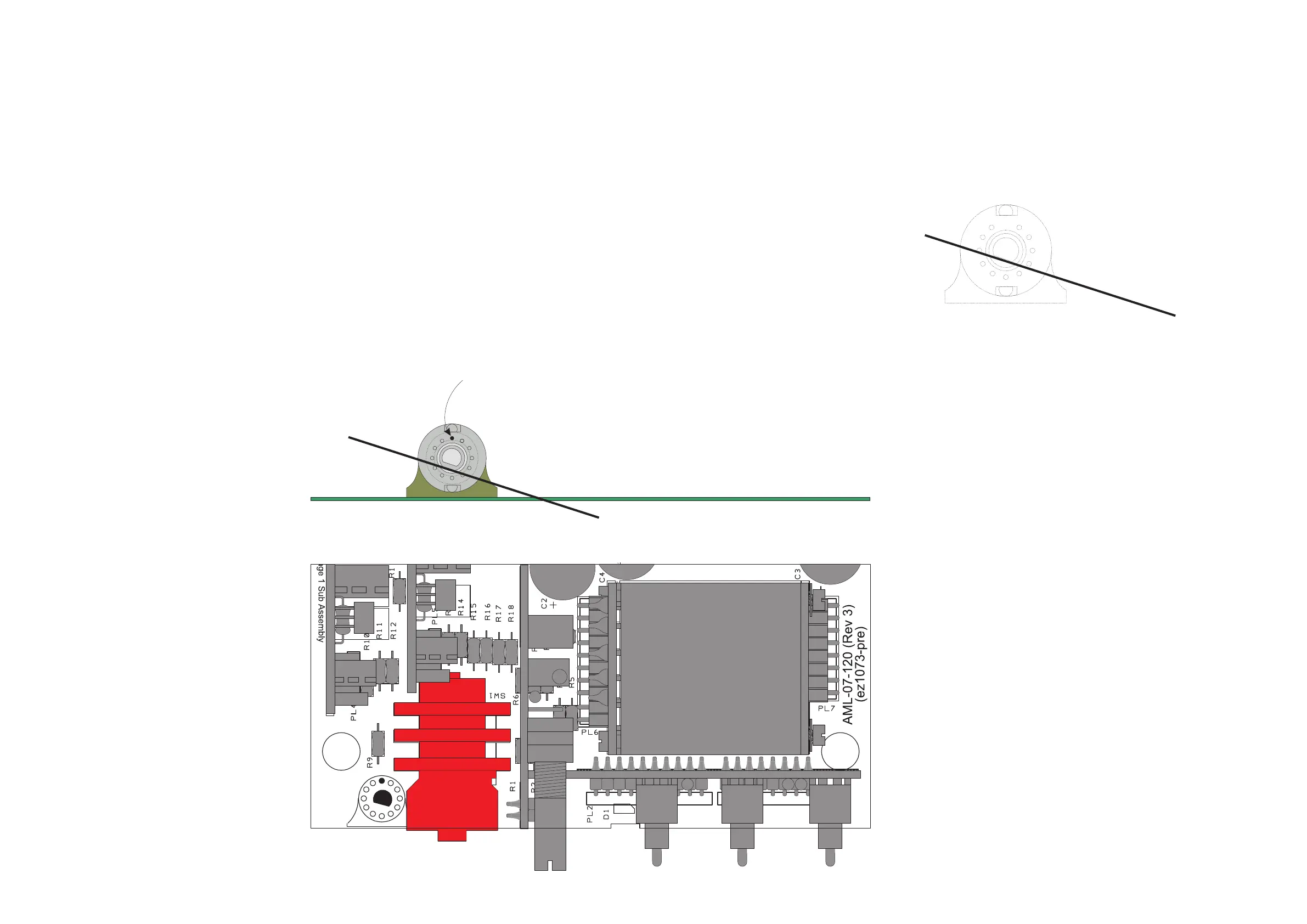

Rotary Switch Adjustment Pin
Fit pin in position shown then apply the self adhesive
silver washer over the pin holes to stop the pin coming out.
**** Make sure the spindle is in the position shown before fitting pins ****
[0 clicks up from factory setting]
[Discard the nut and shakeproof washer].
Flat is at this angle
Fit pin at
“12 O’clock”
position
