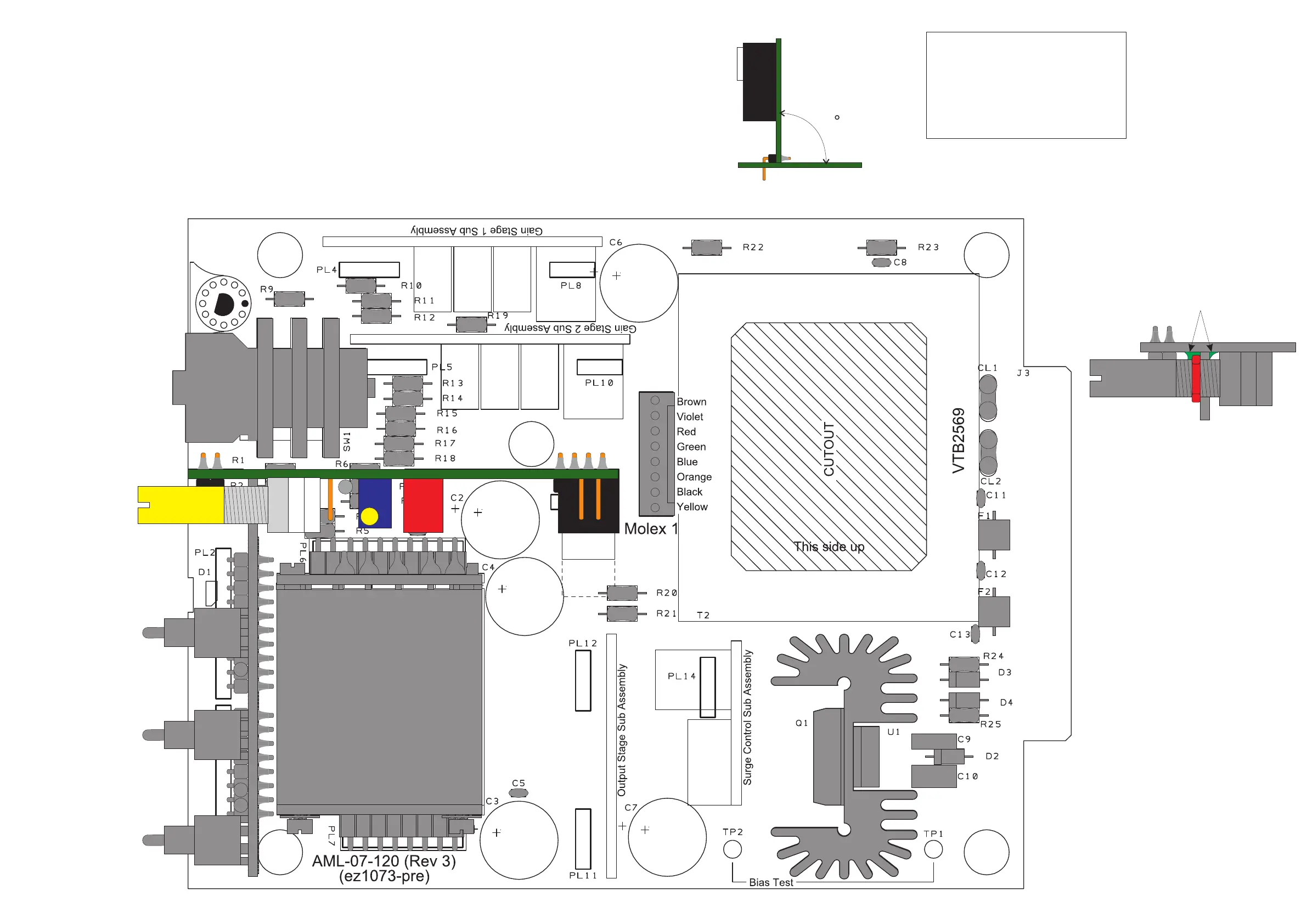

Trim Pot PCB Fitting
Insert Trim Pot PCB
into main PCB
ensuring that it is
perpendicular and
solder in place.
90
Assembly Tip:
The bush of the pot slots
into the top of the switch
PCB
After Soldering the trim pot PCB to
the main PCB, fit the pot nut
until it JUST TOUCHES the front of
the switch pcb, the apply solder
to each side of the switch PCB
where it meets the trim pot PCB
Nut
Solder here
To Next Page
