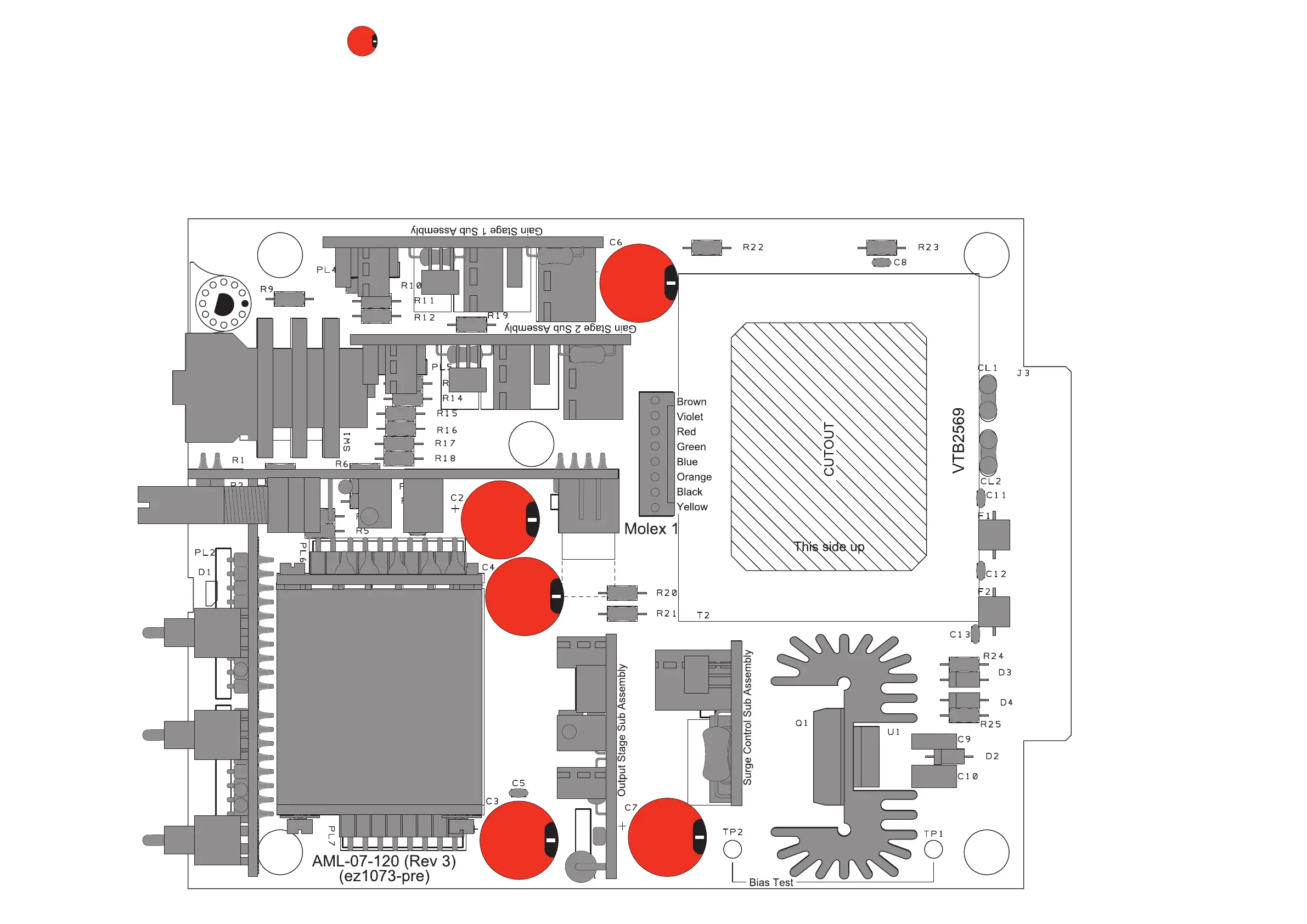

Large
Electrolytic
Capacitors
All positive terminals towards left
C2, C3, C4, C6 & C7= 1000uF / 35v (5)
